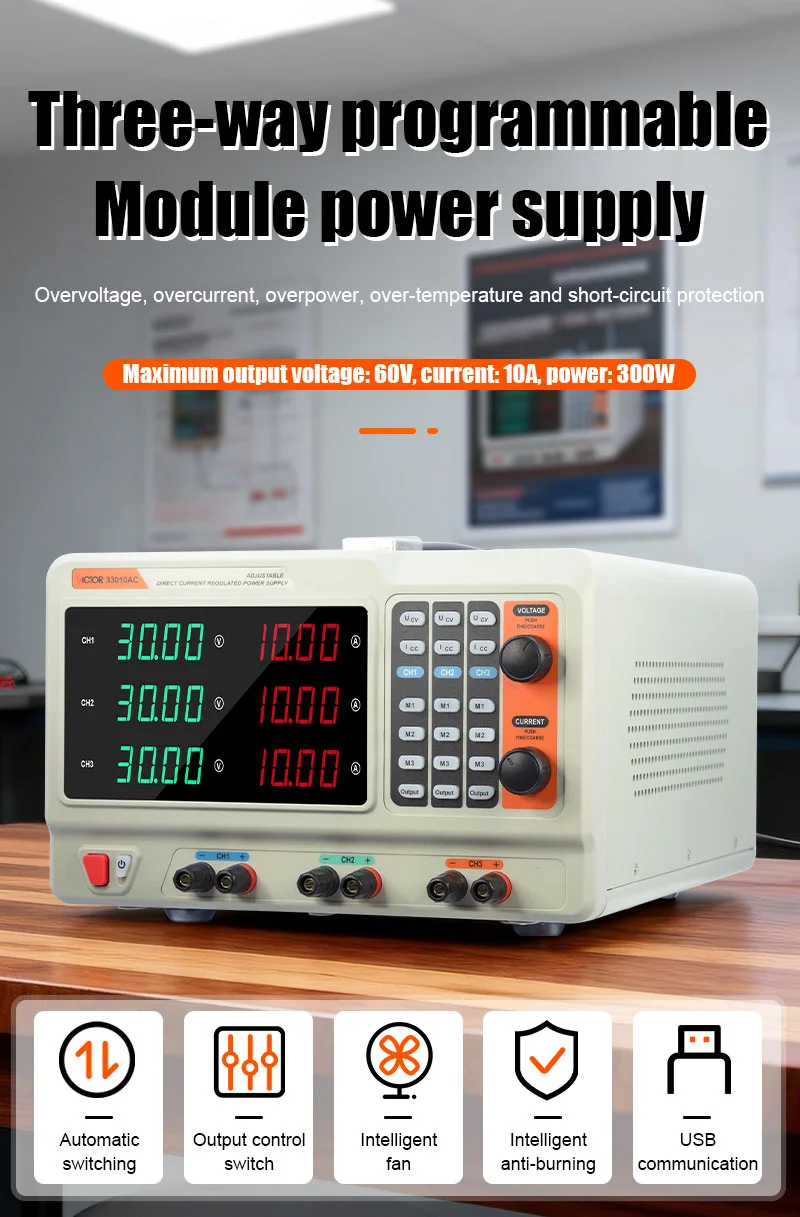

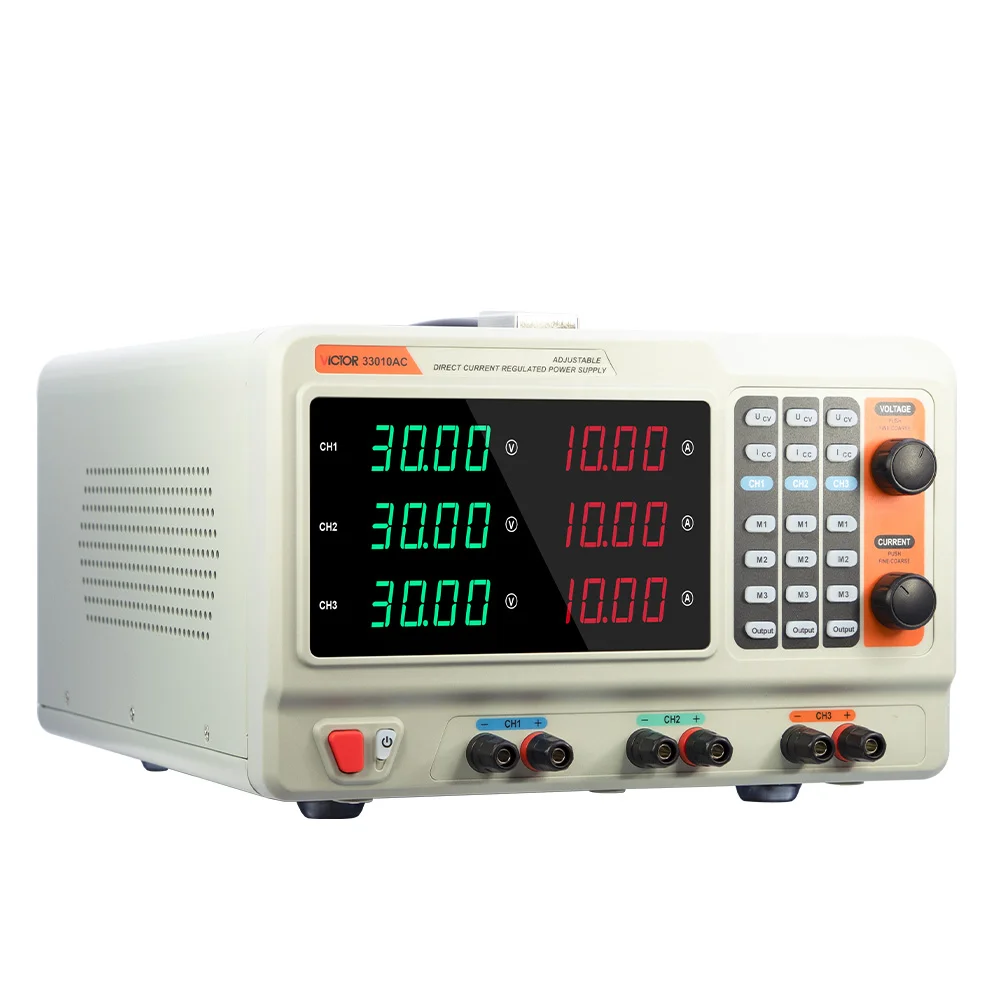

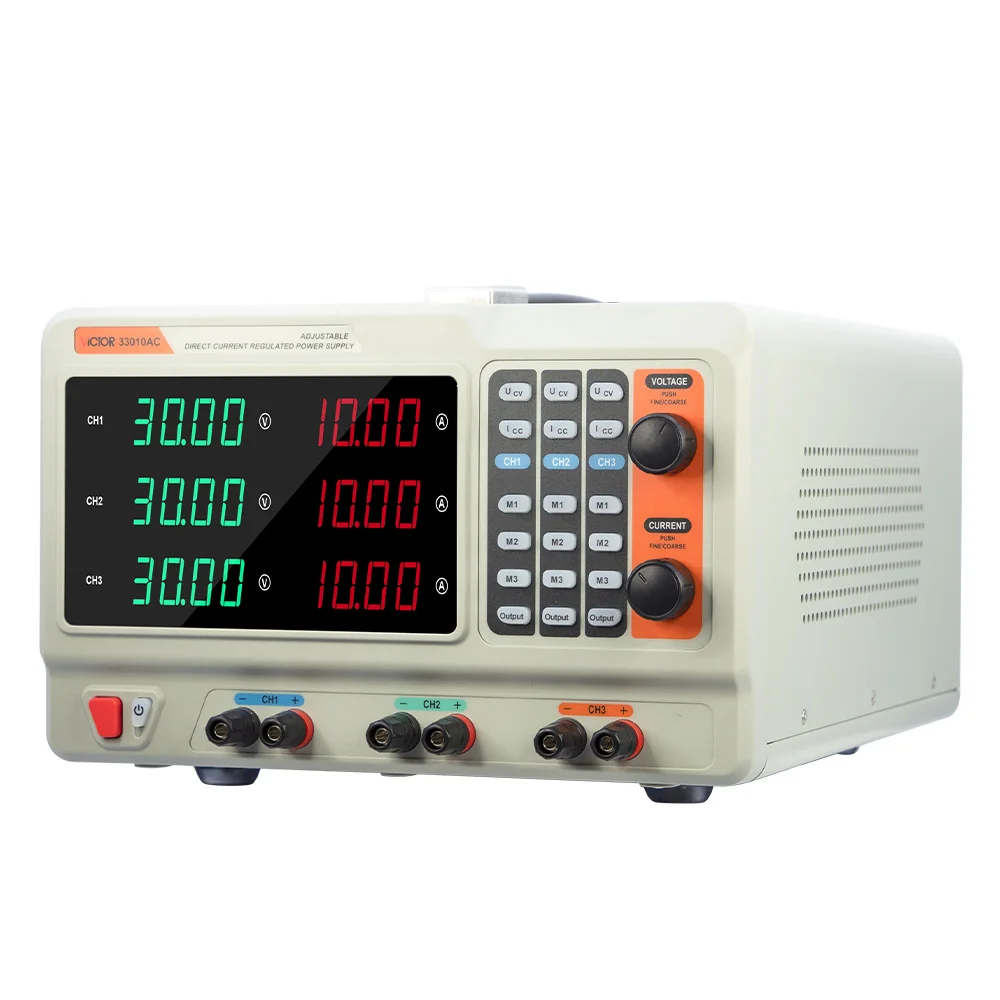

3- Way Programmable Module Power Supply

Three independent channels – Integrates 3 groups of module power supplies in one unit, with LED display simultaneously showing voltage and current for all three channels

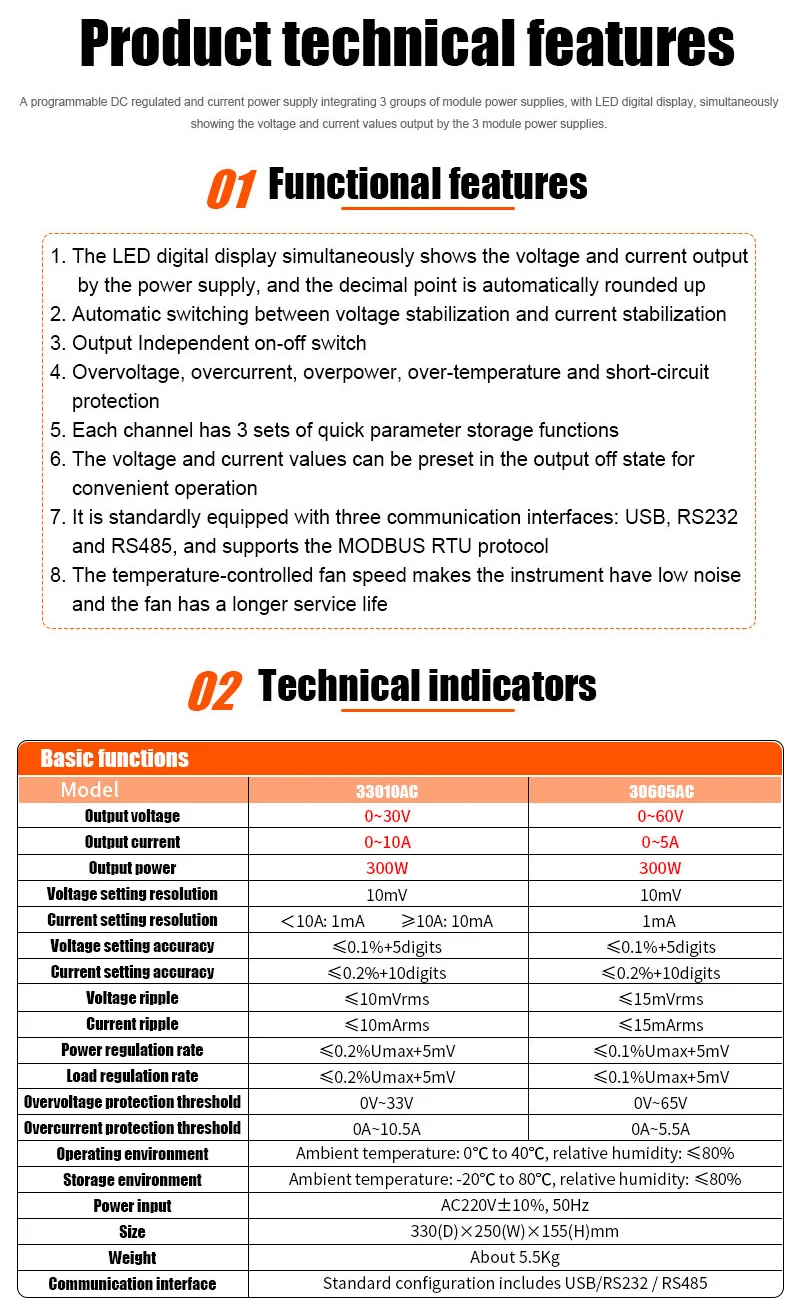

Two model options – 33010AG (0-30V, 0-10A, 300W) and 30605AC (0-60V, 0-5A, 300W) to suit different voltage/current requirements

High resolution and accuracy – Voltage setting resolution: 10mV; Current resolution: 1mA (<10A) / 10mA (≥10A); Voltage accuracy: ≤0.1%+5 digits; Current accuracy: ≤0.2%+10 digits

Low ripple – Voltage ripple ≤10-15mVrms, current ripple ≤10-15mArms for clean power output

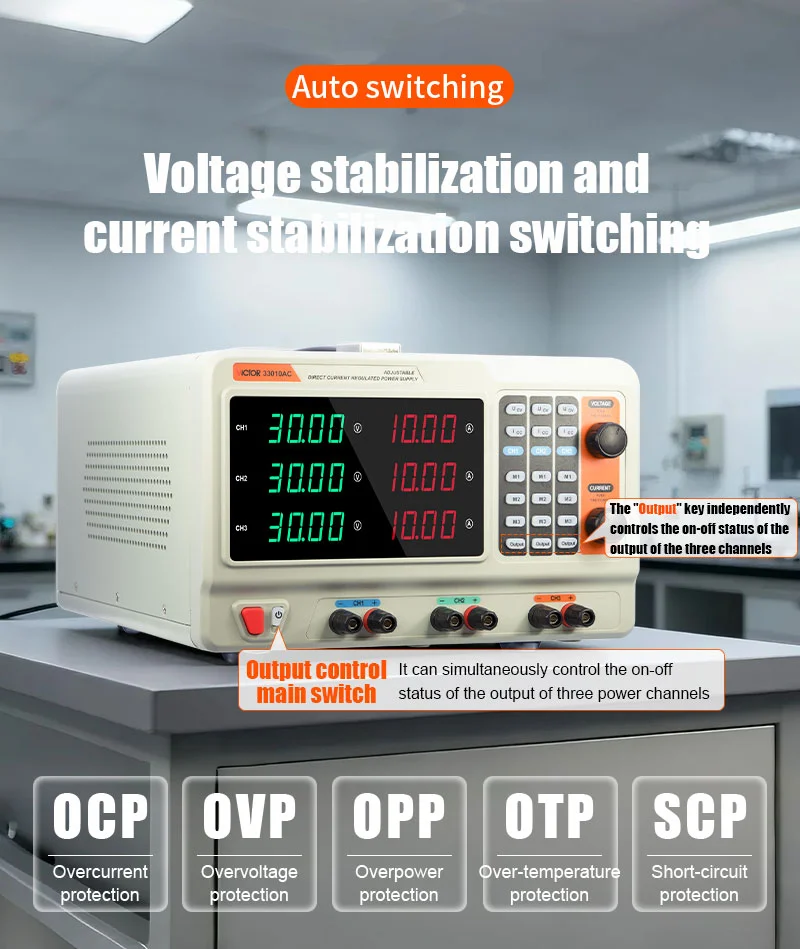

Automatic CV/CC switching – Seamless transition between constant voltage and constant current stabilization based on load conditions

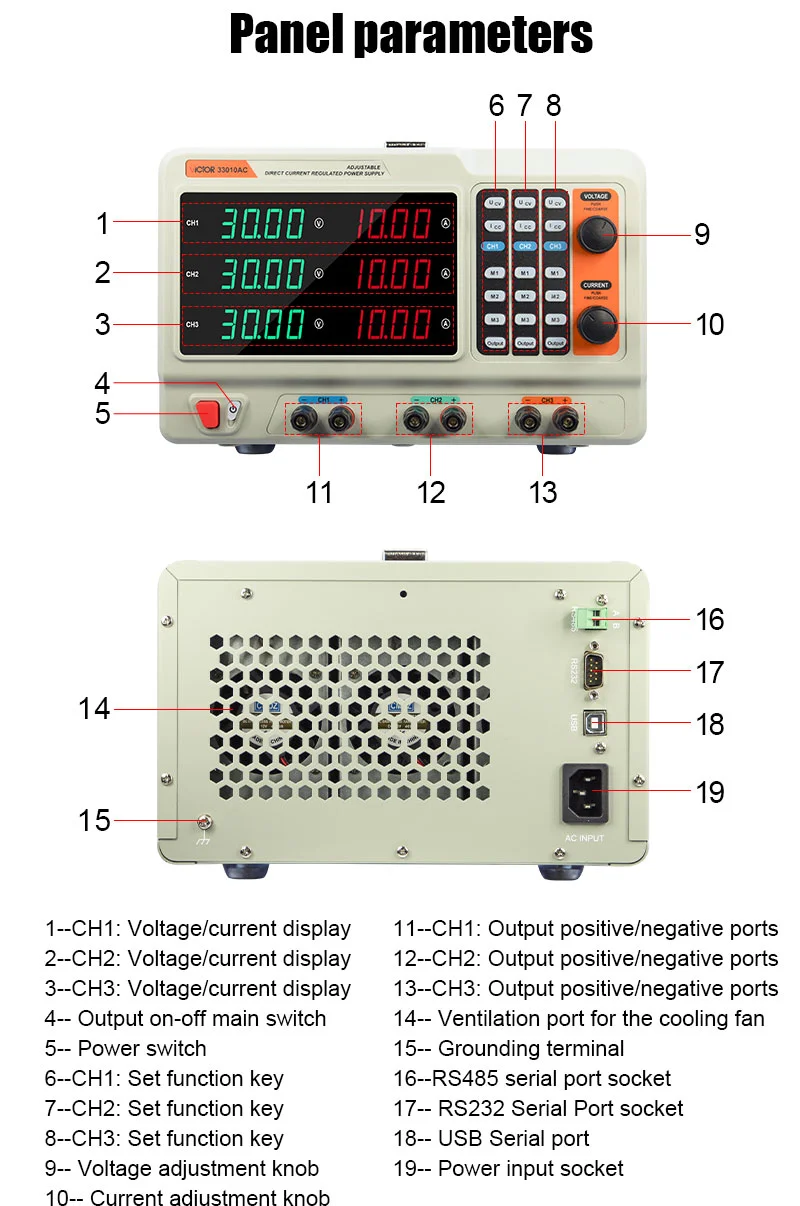

Independent output switches – Each channel has its own on/off control for maximum flexibility

Comprehensive protection – Overvoltage, overcurrent, overpower, overtemperature, and short-circuit protection per channel

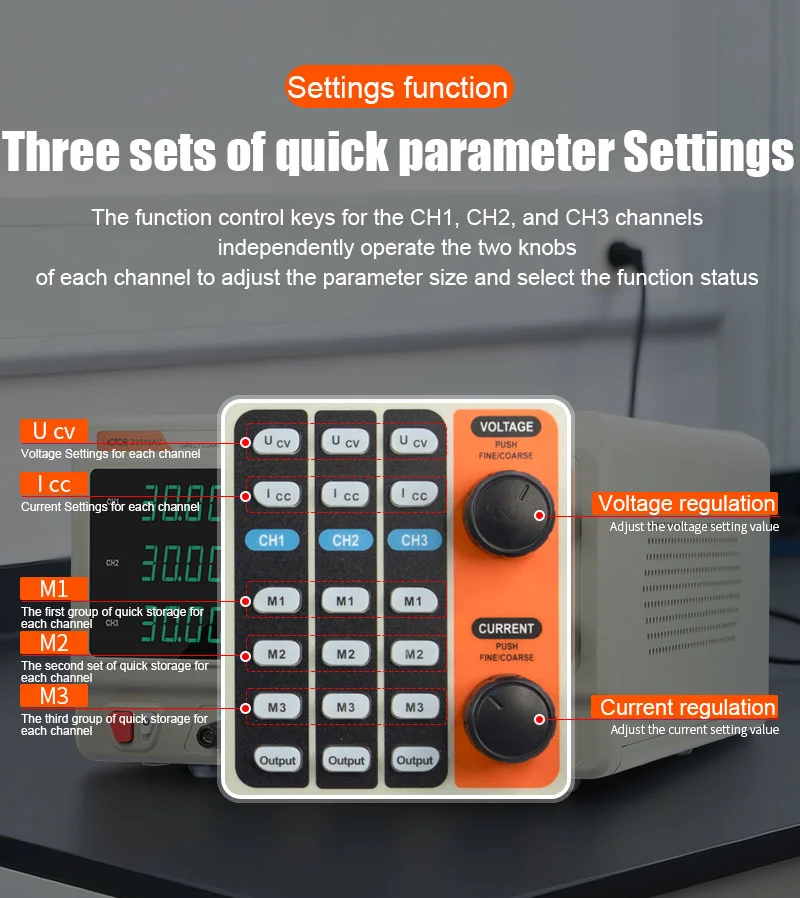

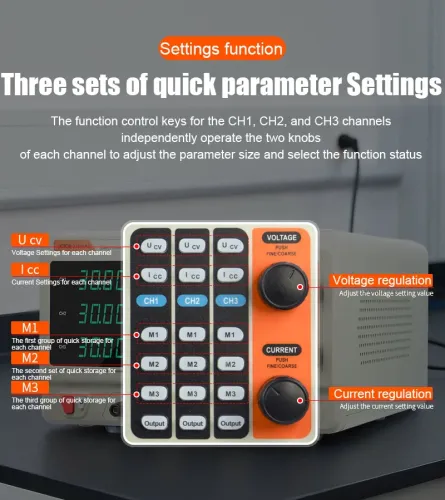

Quick parameter storage – Each channel offers 3 sets of memory presets for fast recall of frequently used settings

Preset while off – Voltage and current can be pre-set while output is off for safe and convenient operation

Triple communication interfaces – Standard equipped with USB, RS232, and RS485, all supporting MODBUS RTU protocol for remote control and automation

Adjustable protection thresholds – OVP adjustable (0-33V or 0-65V) and OCP adjustable (0-10.5A or 0-5.5A) per model

Excellent regulation – Power regulation rate ≤0.1-0.2%Umax+5mV; Load regulation rate ≤0.1-0.2%Umax+5mV

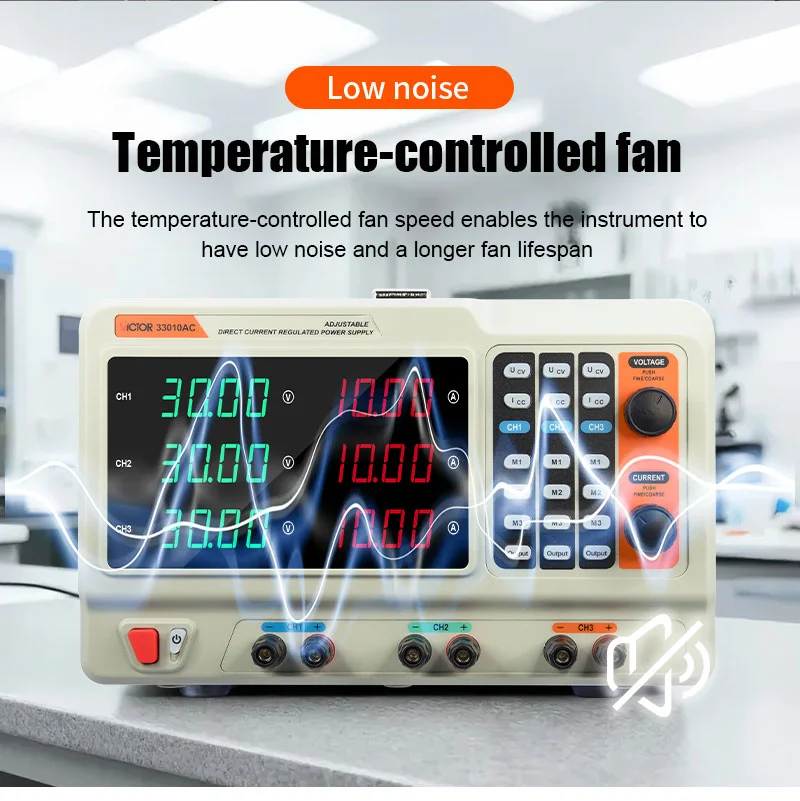

Temperature-controlled fan – Adjusts fan speed automatically for low noise operation and extended fan lifespan

Compact and portable – Dimensions: 330×250×155mm, weight approximately 5.5kg

Wide operating temperature – 30605AC model supports -20°C to 80°C for harsh environments
