Large Screen Display AC Clamp Multimeter

Features

1. Large Backlit LCD Display
   • 5999-count resolution with auto-polarity indication, ensuring clear visibility in low-light environments.
   • Data Hold (HOLD) and Max/Min value recording for real-time analysis of fluctuating signals.
2. Non-Contact AC Current Measurement
   • Clamp-on design supports AC current measurement without circuit interruption, with a wide range up to 1000V AC/DC and 10A DC.
   • High sensitivity for low-current detection (e.g., 600μA resolution), ideal for energy efficiency audits.

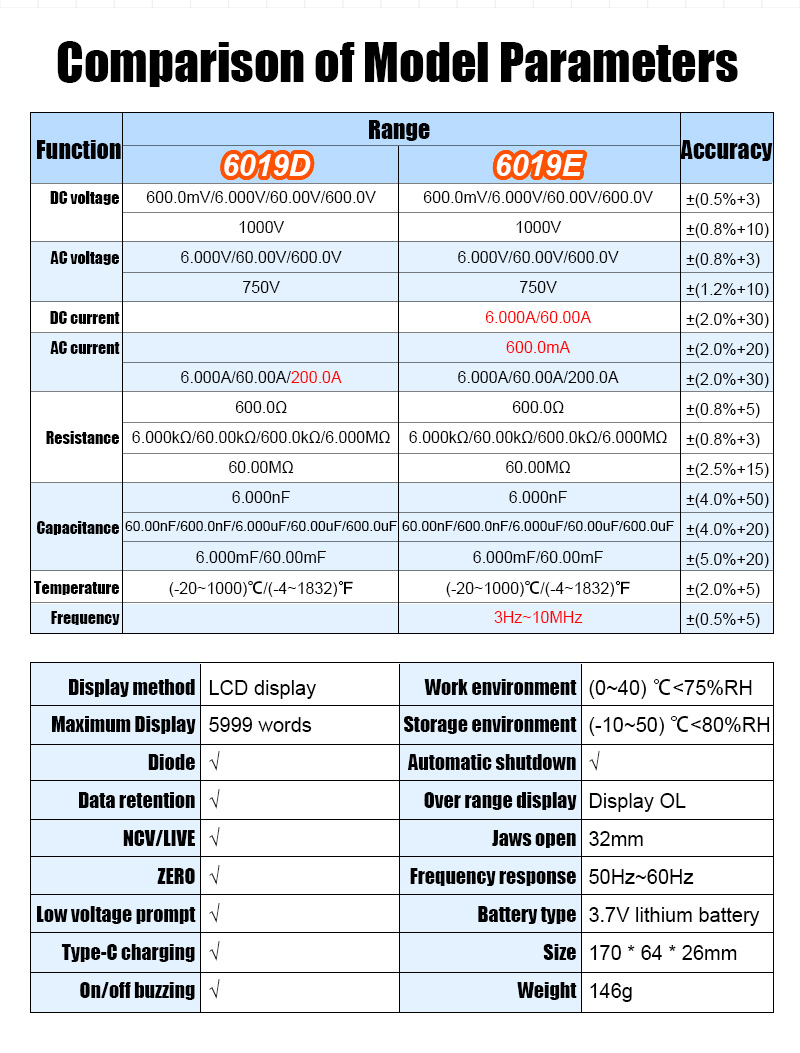

3. Multi-Parameter Precision
   • DC Voltage: 600mV–1000V (±0.5%+3 accuracy).
   • AC Voltage: 6V–1000V (±1.0%+3).
   • Resistance: 600Ω–60MΩ (±0.5%+3).
   • Capacitance: 6nF–6mF (±2.0%+5).
   • Temperature: -55℃~1000℃ (±1.0%+5 below 400℃).
4. Enhanced Safety & Durability
   • CAT III 1000V/CAT IV 600V safety rating, with full-range anti-burn protection for overload scenarios.
   • Auto Power Off and Low Battery Indication to extend battery life (2×AA).
5. Industrial-Grade Design
   • Compact size (187×88×45mm, 400g) with an ergonomic grip for field use.
   • Operates in harsh conditions (0–40°C, <75% humidity).

Applications

• Electrical Maintenance: Rapid diagnosis of motor currents, circuit breakers, and power distribution systems.
• HVAC Systems: Temperature and capacitance testing for compressors and sensors.
• Renewable Energy: Solar panel voltage/current monitoring and inverter efficiency analysis.

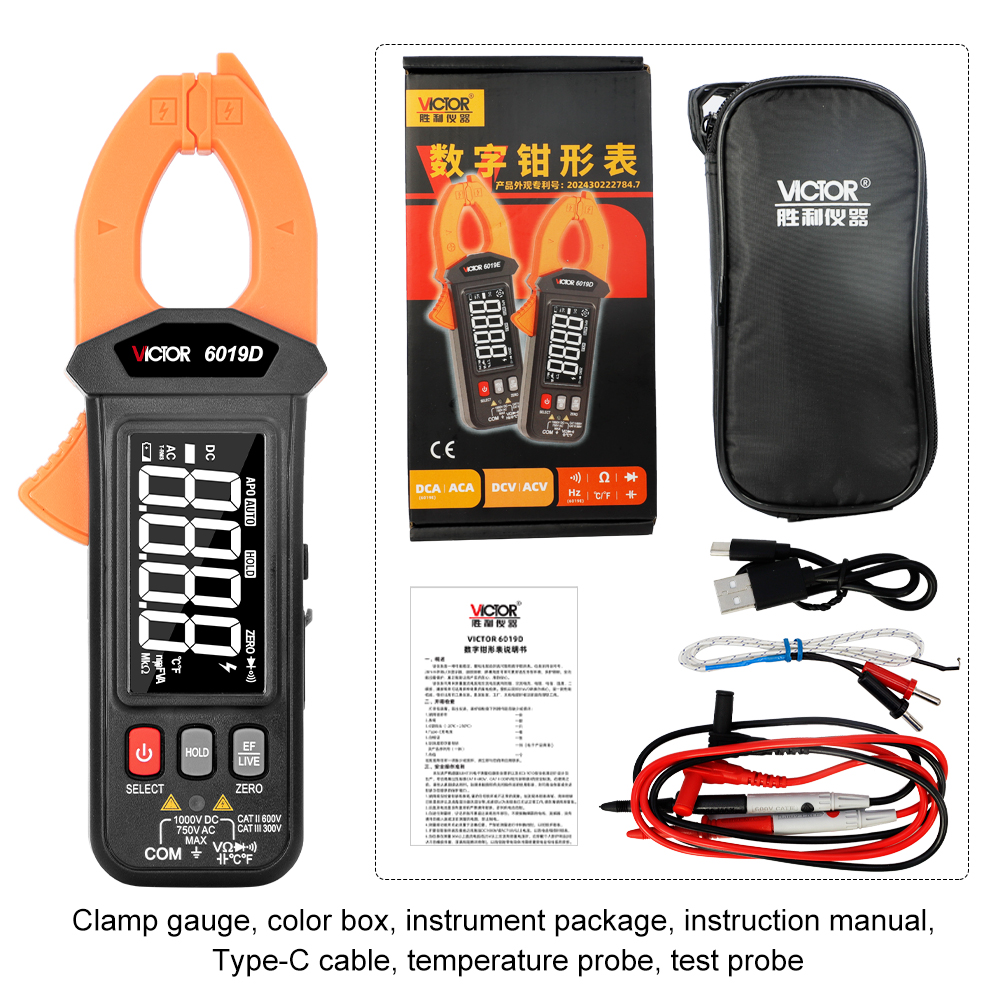

Package Includes

• Test leads (10A rated), temperature probe (optional), user manual, and protective pouch.

For detailed specifications or OEM customization, refer to the official technical documentation or contact authorized distributors.
