Specification |
Range |
Best Accuracy |
|
DC Voltage |
600.0mV/6.000V/60.00V/600.0V |
± 0.5%+3 |
|
AC Voltage |
600.0mV/6.000V/60.00V/600.0V |
± 0.8%+5 |
|
DC Current |
60.00A/600.0A |
± 2.5%+5 |
|
AC Current |
60.00A/600.0A |
± 2.5%+8 |
|
AC Current |
600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ |
± 0.8%+5 |
|
Capacitance |
6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF |
± 3.0%+10 |
|
Frequency |
10.00Hz/100.0Hz/1.000kHz/10.00kHz/100.0kHz/1.000MHz/10.00MHz |
± 0.3%+3 |
|
Temperature |
-20°C~1000°C / -4°F~1832°F |
± 1.0%+5 |
|

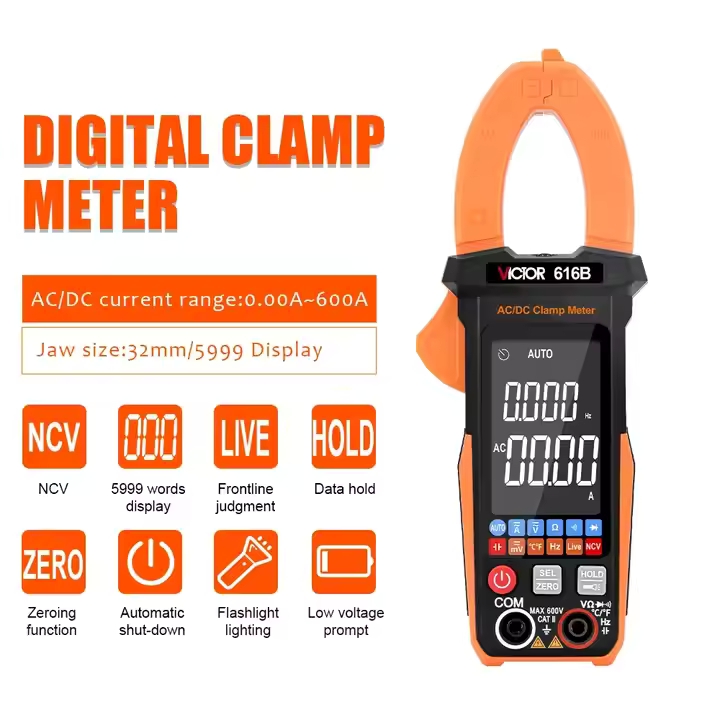

Features |
|
|
Diode & continuity Test |
√ |
|
Low battery indication |
√ |
|
Data Hold |
√ |
|
NCV (non-contact voltage detection) |
√ |
|
Auto power off |
√ |
|
Live wire test |
√ |
|
Flash light |
√ |
|
Zeroing |
√ |
|
DC current zeroing |
√ |
|
Operation way |
Auto range |
|
Max. display |
5999 |
|
AC frequency |
50Hz~60Hz |
|

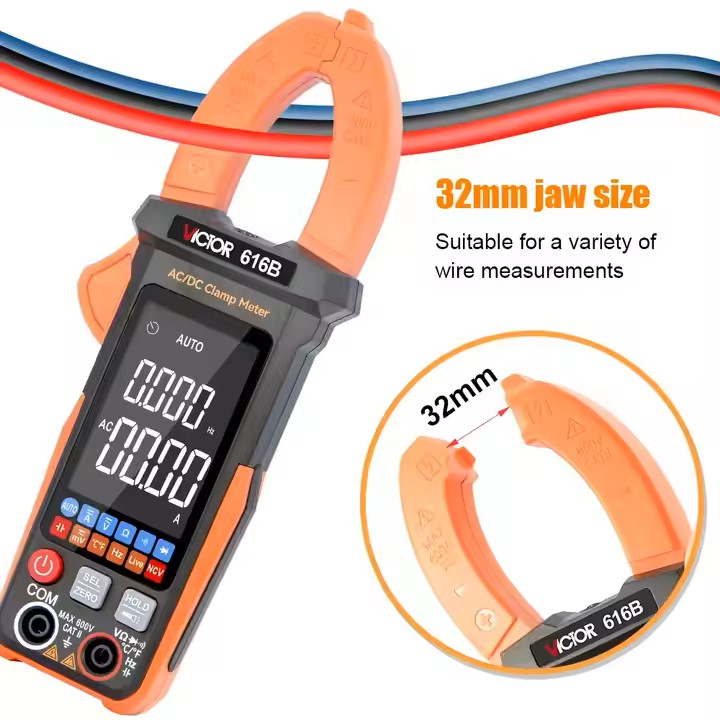

Jaw size |
32mm |
|
General Information |
|
|
Power supply |
1.5V AAA x 3 |
|
Product Color |
Black+ orange |
|
Product Weight |
225g |
|

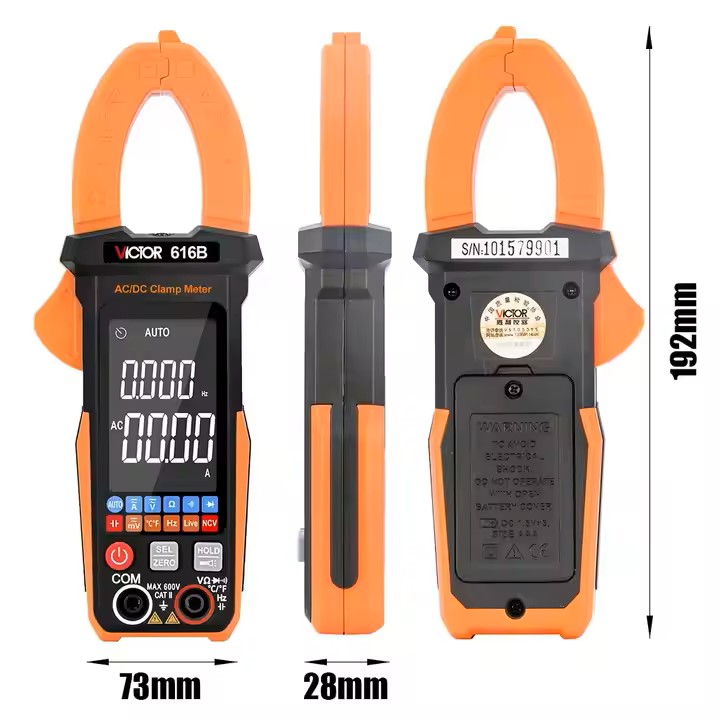

Product Size |
192x73x28mm |
|
Standard Accessories |
Test leads, batteries, manual, pouch, temperature probe |
616B Catalog
