Specifications |
|||
|
Measurement function |
Range |
Resolution |
Basic accuracy |
|
DC voltage |
-51.00V-51.00V |
10mV |
0.1%+0.04V |
|
AC voltage |
0.0V-510.0V |
100mV |
1%+1V |
|
VFC |
0.0V-510.0v |
100mV |
4%+1V |
|
Resistance |
0-5.100kΩ/0-510.0Ω |
0.001kΩ/ 0.1Ω |
0.1%+0.004 kΩ/0.1%+ 0.4Ω |
|
DC current |
-50.00mA-50.00mA |
0.01mA |
0.1%+0.04mA |
|
Diode test |
2V |
0.001V |
1%+0.02V, ≤1VBB |
|
Continuity beeper |
500Ω |
0.1Ω |
≤50ΩBB |
|
Source function |
|||
|
DC voltage |
-1.00V-11.00V |
10mV |
0.2%+0.04V |
|
DC current |
0.00-22.00mA |
0.01mA |
0.2%+0.04mA |
|
Analog transmitter/ SIMULATE |
0.00-22.00mA |
0.01mA |
0.2%+0.04mA |
|
Loop power supply |
24V |
√ |
±10% |
|

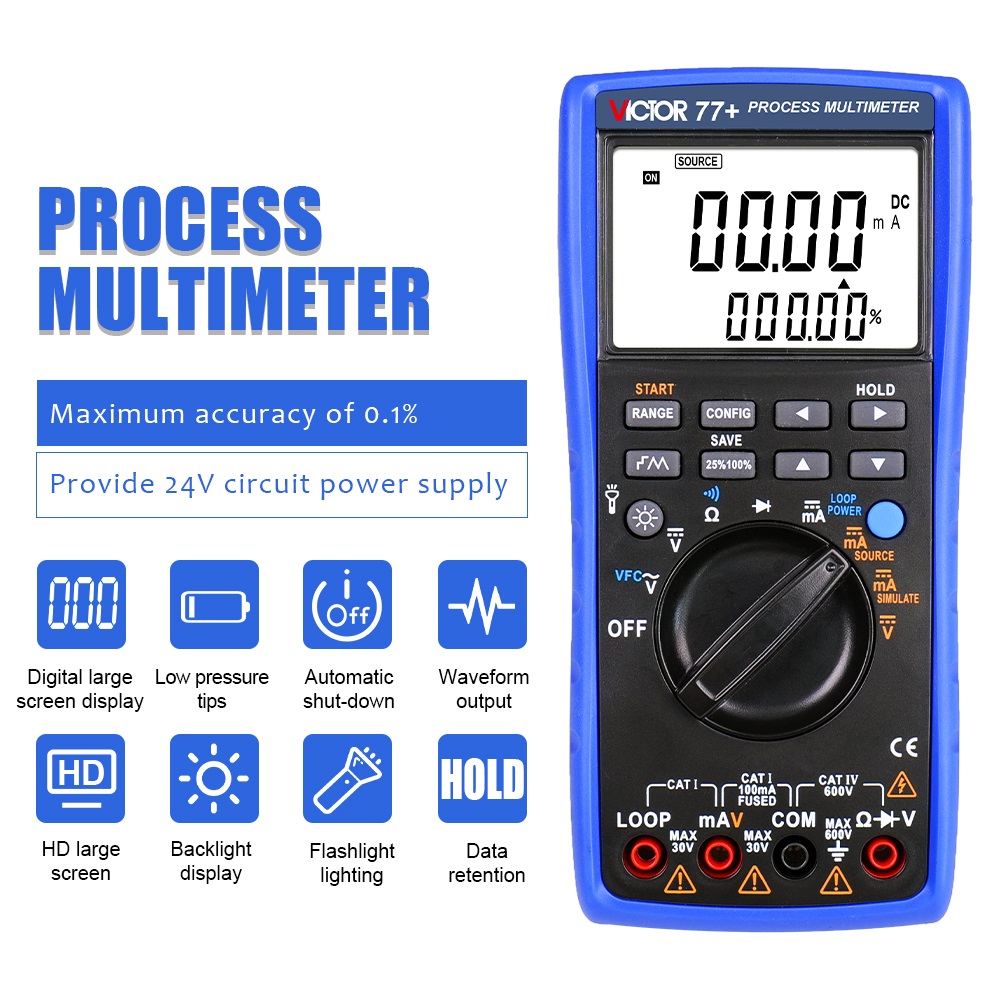

Features |
|
|
Model |
77+ |
|
Back light |
√ |
|
Data hold |
√ |
|
The highest output accuracy |
0.1% |
|
The output display |
4 digits |
|
Waveform output |
√ |
|
VFC (variable frequency voltage measurement) |
√ |
|
Flash light |
√ |
|
Auto Power-off |
√ |
|
24V loop power supply |
√ |
|
Low battery indication |
√ |
|
25%,100% step output |
√ |
|
General Information |
|
|
Model |
77+ |
|
Power Supply |
1.5V AA *3 |
|

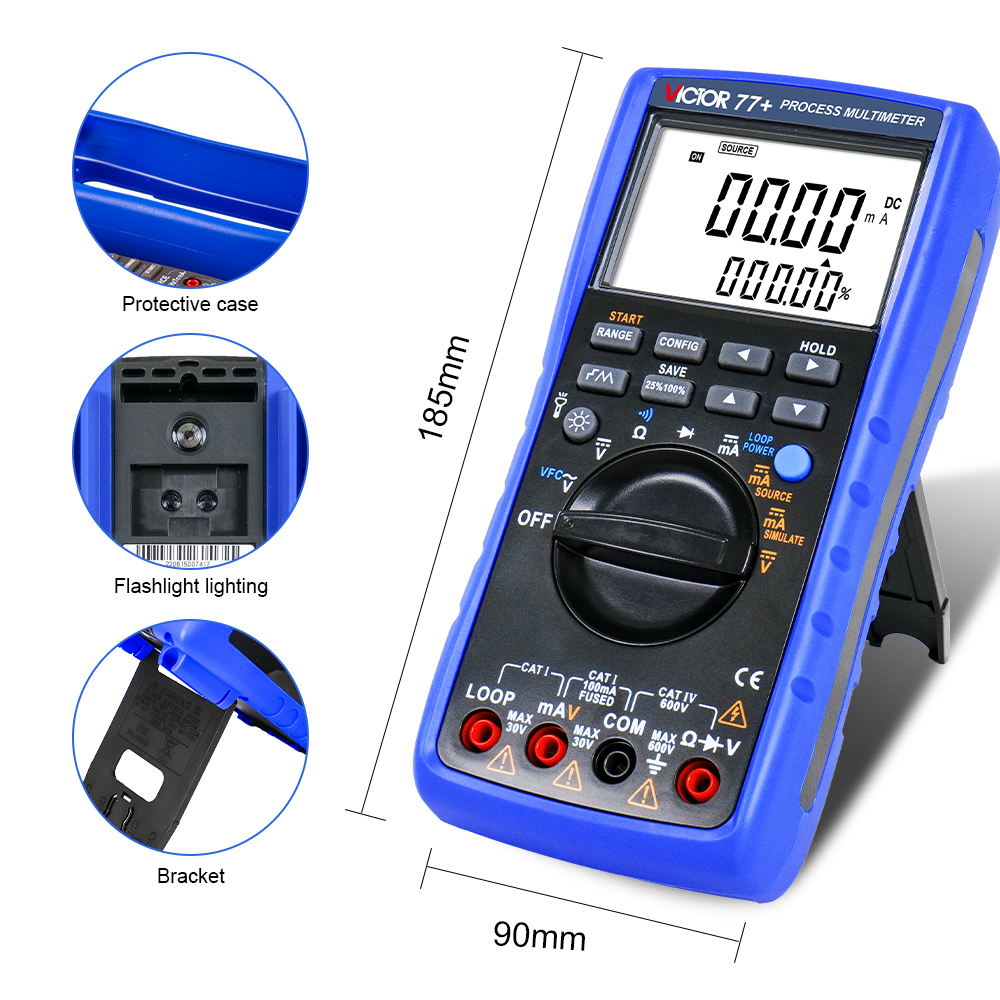

Product size |
185mm×90mm×54mm |
|
Product weight |
About 500g |
|

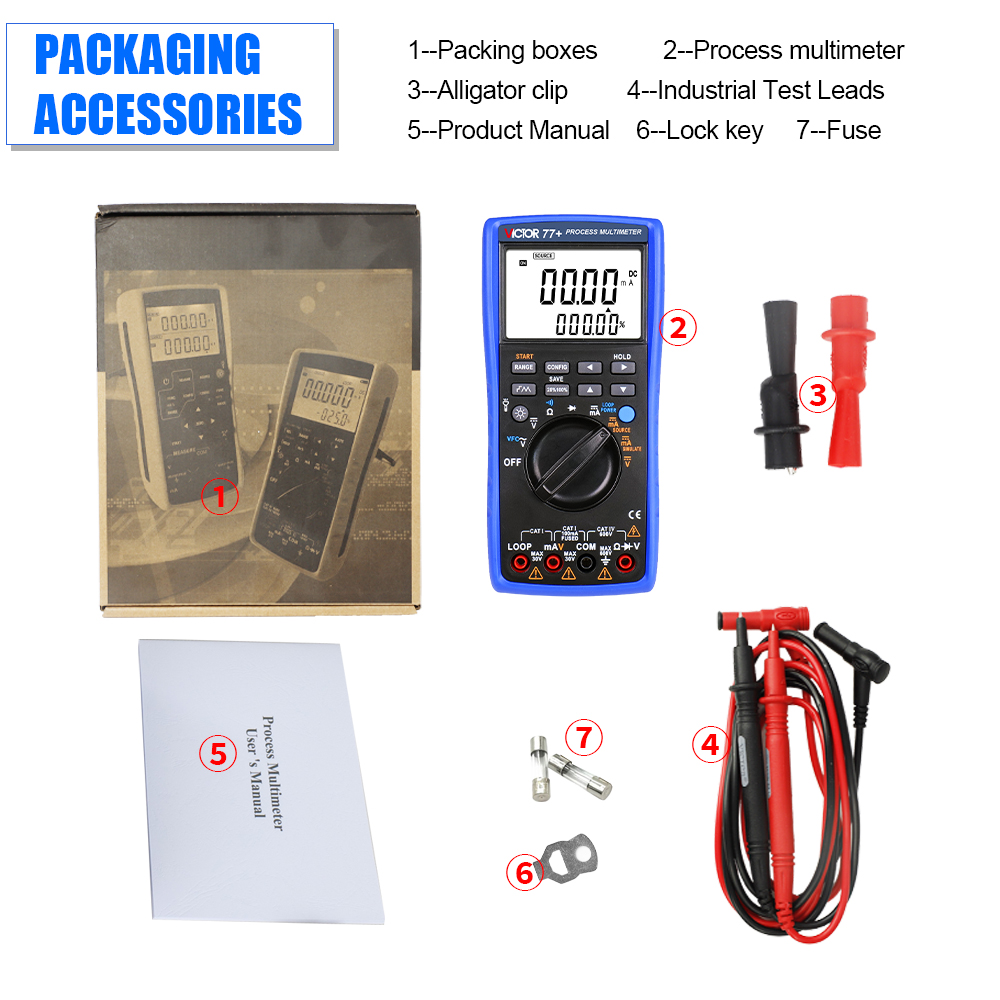

Standard accessories |
Test leads, manual, fuse, alligator clip |
