Name: Clamp Ground Resistance Tester
Brand: VICTOR & RuoShui
SKU: FR2000A+ FR2000+ FR2000B+ FR2000C+
Availability: InStock
Rating: 5 (1 reviews)

Home > Electrical Measurement Instruments > Resistance Testers

Description Specifications Video DOWNLOAD Review

Description

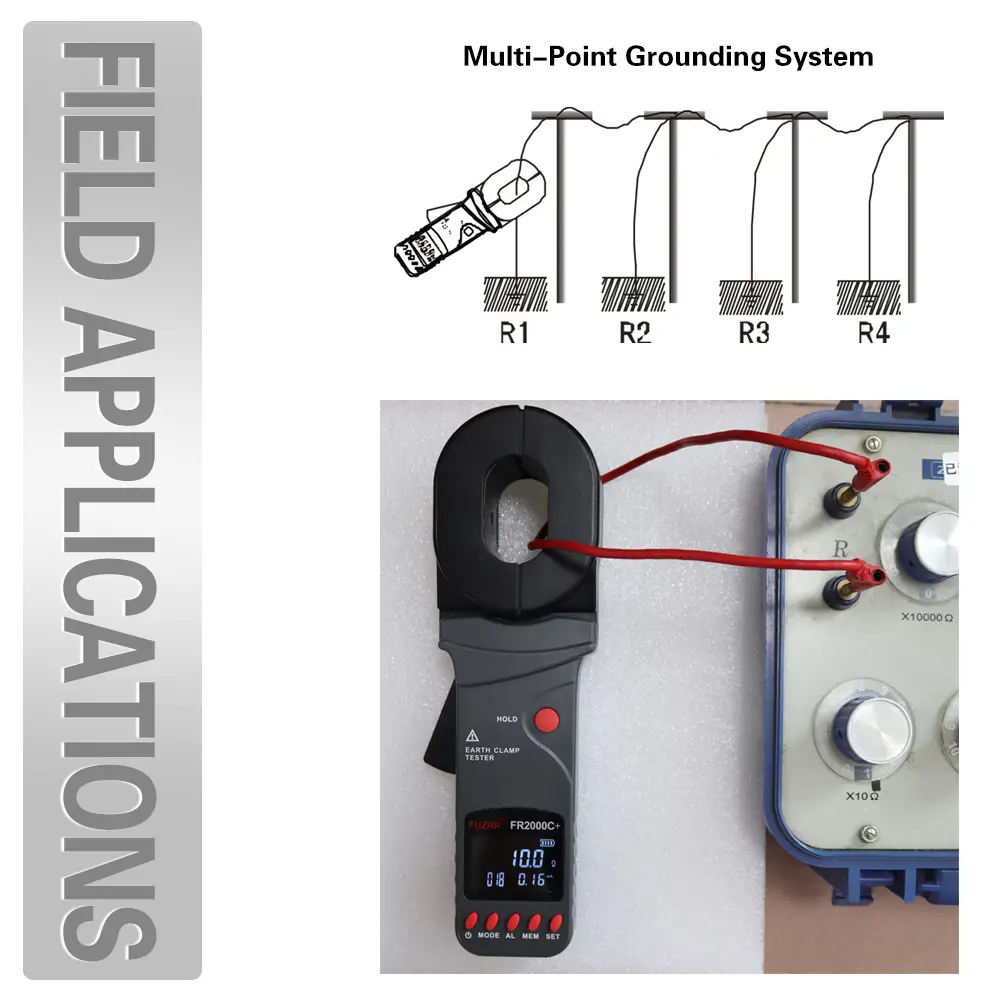

Clamp ground resistance tester, also known as loop resistance tester, is used to test ground resistance. This instrument uses a new black luxury screen design, the resistance current is displayed on the same screen, and it also has functions such as data storage, data review, alarm, and automatic shutdown. The whole machine is beautiful and high-grade, with a wide range, high resolution, convenient operation, convenient carrying, accurate, reliable, stable performance and strong anti-interference ability. Moreover, it has a shock-proof, dust-proof and moisture-proof structure. It is a common and indispensable instrument for telecommunications, electricity, meteorology, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy. It is suitable for measuring grounding resistance of various telecommunications, electric power, meteorology, computer room, oil field, power distribution lines, tower transmission lines, gas stations, factory grounding grids, lightning rods, etc.

The clamp ground resistance tester is controlled by a microprocessor and can accurately detect ground resistance. It uses fast filtering techniques to minimize interference. Simultaneous data storage and data upload functions.

Specifications

Specifications
Function	Measuring Range	Accuracy
Resistance	0.010Ω-0.099Ω	±(1%＋0.01Ω）
	0.10Ω-0.99Ω	±(1%＋0.01Ω）
	1.0Ω-49.9Ω	±(1%＋0.1Ω）
	50.0Ω-99.5Ω	±(1.5%＋0.5Ω）
	100Ω-199Ω	±(2%＋1Ω）
	200Ω-395Ω	±(5%＋5Ω）
	400-590Ω	±(25%＋10Ω）
	600Ω-880Ω	±(25%＋20Ω）
	900Ω-1200Ω	±(25%＋30Ω）
Current	0.00mA -9.95mA	±(2.5%＋1mA）
	10.0mA -99.0mA	±(2.5%＋5mA）
	100mA -300mA	±(2.5%＋10mA）
	0.30A-2.99A	±(2.5%＋0.1A）
	3.0A-9.9A	±(2.5%＋0.3A）
	10.0A-20.0A	±(2.5%＋0.5A）

Features
Model	FR2000A+/FR2000+/FR2000B+/ FR2000C+
Data hold	√
Data store	300 groups789
Jaw size	55x32mm
LCD size	46mm×29mm
Display	Black screen, 4 digits
Measurement method	mutual inductance

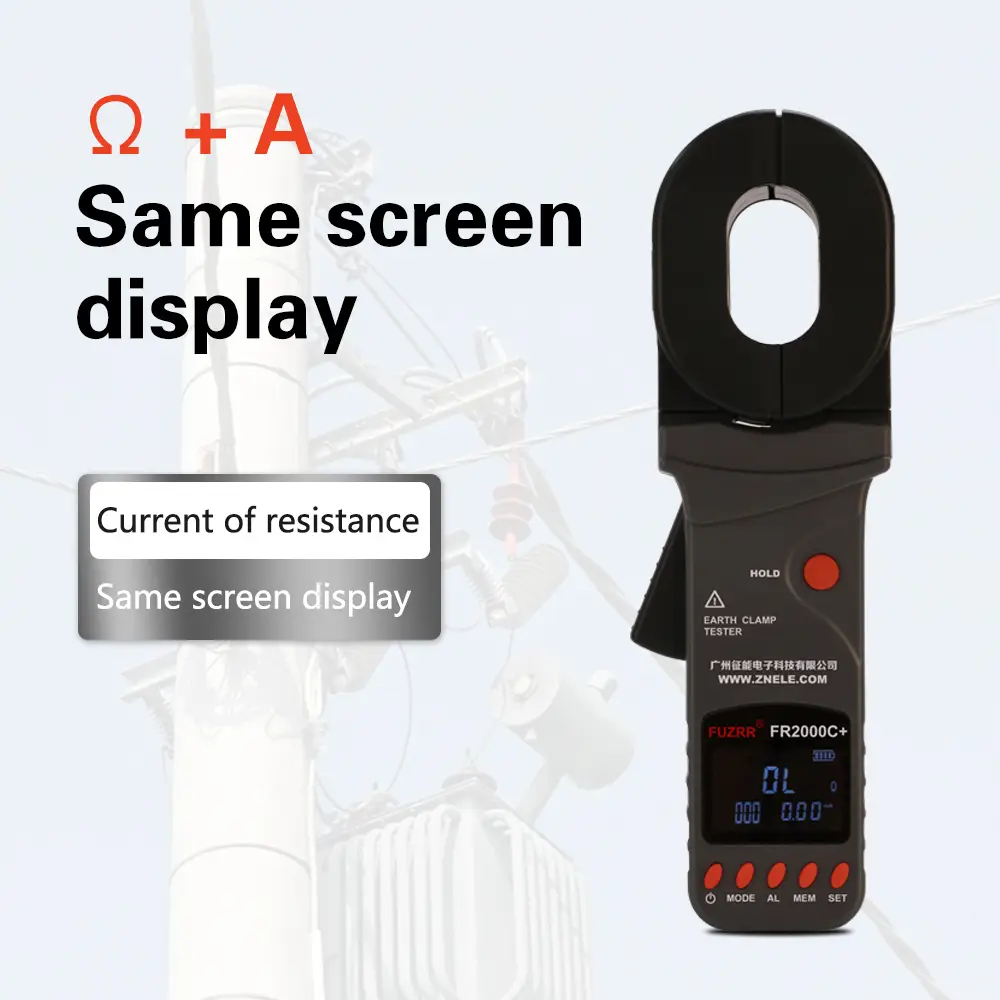

Double display	Ω + A sync display at the same time
Measuring time	2 times / second
Overflow indication	“OL”
Interference identification	Auto identify, indicates “NOISE”
Alarm function	√
Battery indication	√
Current resolution	0.01mA
Resistor resolution	0.001Ω
Working condition	-10℃～40℃; below 80%rh
Storage condition	-20℃～60℃; below 70%rh

General Information
Model	FR2000A+/ FR2000+/ FR2000B+ / FR2000C+
Power supply	4 x AA batteries
Product size	285mm×85mm×58mm
Product weight	1180g (including battery)

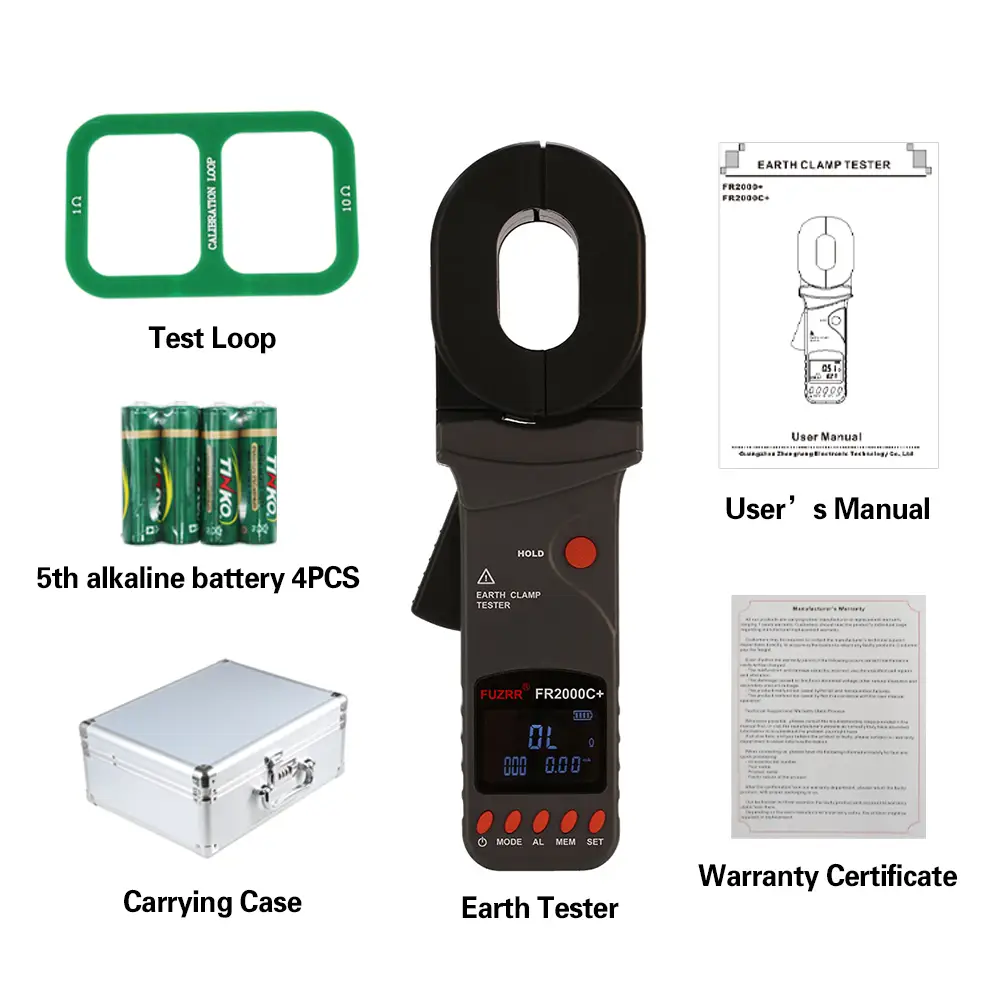

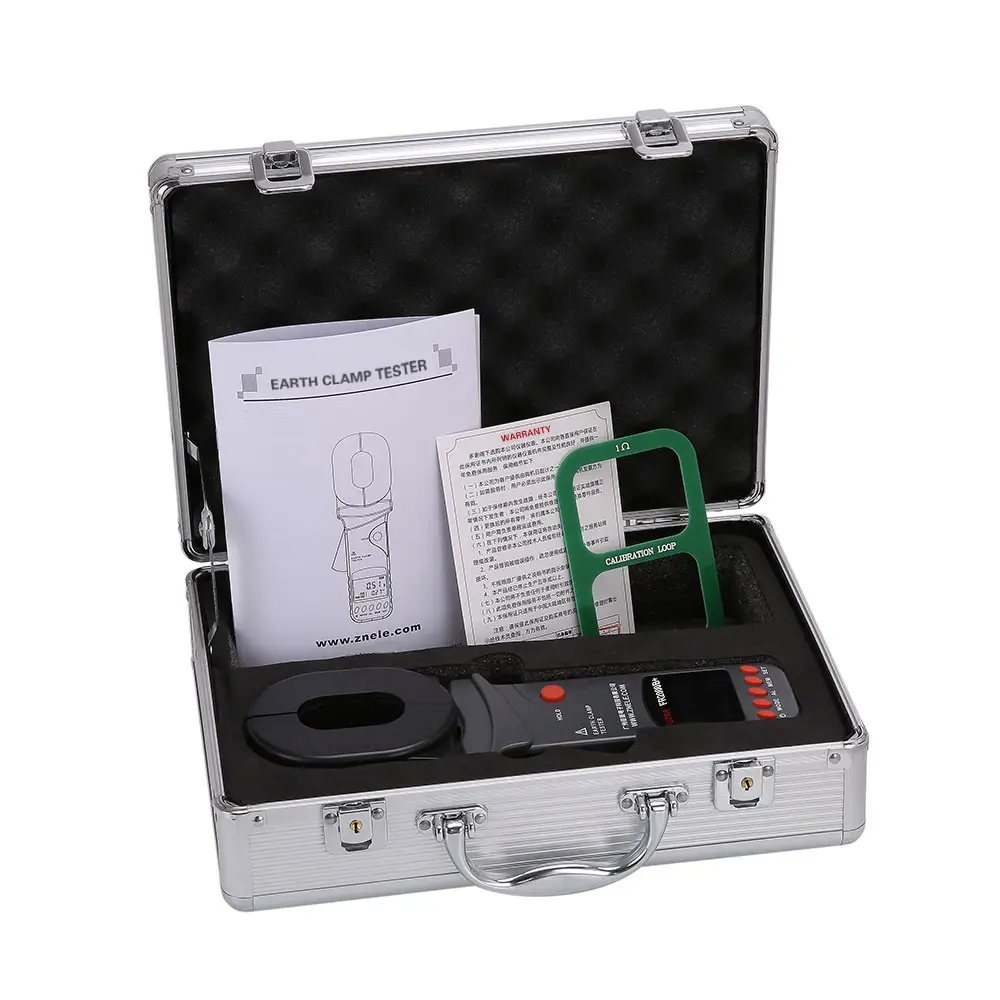

Standard accessories	Test loop, batteries, manual, tool box

Model	Resistance Range	Current Range
FR2000A+	0.01Ω-200Ω	---
FR2000+	0.01Ω- 500Ω	---
FR2000C+	0.01Ω-1200Ω	0.00mA-20A
FR2000B+ Explosion-proof	0.01Ω-1200Ω	---
