Name: Clamp Leaker
Brand: VICTOR & RuoShui
SKU: 6800
Availability: InStock
Rating: 5 (1 reviews)

Home > Electrical Measurement Instruments > Leakage Current Clamp Met...

Description Specifications Video DOWNLOAD Review

Description

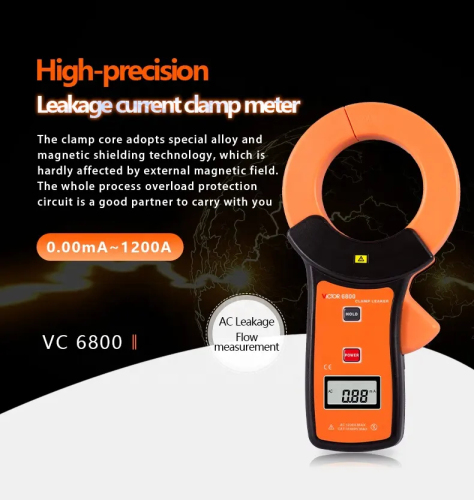

High Accuracy Clamp Leakage Current Meter is specially designed and manufactured for measuring AC leakage current. The meter adopts CT technology and digital integration technology, with the characteristics of small size, high precision and fully functional. It is widely used in electric power, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching units, industrial and mining enterprises, automobile circuit maintenance and other fields. Its sensing iron core is made of special alloy, adopts multi-layer shielding technology, and has strong anti-interference ability, which ensures the high precision, high stability and high reliability in the measurement of all year round without interruption.

The instrument is equipped with RS232 interface, communication cable and monitoring software. It can real time monitoring and query history online via the computer, and display dynamically, has the maximum, the mini mum and the average value indication, with the alarm value setting and the alarm indication function, has the historical data reading, saves, prints and other functions. The meter also has peak hold, data hold and data storage and other functions, convenient to use, which is an essential tool for electrical safety inspection.

Specifications

Specifications
Model	6800
Function	AC leakage current AC current On-line measurement
Measuring Range	0.00mA～1200A (50/60Hz automatic)
Resolution	0.01mA
Accuracy	0.00mA~59.9A: 1.5%+5
	60.0A~199A: 2%+5
	200A~599A: 3%+5
	600A~1200A: 4%+ 5
Sampling Speed	2times/S
Voltage Range	AC 600V

Features
Model	6800
Data storage	99 groups
Peak hold	√
Date hold	√
Overflow indication	√
Auto power off	√
Low battery indication	√
Clamp size	φ68mm

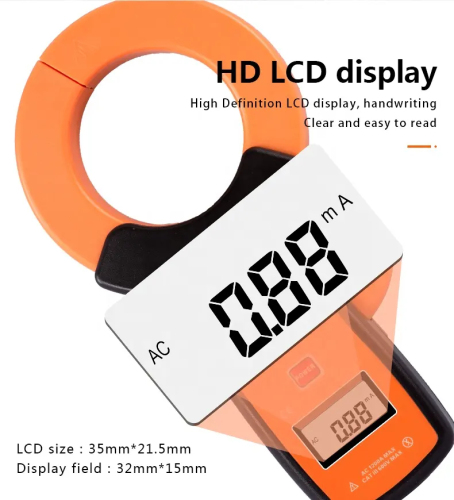

LCD size	35*21.5mm

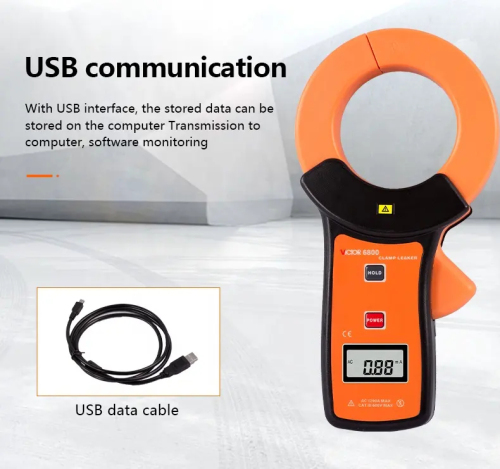

Interface	USB (Data storage/On-line monitoring )
Working Condition	‘(0～40)℃; below 80%Rh
Storege Condition	‘(-10～60)℃; below 70%Rh

General Information
Model	6800
Power supply	9V 6F22
Product size	224mmx115mmx43mm
Product weight	500g

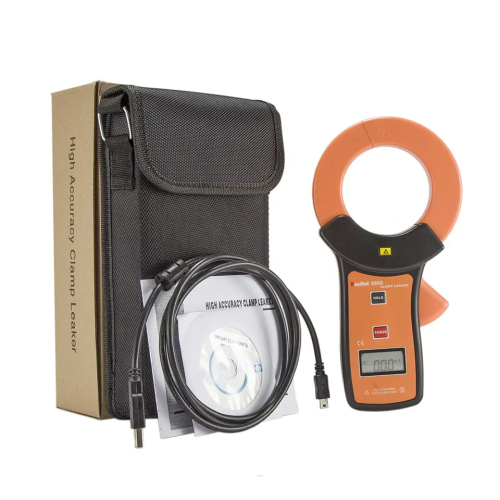

Standard accessories	USB cable,battery,manual,pouch,software CD
