Description

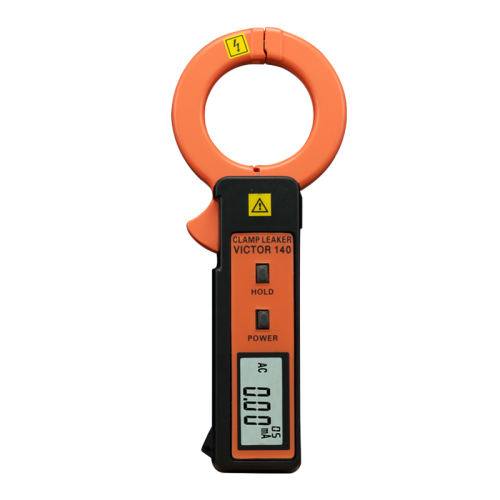

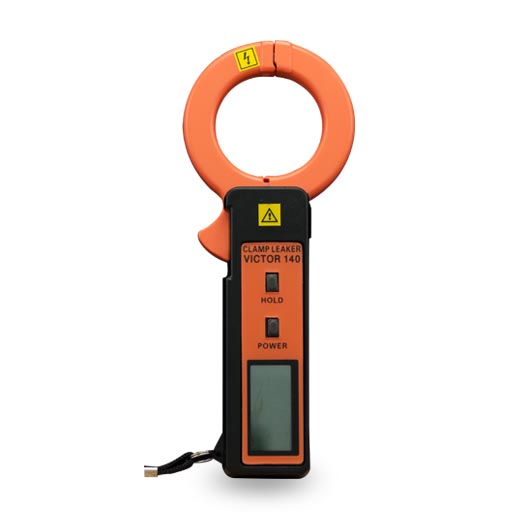

High Accuracy Clamp Leaker is specially designed for measurement of AC leakage current; by adopting up-to-date CT technology and digital integration technology, it is a product with relatively small size, high accuracy and perfect function compared with similar leakers in the world. The leaker could be widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments.

Clamp core of this High Accuracy Clamp Leaker adopts special alloy; in addition, with utilization of magnetic shielding technology, it is almost free from influences of external magnetic field so as to ensure high precision, high stability and high reliability of perennial continuous measurement.

This High Accuracy Clamp Leaker obtains one RS232 interface. With the help of the software that we provide, many functions are available. For example, on-line monitoring, historical data inquiry,active curve drawing, indication of max, min and average value, alarm setting and indication. There are also functions like saving to documents and printing when connected to PC.

This High Accuracy Clamp Leaker could be used for AC Line current measurement and on-line current measurement with voltage lower than AC600V; it also have those functions as peaking holding, data holding and data storage; with convenient use, it is an essential tool for electrician safety testing.

Specifications

Specifications
Model	140
Function	AC leakage current AC current
Range	0.00～300.0A（50/60Hz）
Resolution	0.01mA
Measuring Range	30mA/300mA, 30A/300A
Accuracy (at 23℃±1℃,<70%RH)	0.00mA～9.99mA: ±1.2%±5
	10.0mA～300.0mA: ±1.5%±5
	0.00A～9.99A: ±1.2%±5
	10.0A～99.9A: ±1.5%±5

Features
Model	140
Display	4 digits LCD: 32x15mm
Data storage	60 groups
Clamp size	φ40mm
Sampling rate	2 times/s
Data hold	√
Over range indication	√
Auto off	Idle for 5 minutes
Low battery indication	√
Rated power	5mW
Working condition	-0℃～40℃, below 80%RH
Storage condition	-10℃～60℃, below 70%RH
Insulations	AC2kV/rms (between core and box)
Safety	IEC1010-1, IEC1010-2-032, pollution grade: 2, CAT Ⅲ(600V)

General Information
Model	140

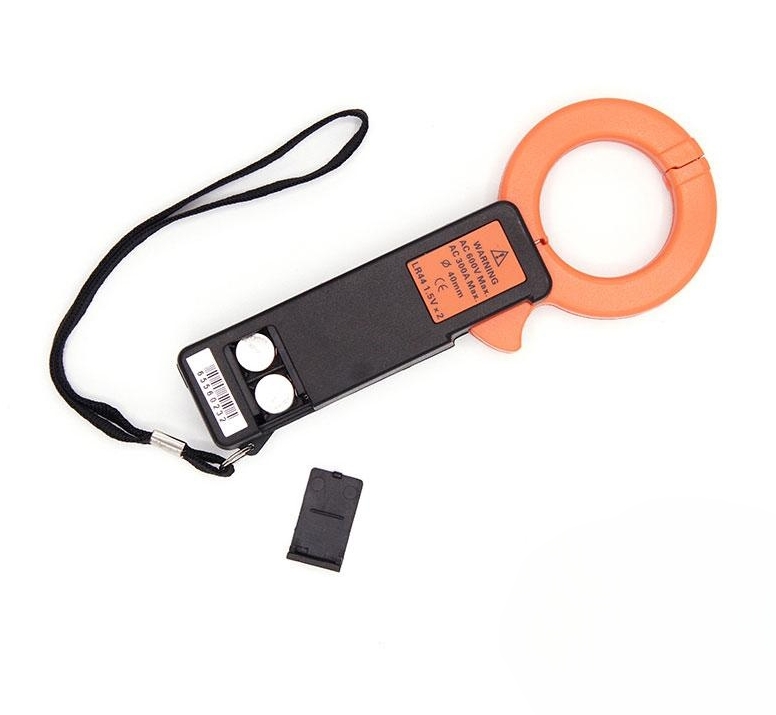

Power Supply	Button Cell LR-44×2 or SR-44×2
Product Size	64mm×160mm×23mm
Product Weight	120g

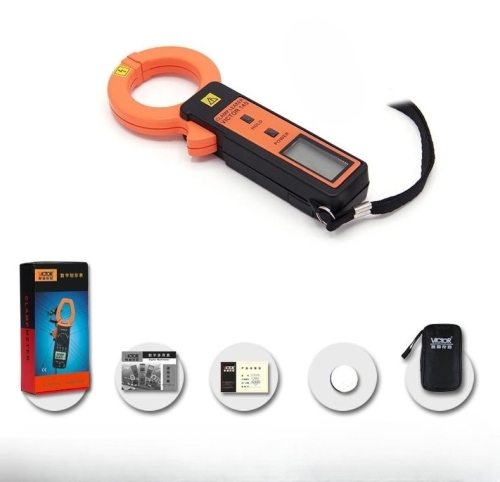

Standard Accessories	Manual, battery, pouch
