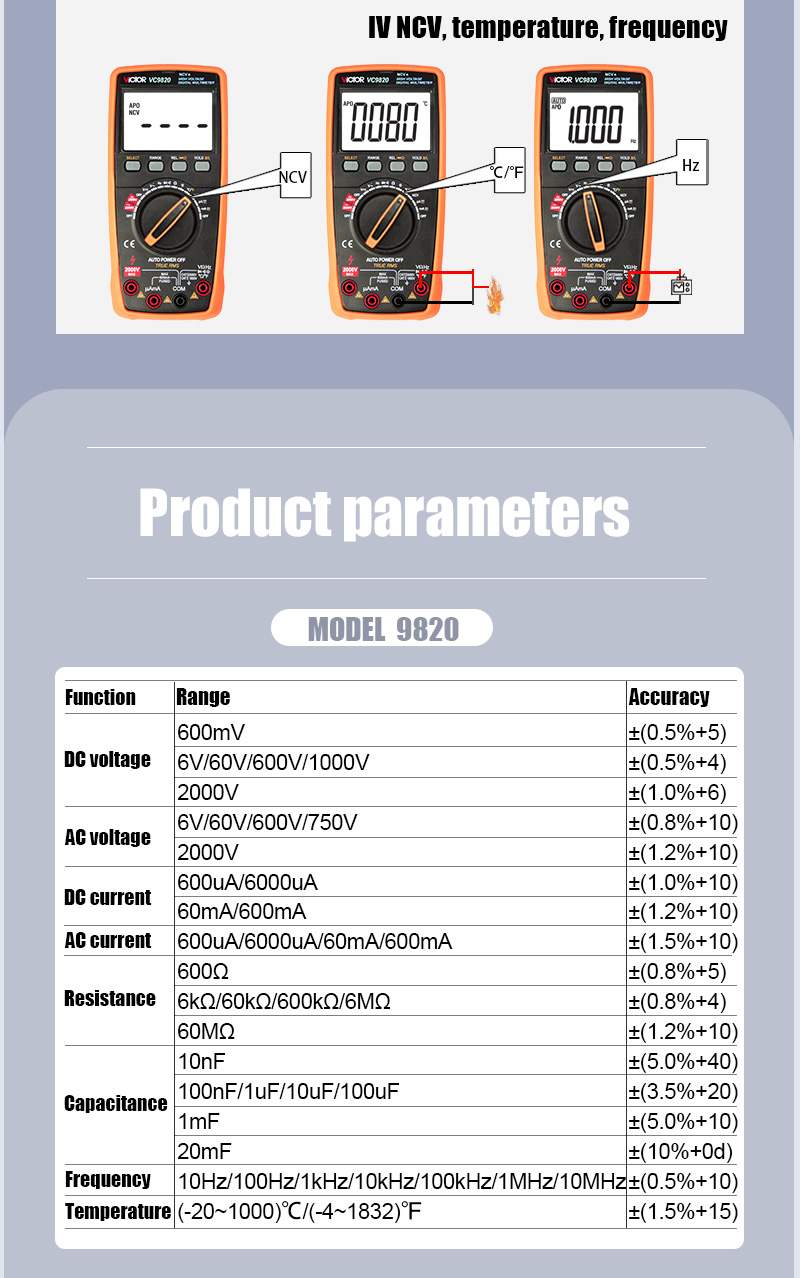

Specifications |
||
|

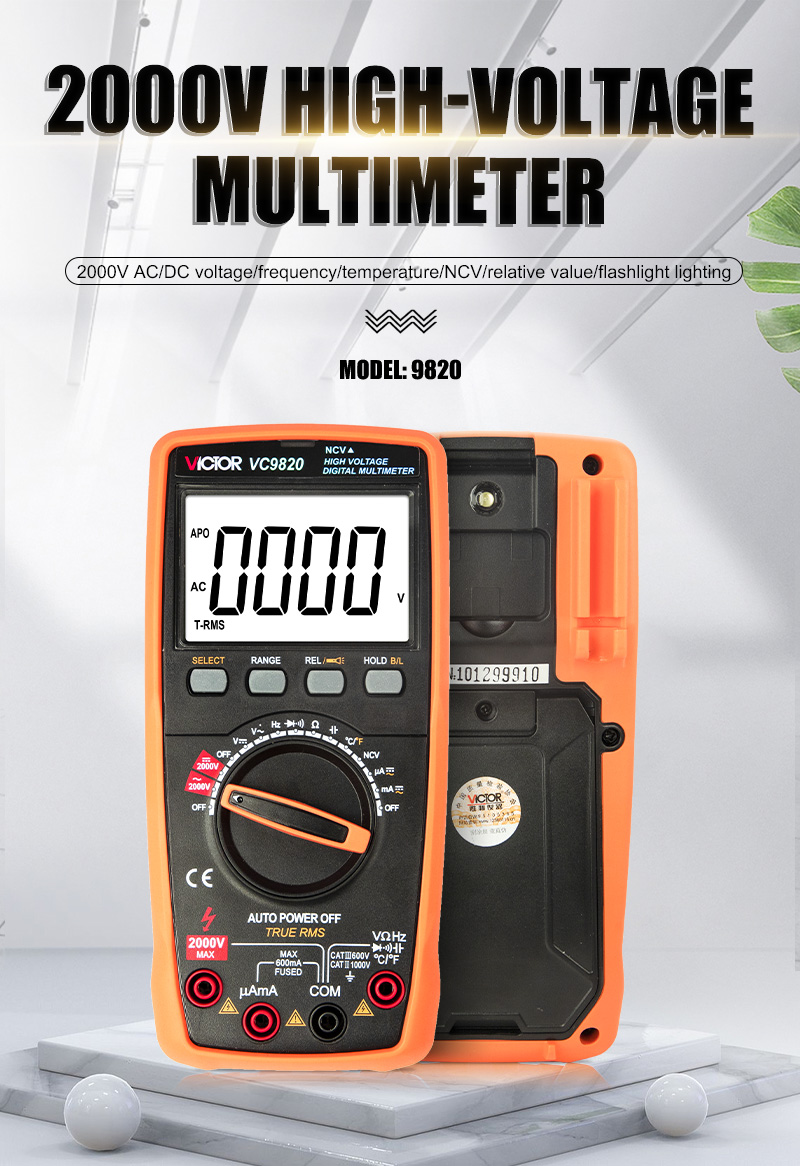

Model |
9820 |
|
|
DC voltage |
600mV/6V/60V/600V/1000V |
± (0.5%+4) |
|

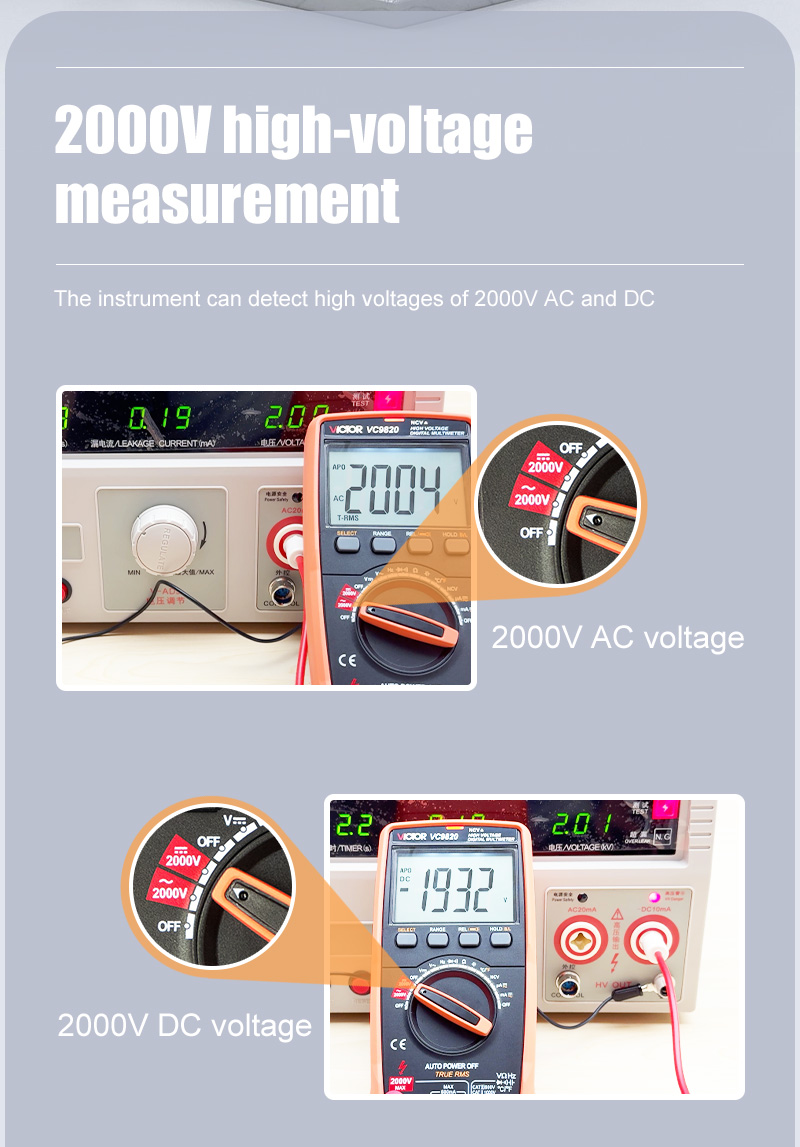

2000V |
± (1.0%+6) |
|
| AC voltage |
6V/60V/600V/750V |
± (0.8%+10) |
|
2000V |
± (1.2%+10) |
|
|
DC current |
600uA/6000uA/60mA/600mA |
± (1.0%+10) |
|
AC current |
600uA/6000uA/60mA/600mA |
± (1.5%+10) |
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
± (0.8%+5) |
|
Capacitance |
10nF/100nF/1uF/10uF/100uF/1mF/20mF |
± (3.5%+20) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
± (0.5%+10) |
|
Temperature |
(-20~1000) ℃ / (-4-1832) ℉ |
± (1.5%+15) |
|

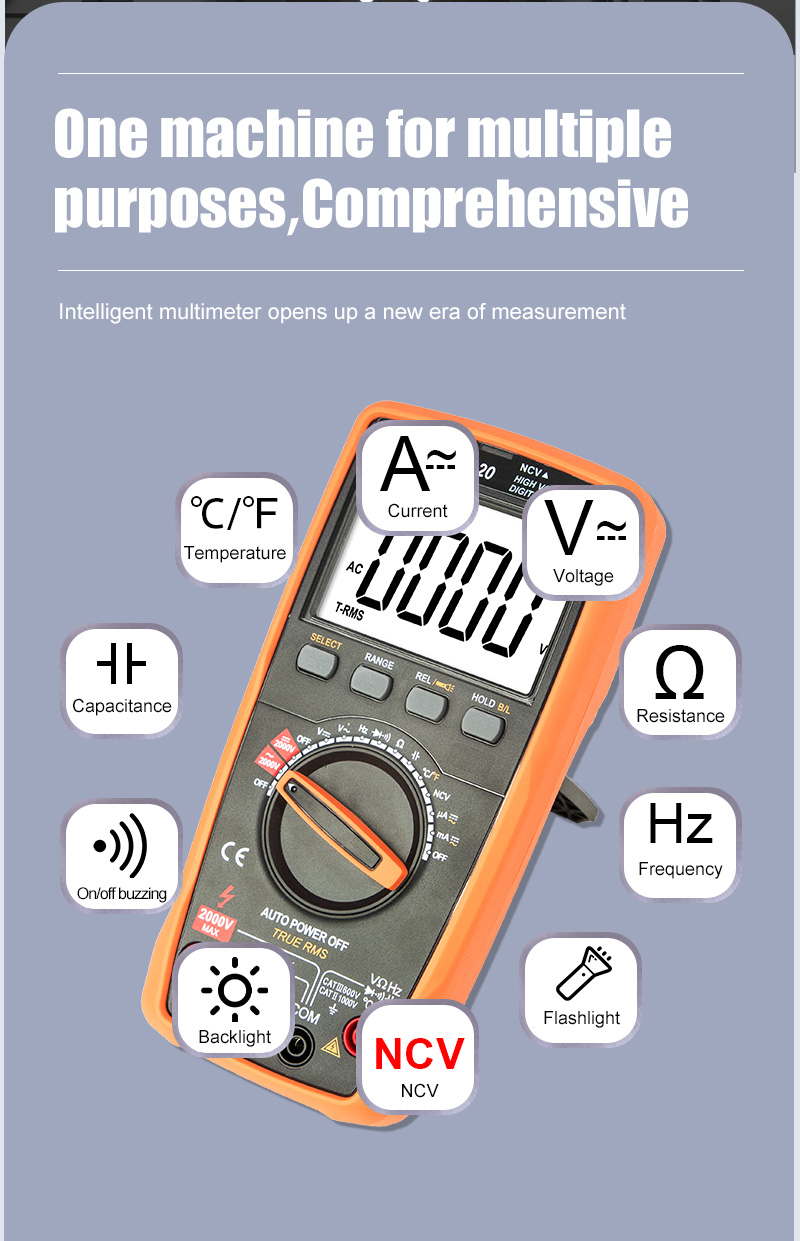

Features |
|
|
Model |
9820 |
|
Diode |
√ |
|
Continuity buzzer |
√ |
|
Low battery indication |
√ |
|
Backlight |
√ |
|

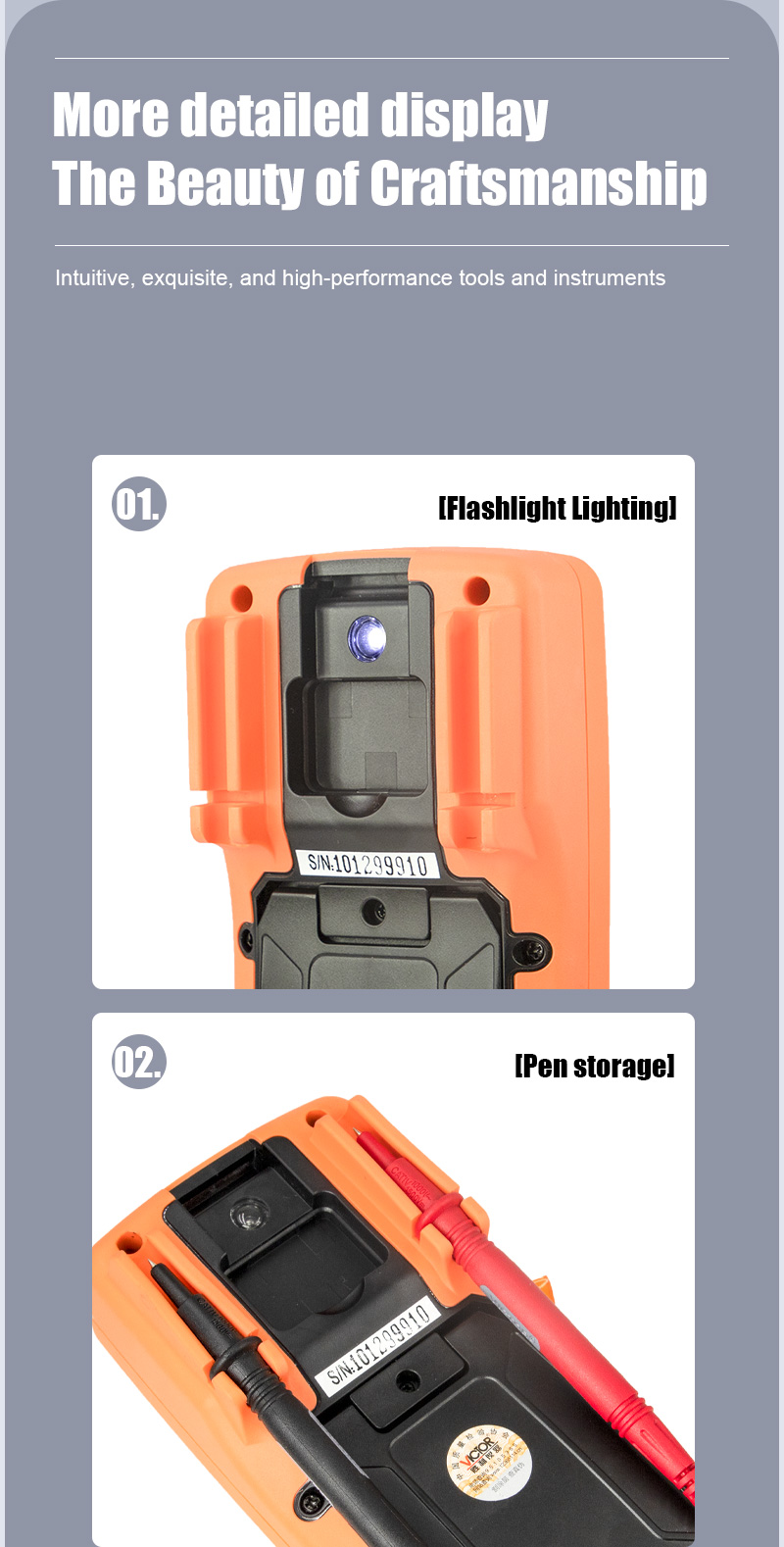

Flash light |
√ |
|
NCV (non-contact voltage detection) |
√ |
|
Data hold |
√ |
|
Relative measurement |
√ |
|
True RMS |
√ |
|
Auto power off |
√ |
|
Shockproof protection |
√ |
|
Storage condition |
Temperature (-20 - 60) ℃,humidity<85%RH |
|
Operating condition |
Temperature (0 - 40) ℃, humidity<75%RH |
|

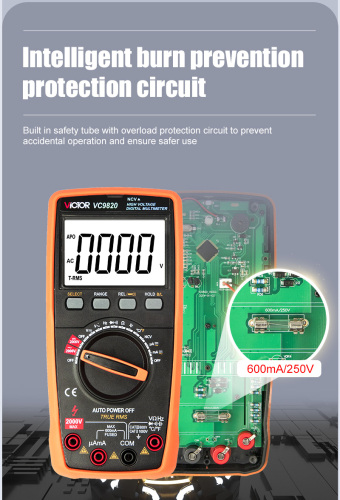

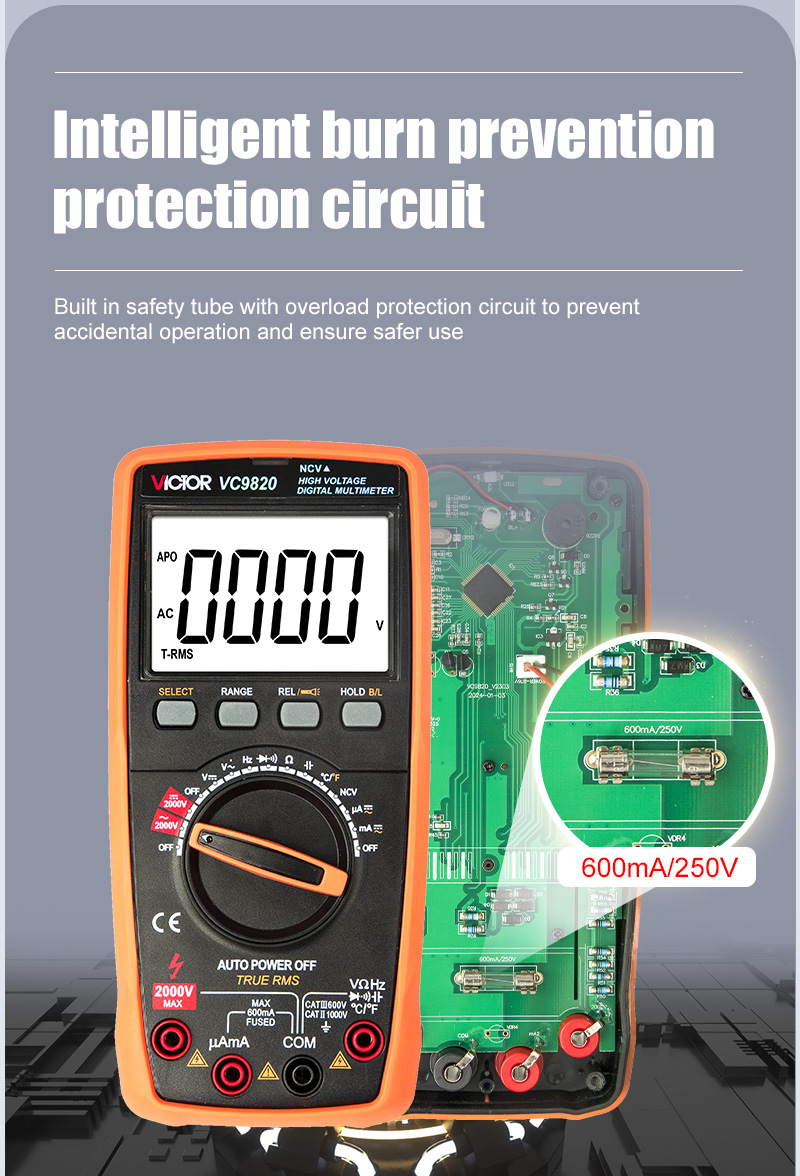

Overload protection |
OL |
|
Input impedance |
10МΩ |
|
Sampling rate |
3 times/s |
|
AC frequency response |
40~1000Hz |
|
Operation way |
Auto range |
|

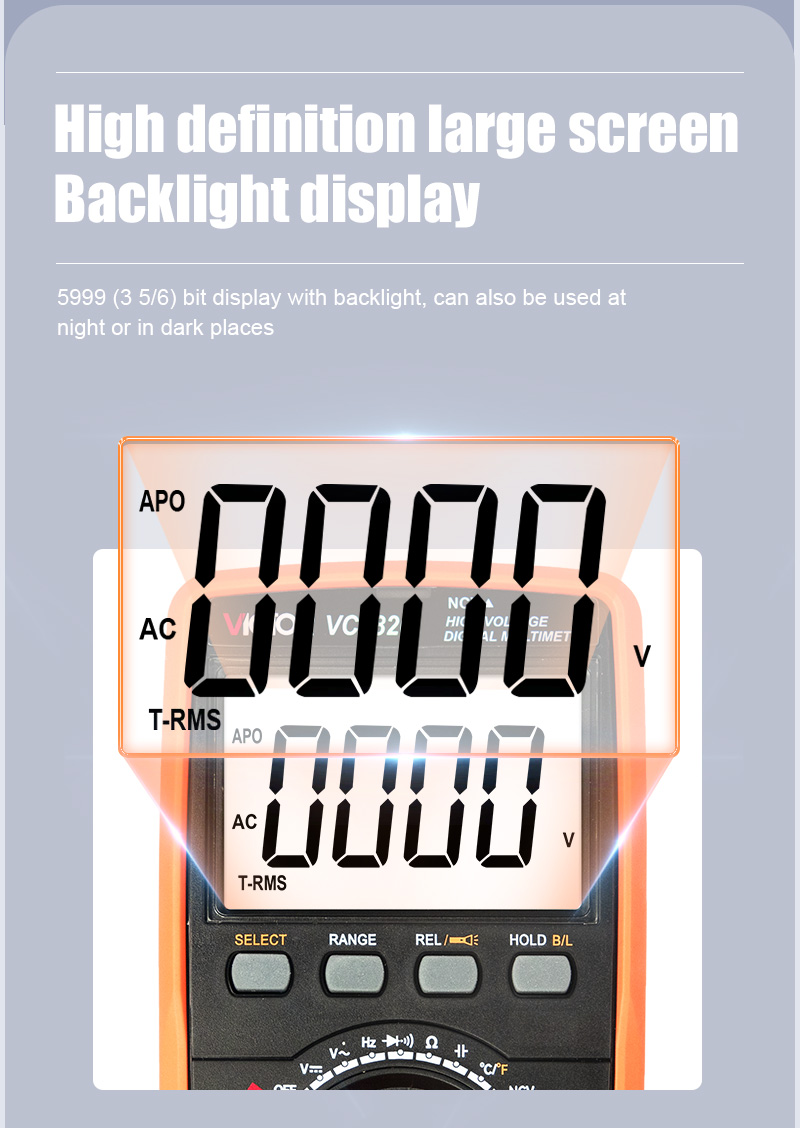

Max. Display |
5999 (3 5/6) auto polarity indication |
|
General Information |
|
|
Model |
9820 |
|
Power supply |
4x 1.5V AAA batteries |
|
Product size |
186mmX92mmX52 mm |
|
Product weight |
395g |
|
Standard accessories |
Manual, batteries, test leads |
9820 Catalog
