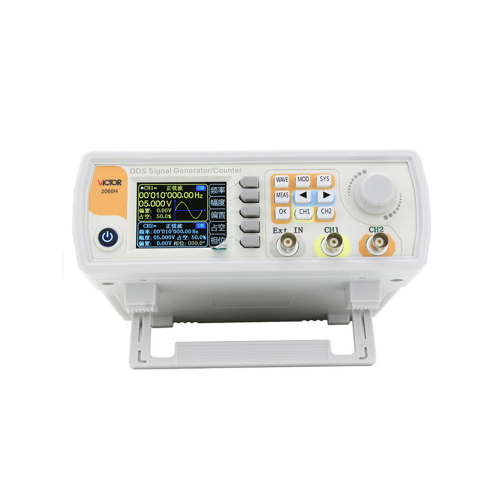

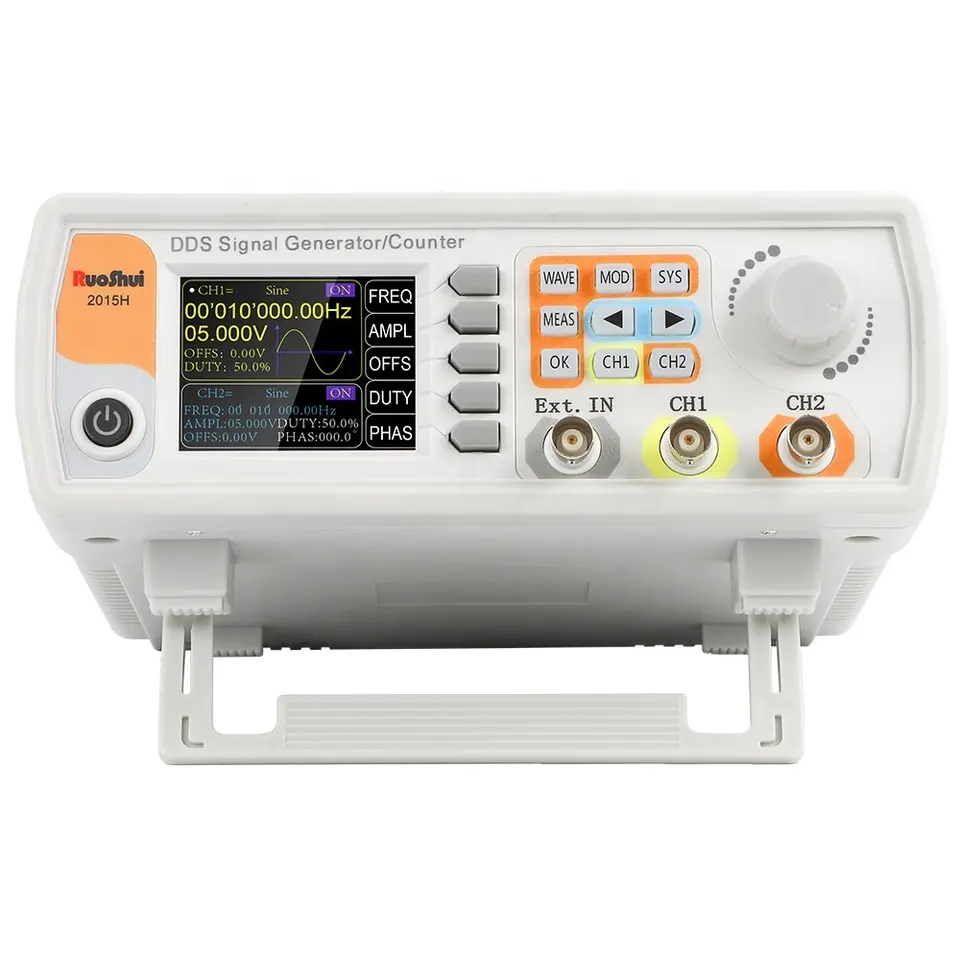

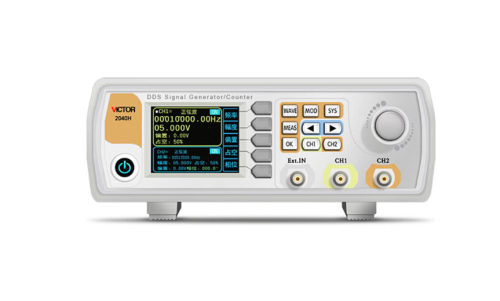

Function Signal Generator

 Specifications

 Model

 2015H

 2040H

 2060H

 Sine wave frequency

 0-15MHz

 0-40MHz

 0-60MHz

 Square/Triangle wave frequency

 0-15MHz

 0-15MHz

 0-15MHz

 Pulse wave frequency
 TTL digital wave frequency
 Arbitrary wave frequency

 0-6MHz

 0-6MHz

 0-6MHz

 Pulse width adjustment

 150nS-4000S

 40nS-4000S

 30nS-4000S

 Square wave rise time

 ≤15ns

 ≤15ns

 Min. frequency resolution

 0.01uHz(0.00000001Hz)

 Frequency accuracy

 ±20ppm

 Frequency stability

 ±1ppm/3hours

 Wave Form Output

 Output impedance

 50Ω±10%(Typical)

 Protection

 All signal outputs can work with 60 when the load is short circuited

 Offset

 Offset adjustment range

 Output amplitude>2V                -9.99V~9.99V
 0.2V

     -2.5V~2.5V


0



-0.25V~0.25V

 Offset resolution

 0.01V

 Phase

 Phase adjustment range

 0~359.9〫

 Phase resolution

 0.1〫

 TTL/CMOS Output

 Low level

 <0.3V

 High level

 1V~10V

 Level rise/Fall time

 ≤20ns

 Measurement

 Frequency function

 Range 1Hz~100MHz/Gate time 0.01S~10s continuous adjustment

 Counter function

 Range: 0-4294967295 / DC/AC coupling / Manual operation

 Input signal voltage range

 2vpp~20vpp

 Pulse measurement

 Resolution 0.01us, up to 20s

 Cycle measurement

 Resolution 0.01us, up to 20s

 Sweep

 Sweep channel

 CH1 or CH2

 Sweep type

 Linear sweep, Logarthmic sweep

 Sweep time

 0.1s~999.9s

  Setting range

 Any setting between the Max. output frequency of the corresponding model of the starting point (0.01Hz) and the end point

 Sweep direction

 Forward/Reverse/Round trip

 Trigger

 Number of pulses

 1-1048575

 Trigger Mode

 Manual/CH2/External (AC)/External (DC)

 Features

 Wave Form Features

 Wave form type

 Sine/Square/Pulse (adjustable duty cycle, precise adjustment of pulse width and period)/
 Triangular/Partial Sine/CMOS/DC Level (set DC amplitude by adjusting offset)/
 Half/ Full/Positive Staircase/Anti-ladder/Noise/Exponential Rise/Exponential Drop /Multi-sonic / Symplectic Pulse/Lorenz Pulse/60 arbitrary Wave forms

 Wave form length

 2048 points

 Wave form sampling rate

 266Msa/s

 Wave form vertical resolution

 14 bits

 Sine wave

 Total harmonic distortion <0.8%(20Hz-20KHz.0dBm)

 Square/Pulse wave

 Overshoot  ≤5%

 Pulse wave

 Duty cycle adjustment   0.1%-99.9%

 Output Features

  Sine wave amplitude

 Frequency≤10MHz                         2mV-20Vpp
 10MHz≥Frequency≤30MHz            2mV-10Vpp
 Frequency≥30MHz                         2mV-5Vpp

 Square/Triangle wave amplitude

 Frequency≤10MHz                         2mV-20Vpp
 10MHz≥Frequency≤30MHz            2mV-5Vpp

 Amplitude resolution

 1mV

 Amplitude stability

 ±0.5%/5hours

 Flatness of amplitude

 ±0.5%(<10MHz);±10%(>10MHz)

 General Information

 Model

 2060H

 Display

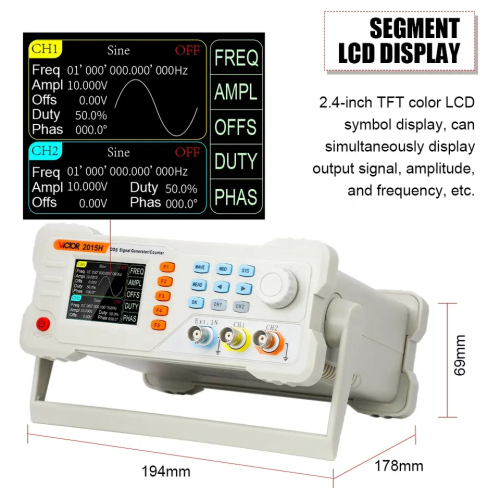

 2.4-inch TFT Colored LCD

 Storage and Load

 QTY:100 / Position: 00 to 99

 Arbitrary Wave

 1 to 60 (15 groups by default as power on)

 Interface

 Interface mode: USB to Serial Interface

 Extension Interface: with TTL level mode serial interface for user development

 Communication speed: Standard 115200bps

 Power Supply

 DC5V±0.5V

 Product Size

 194mmx178mmx69mm

 Product Weight

 1.2kg

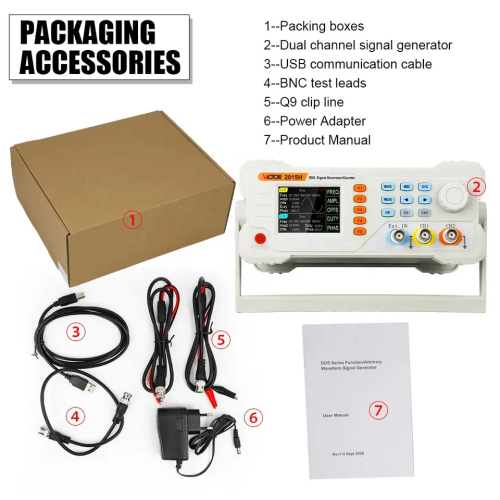

 Standard Accessories

 USB Cable/Manual/Test Leads (Clip Type)/Test Leads (Plug Type)/Software CD/AC Adaptor
