Professional Megohmmeter | Five High-Voltage Ranges in One Device
-
High-Efficiency & Versatile

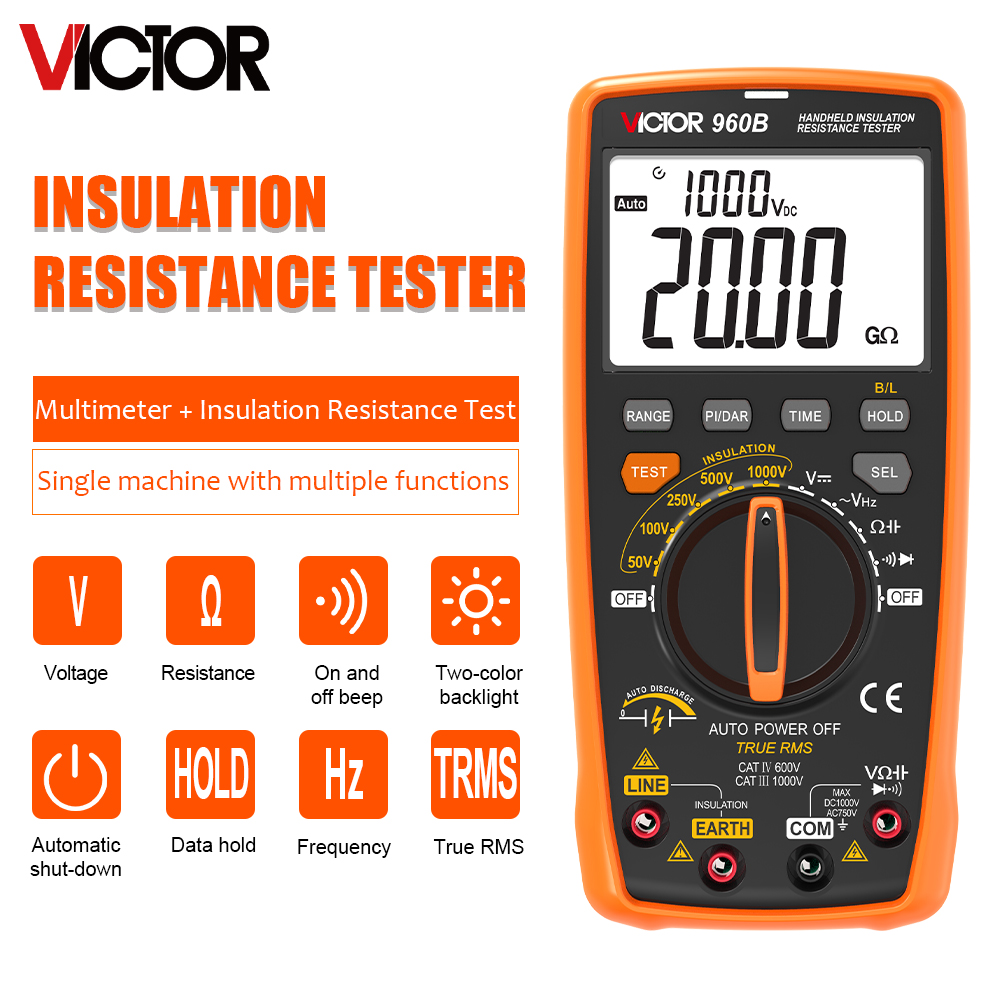

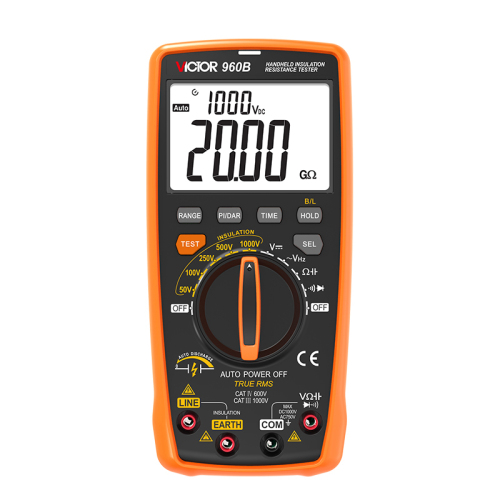

A compact two-in-one design combining a True RMS digital multimeter and a high-voltage insulation resistance tester for fast, reliable measurements in electrical maintenance and troubleshooting. -

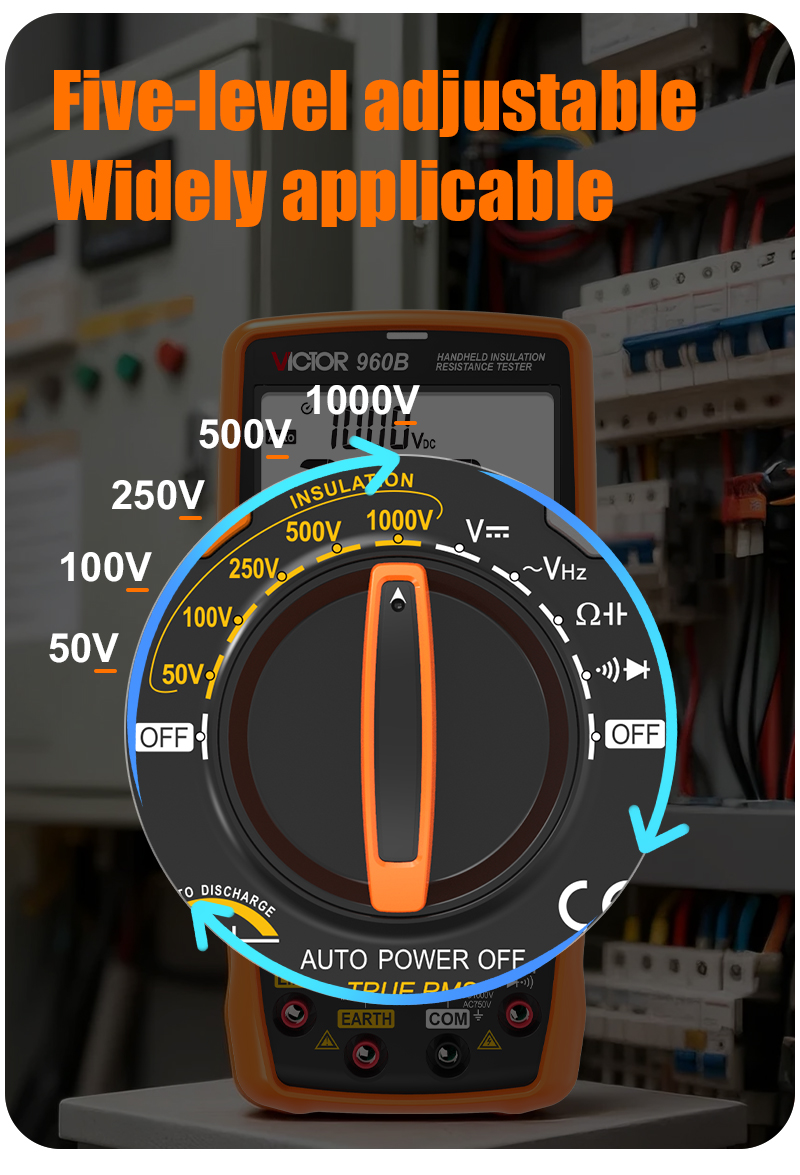

Five High-Voltage Test Ranges
Features selectable voltage levels: 50V, 100V, 250V, 500V, and 1000V for precise insulation testing across various applications. -

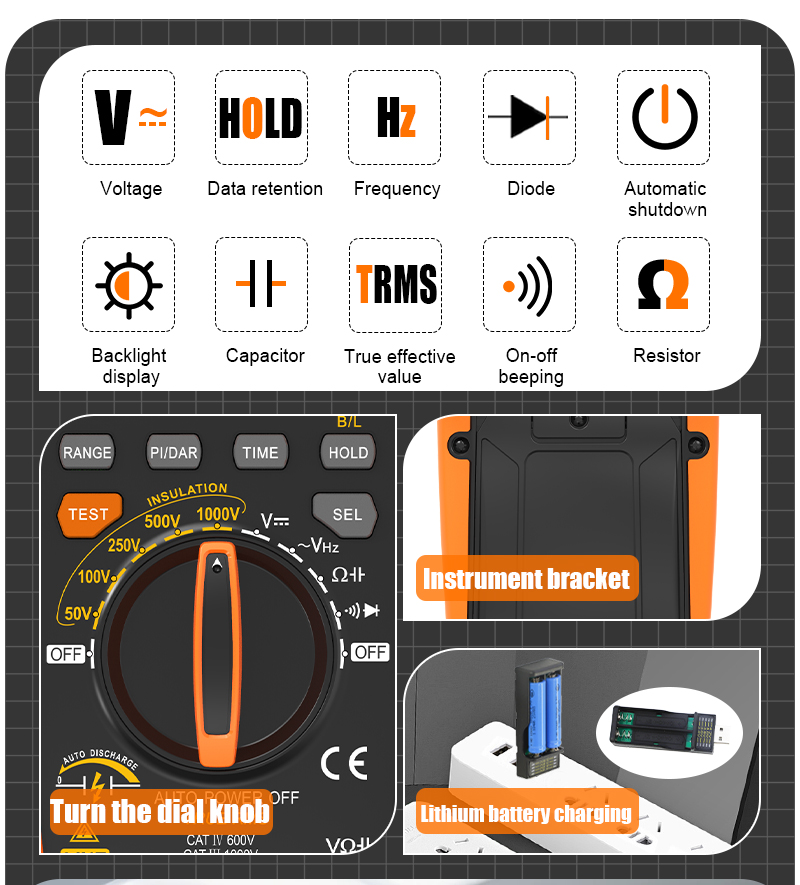

Auto Ranging & User-Friendly Functions
Equipped with auto-ranging, data hold, auto power-off, and a clear backlit display for error-free operation in different lighting conditions. -
Dual Safety & Durability
Rated to CAT II 600V and CAT III 1000V, with strong overload protection and robust construction suitable for demanding industrial and field environments. -
Enhanced Testing Capabilities
Additional functions include continuity buzzer, diode test, frequency measurement, live line detection, and earth resistance test—all in one professional-grade tool.
|

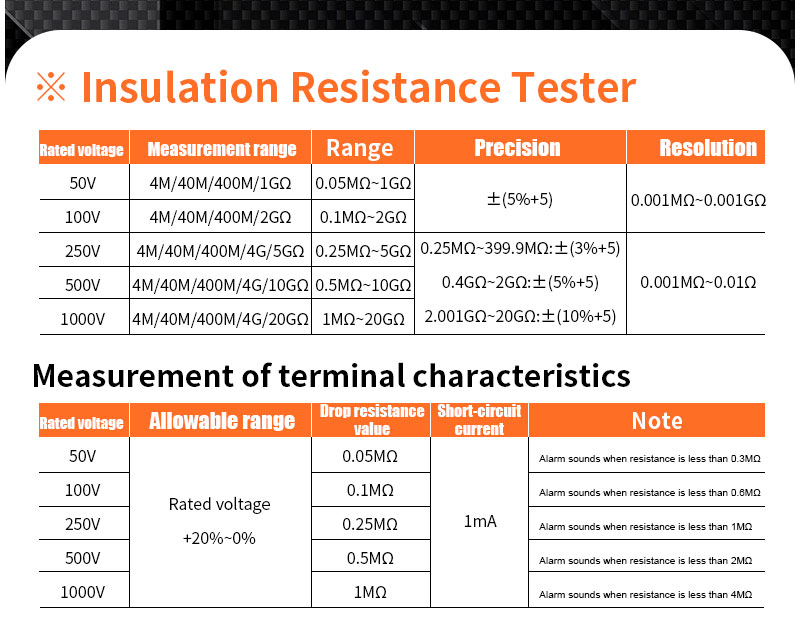

Range |
Accuracy |
Resolution |
|||||
|
50V |
4M/40M/400M/1GΩ |
0.05MΩ~1GΩ |
±(5%+5) |
0.001MΩ~0.001GΩ |
|||
|
100V |
4M/40M/400M/2GΩ |
0.1MΩ~2GΩ |
|||||
|
250V |
4M/40M/400M/4G/5GΩ |
0.25MΩ~5GΩ |
0.25MΩ~399.9MΩ |
0.001MΩ~0.01Ω |
|||
|
500V |
4M/40M/400M/4G/10GΩ |
|
|||||
|
1000V |
4M/40M/400M/4G/20GΩ |
1MΩ~20GΩ |
|||||
|
Terminal measurement |
|||||||
|
Rated Voltage |
Open Circuit Voltage Allowable Range |
Drop Resistance Value |
Note |
||||
|
50V |
Rated voltage |
0.05MΩ |
about 1mA |
<0.3MΩ,buzzer alarm |
|||
|
100V |
0.1MΩ |
<0.6MΩ,buzzer alarm |
|||||
|
250V |
0.25MΩ |
<1MΩ,buzzer alarm |
|||||
|
500V |
0.5MΩ |
<2MΩ,buzzer alarm |
|||||
|
1000V |
1MΩ |
<4MΩ,buzzer alarm |
|||||
|

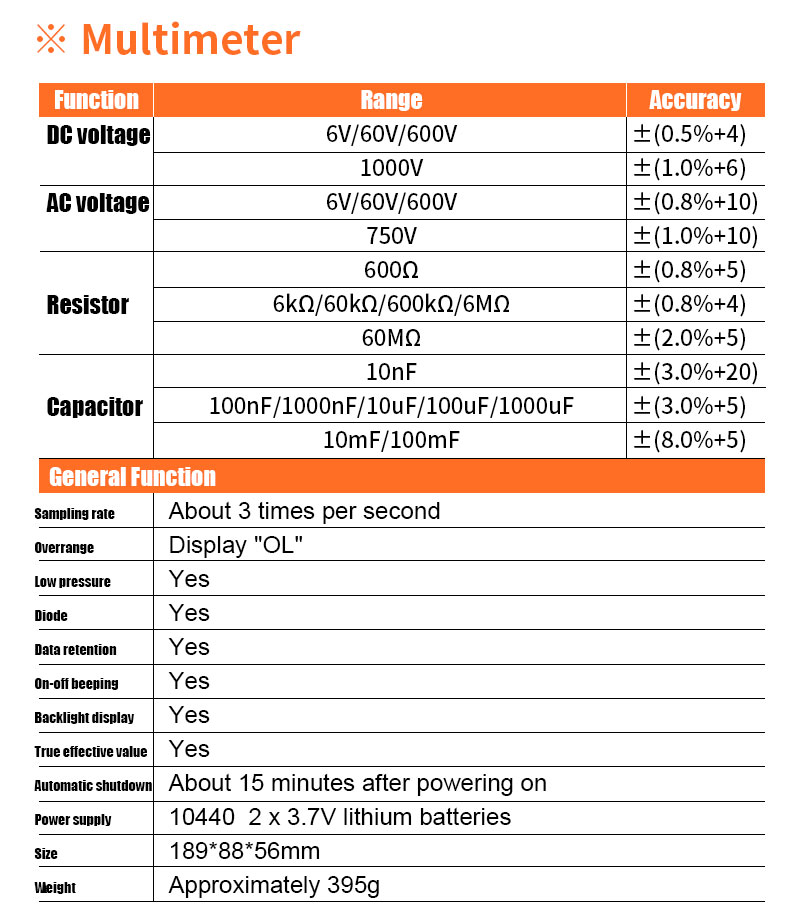

Digital Multimeter |
|||||||
|
Function |
Range |
Accuracy |
|||||
|
DC voltage |
6V/60V/600V |
±(0.5%+4) |
|||||
|
1000V |
±(1.0%+6) |
||||||
|
AC voltage |
6V/60V/600V |
±(0.8%+10) |
|||||
|
750V |
±(1.0%+10) |
||||||
|
Resistance |
600Ω |
±(0.8%+5) |
|||||
|
6kΩ/60kΩ/600kΩ/6MΩ |
±(0.8%+4) |
||||||
|
60MΩ |
±(2.0%+5) |
||||||
|
Capacitance |
10nF |
±(3.0%+20) |
|||||
|
100nF/1000nF/10uF/100uF/1000uF |
±(3.0%+5) |
||||||
|
10mF/100mF |
±(8.0%+5) |
||||||
|
Features |
|||||||
|
Sampling rate |
3 times/ second |
||||||
|
Overrange indication |
displays OL |
||||||
|
Low voltage indication |
yes |
||||||
|
Diode test |
yes |
||||||
|
Data hold |
yes |
||||||
|
Continuity beep |
yes |
||||||
|
Backlight display |
yes |
||||||
|
True RMS |
yes |
||||||
|

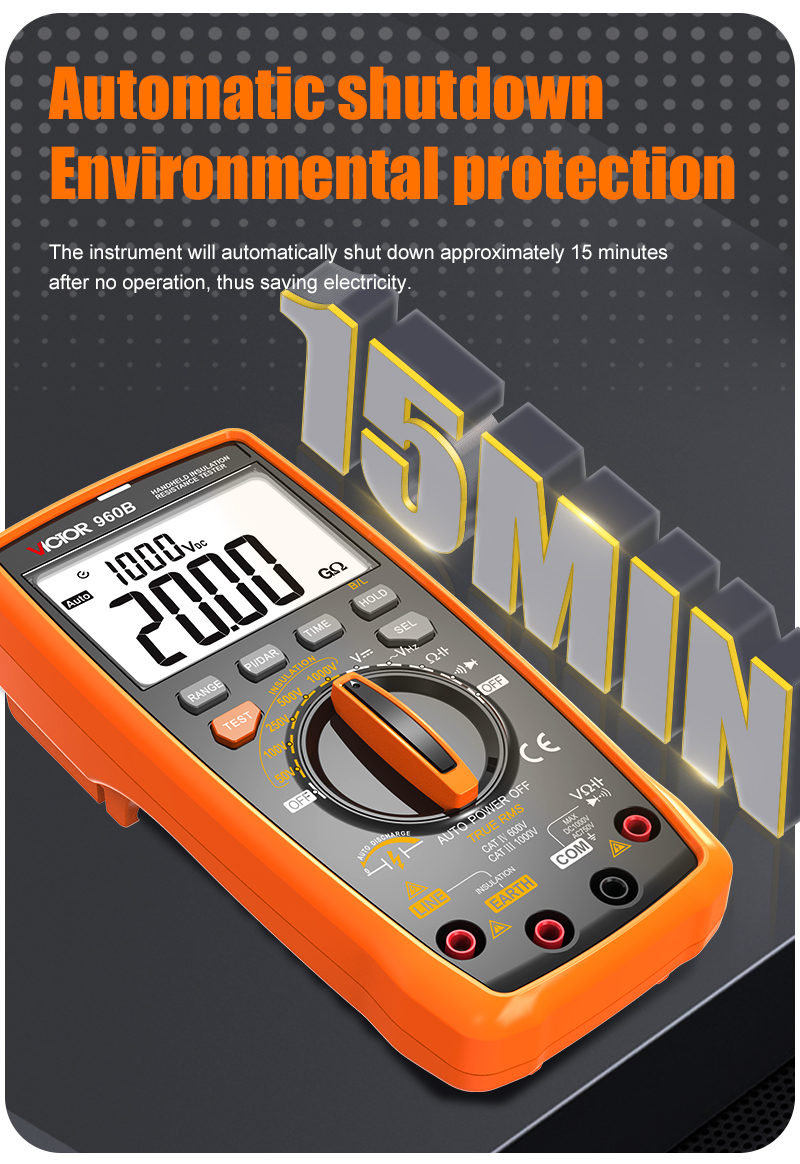

Auto power off |
15 minutes without operation |
||||||
|
General Information |
|||||||
|
Power supply |
104403.7V*2 lithium battery |
||||||
|
Product size |
189*88*56mm |
||||||
|
Product weight |
395g |
||||||
