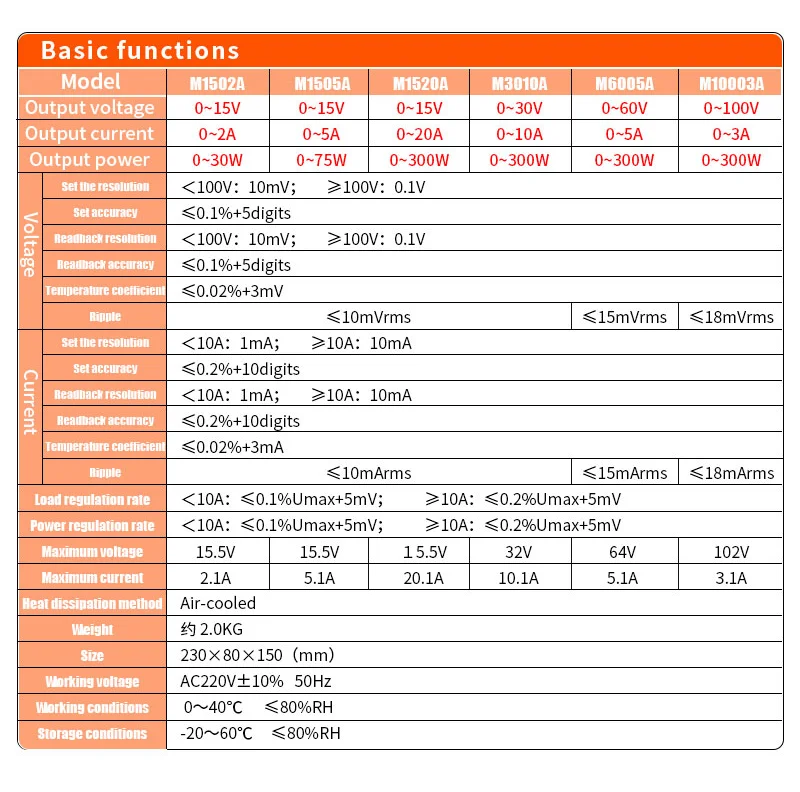

Wide model range – Six models available: M1502A (0-15V/2A/30W), M1505A (0-15V/5A/75W), M1520A (0-15V/20A/300W), M3010A (0-30V/10A/300W), M6005A (0-60V/5A/300W), and M10003A (0-100V/3A/300W)
-

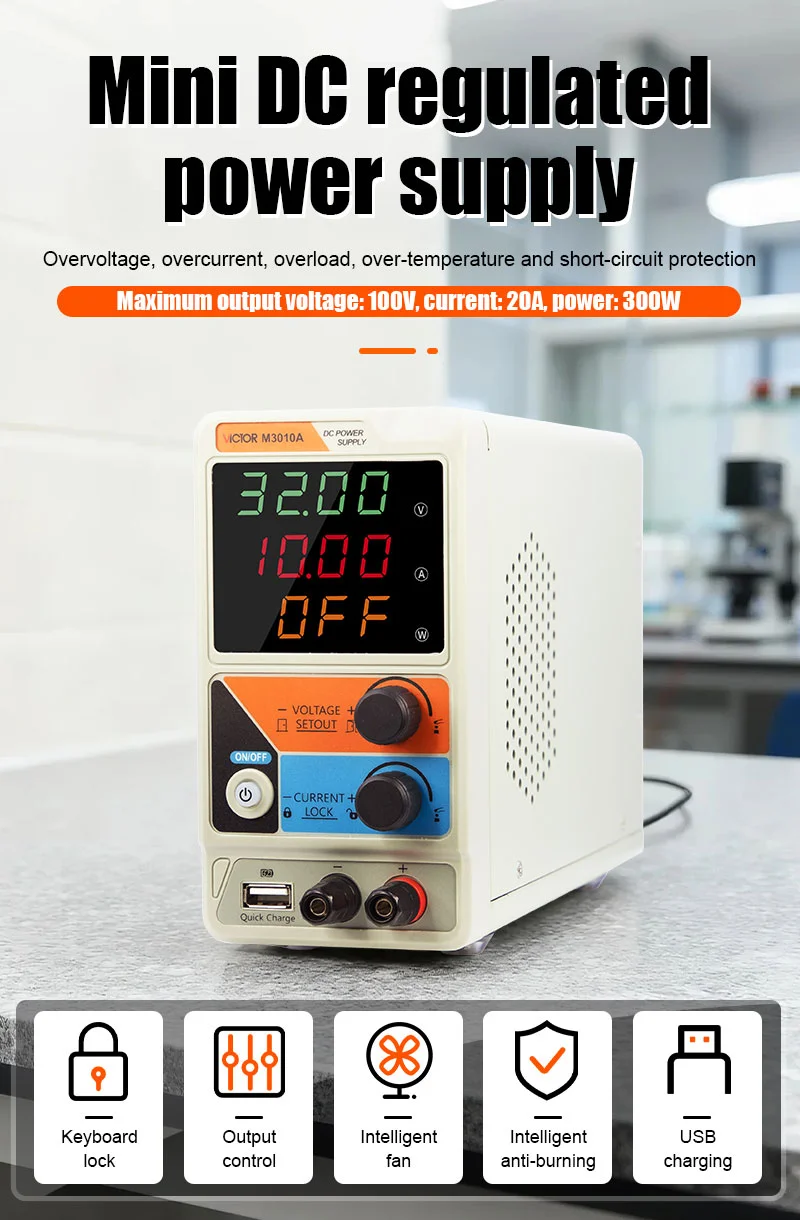

High voltage and current – Maximum output voltage 100V, maximum current 20A, maximum power 300W across the series
-
High resolution – Voltage setting/readback: 10mV (<100V) / 0.1V (≥100V); Current setting/readback: 1mA (<10A) / 10mA (≥10A)
-
High accuracy – Voltage accuracy: ≤0.1%+5 digits; Current accuracy: ≤0.2%+10 digits
-
Low ripple – Voltage ripple: ≤10-18mVrms depending on model
-
Excellent regulation – Load and power regulation rate: ≤0.1-0.2% Umax+5mV
-

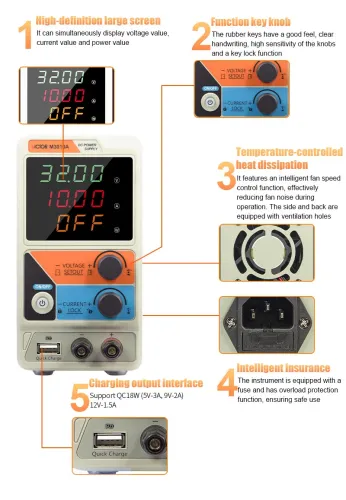

Automatic CV/CC switching – Seamless transition between constant voltage and constant current stabilization
-

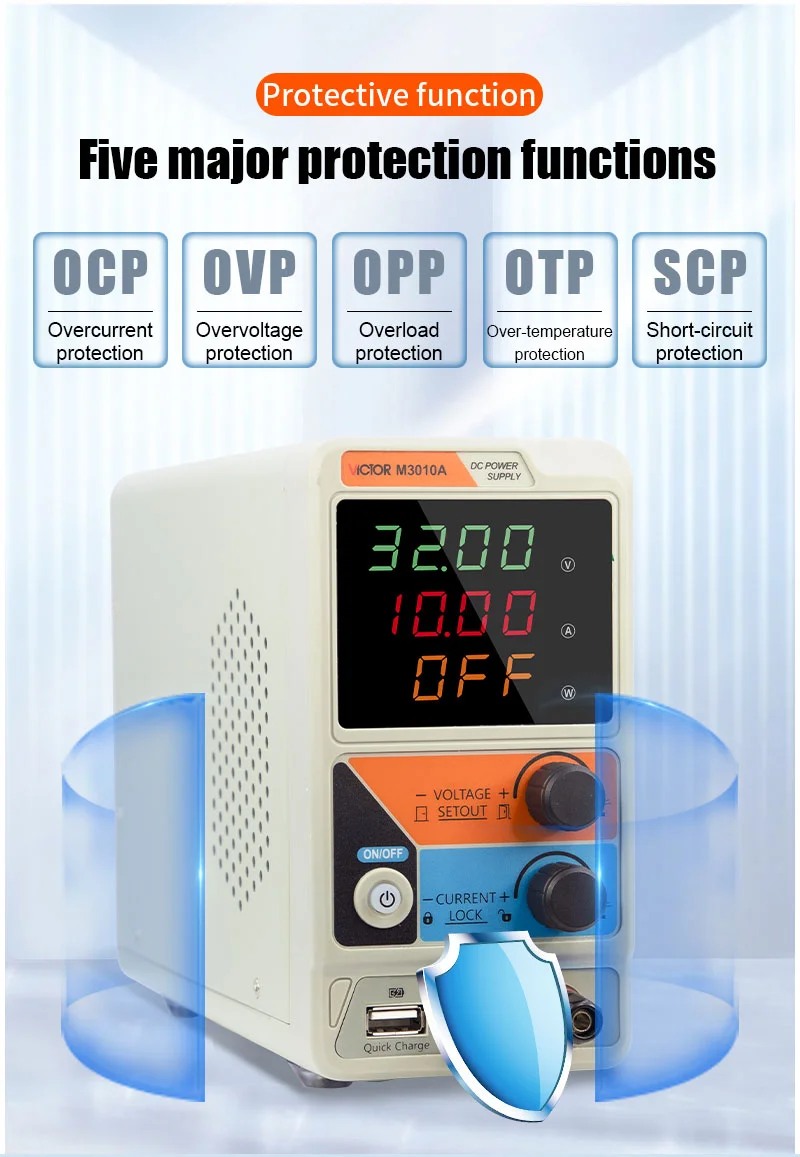

Full protection – Overvoltage, overcurrent, overload, overtemperature, and short-circuit protection for safe operation
-

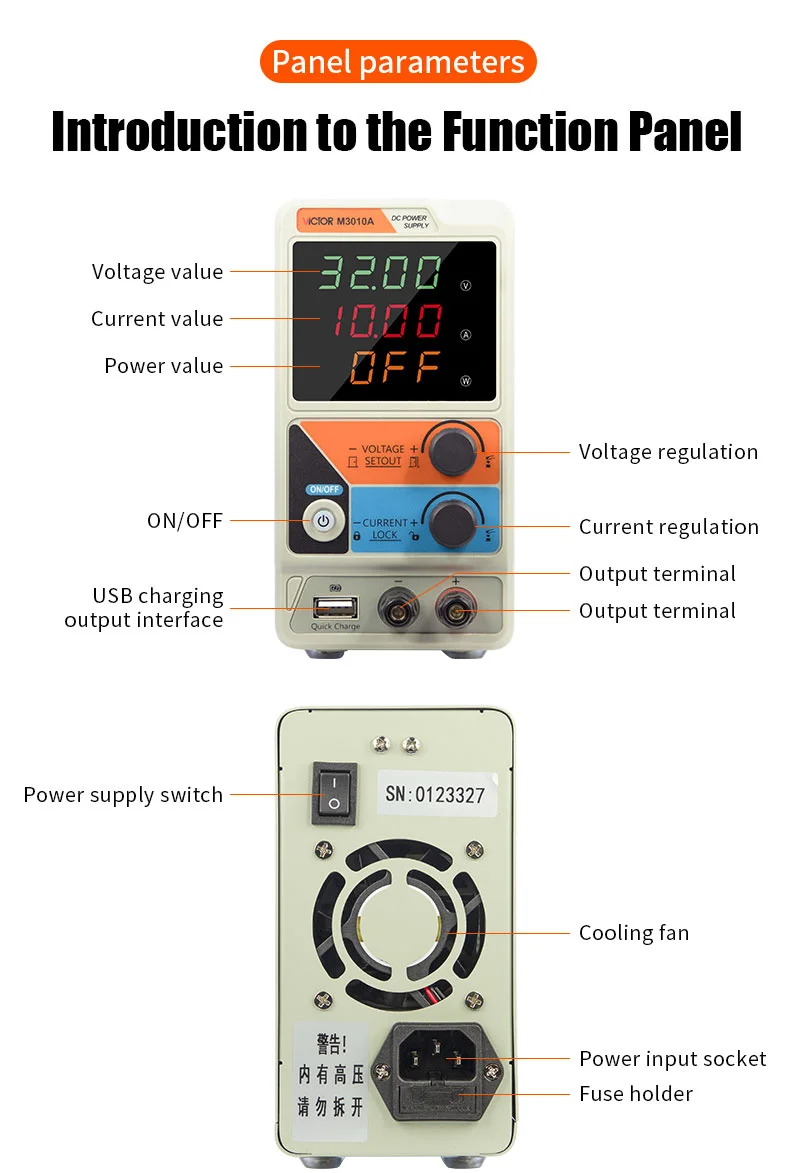

Output control switch – Independent ON/OFF button for flexible output management
-

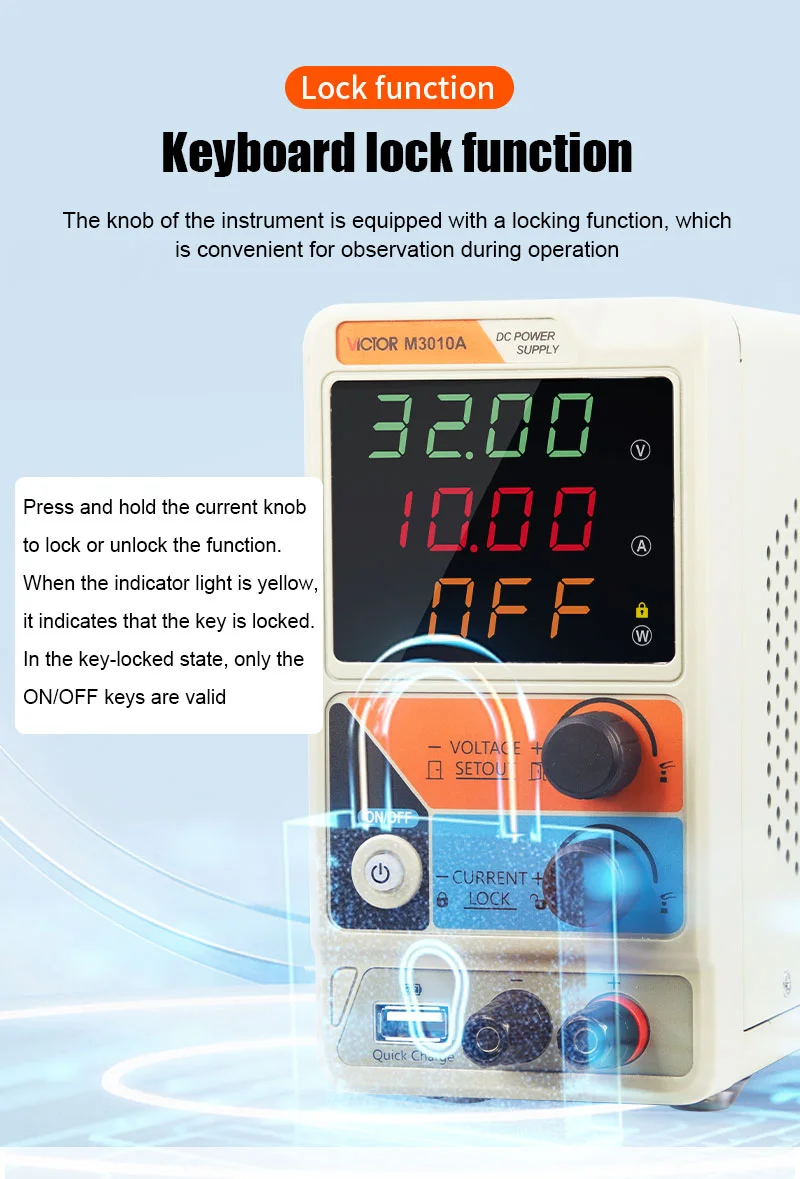

Keyboard lock – One-key lock function prevents accidental misoperation
-

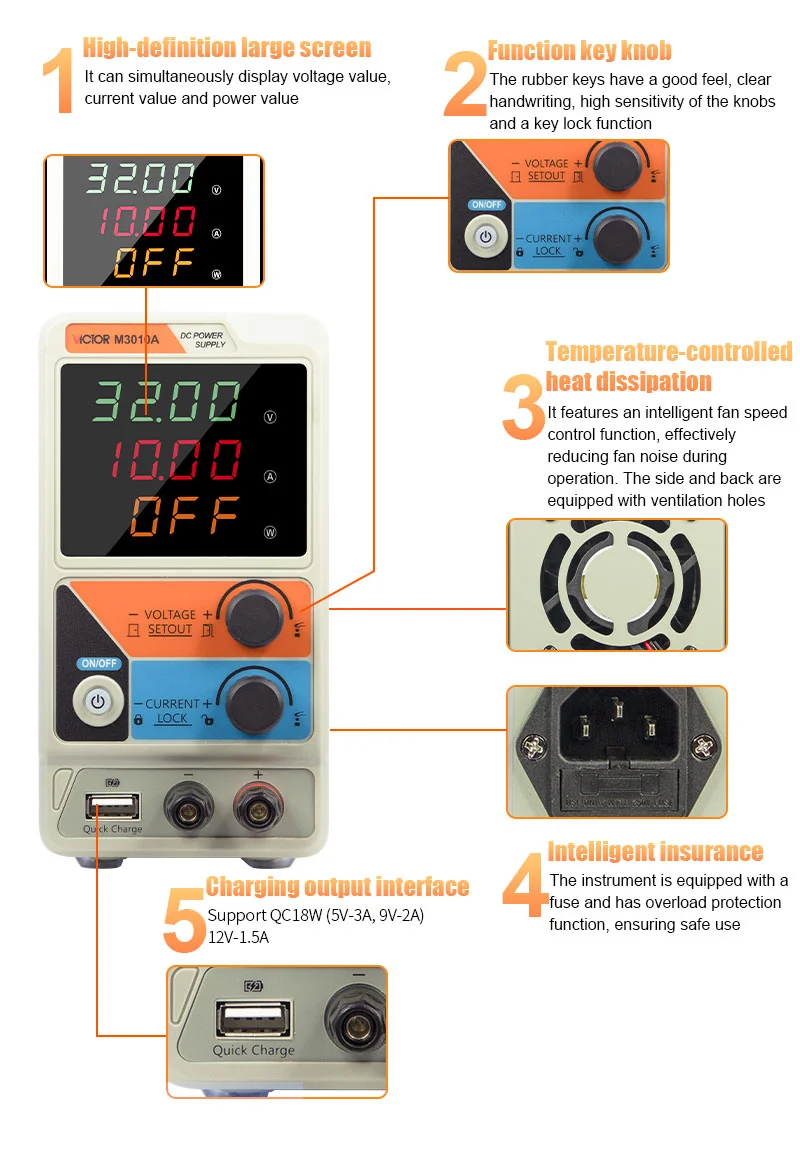

Intelligent fan – Temperature-controlled fan speed for low noise and extended fan lifespan
-
Intelligent anti-burning – Built-in protection against damage from improper use
-
Intelligent charging USB – Convenient USB port for charging external devices
-

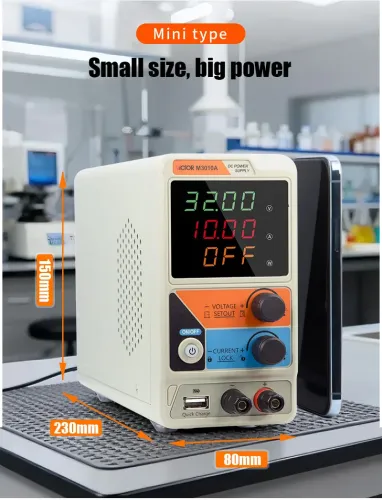

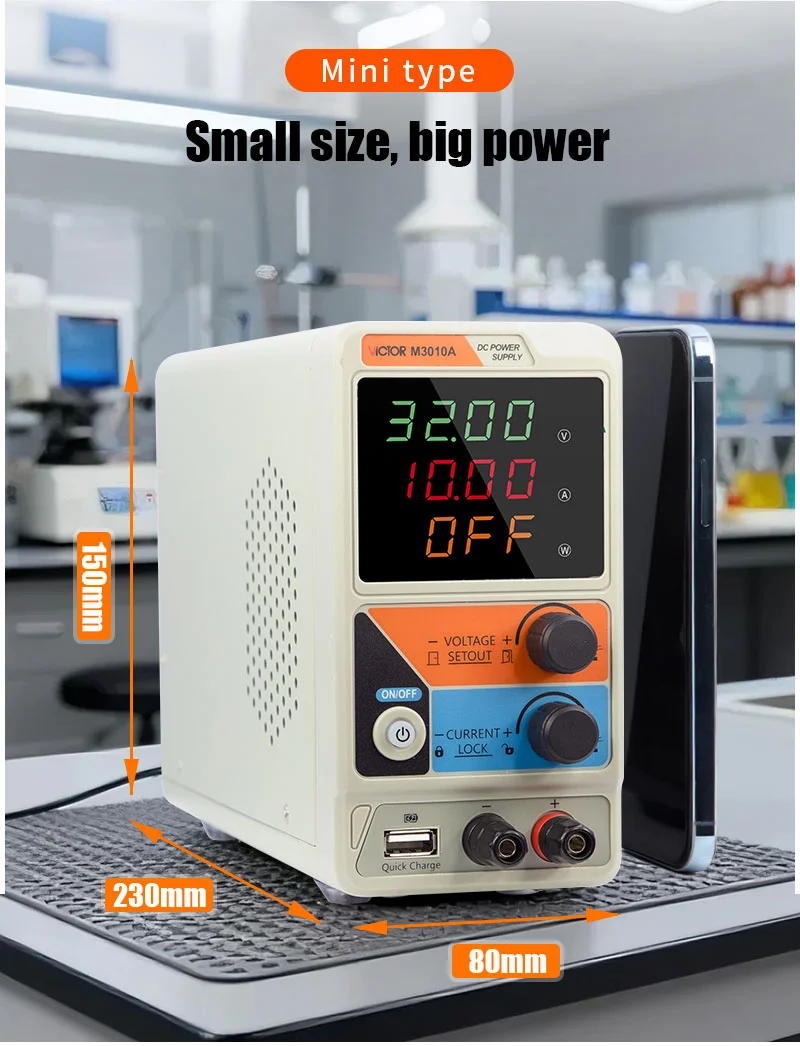

Compact and lightweight – Mini size: 230×80×150mm, weight only approximately 2.0kg, ideal for benchtop and portable use
-
Wide operating conditions – Working temperature: 0-40°C, humidity ≤80%RH; storage: -20-60°C, humidity ≤80%RH
-

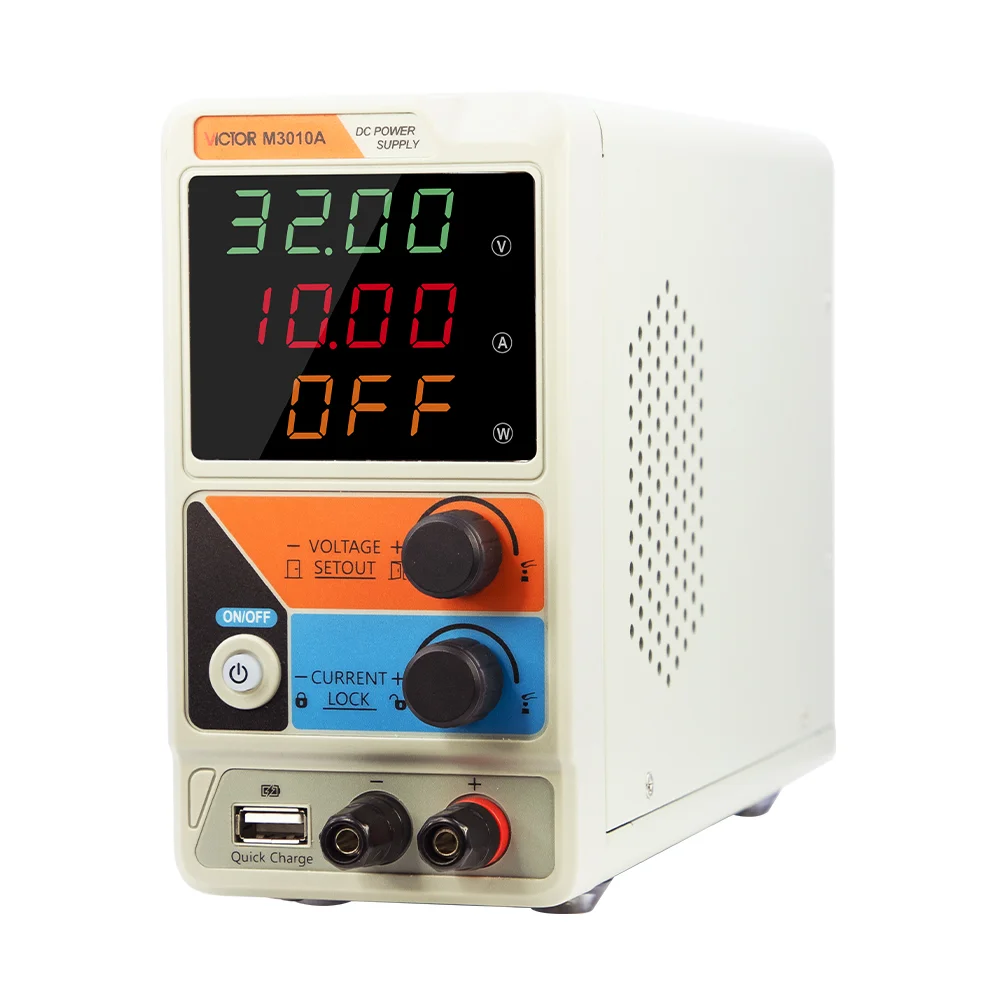

Quick charge support – Labeled "Quick Charge" on M3010A model for fast charging applications
-
Air-cooled design – Efficient heat dissipation for reliable continuous operation
-
Standard AC input – AC220V±10%, 50Hz
