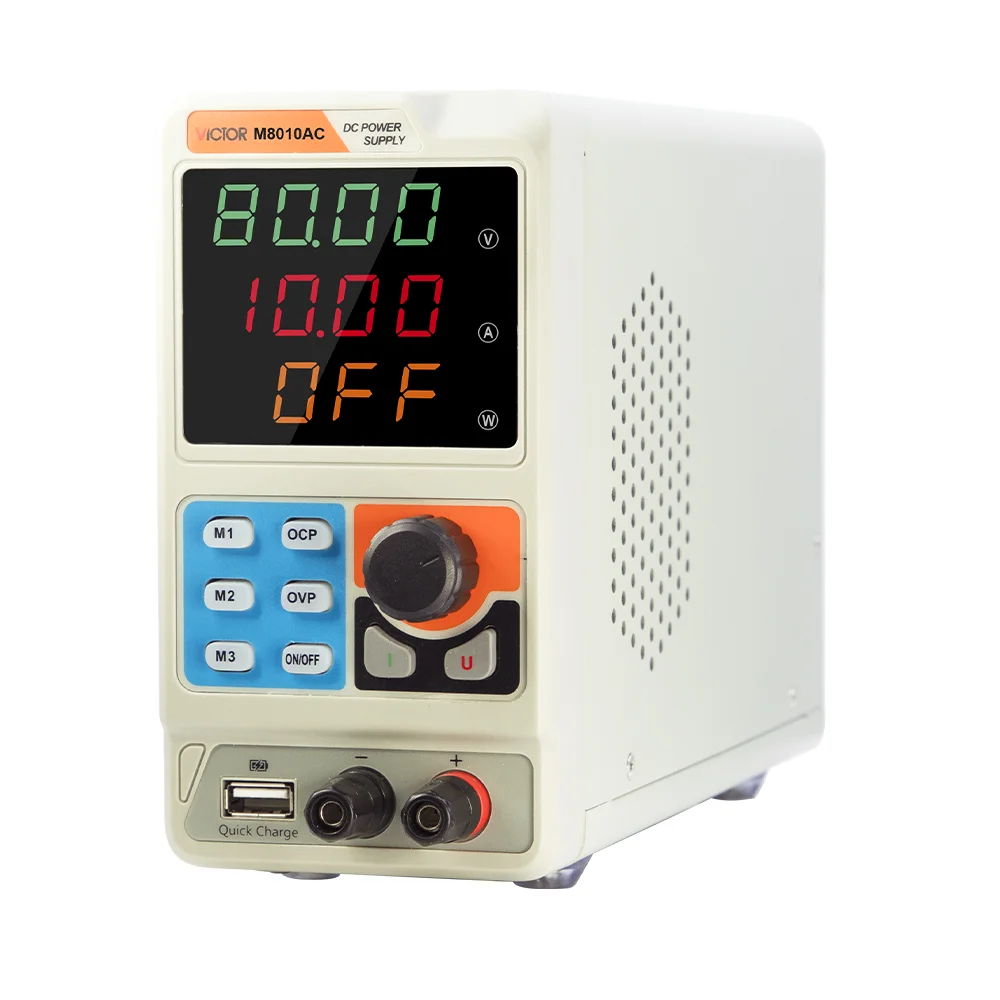

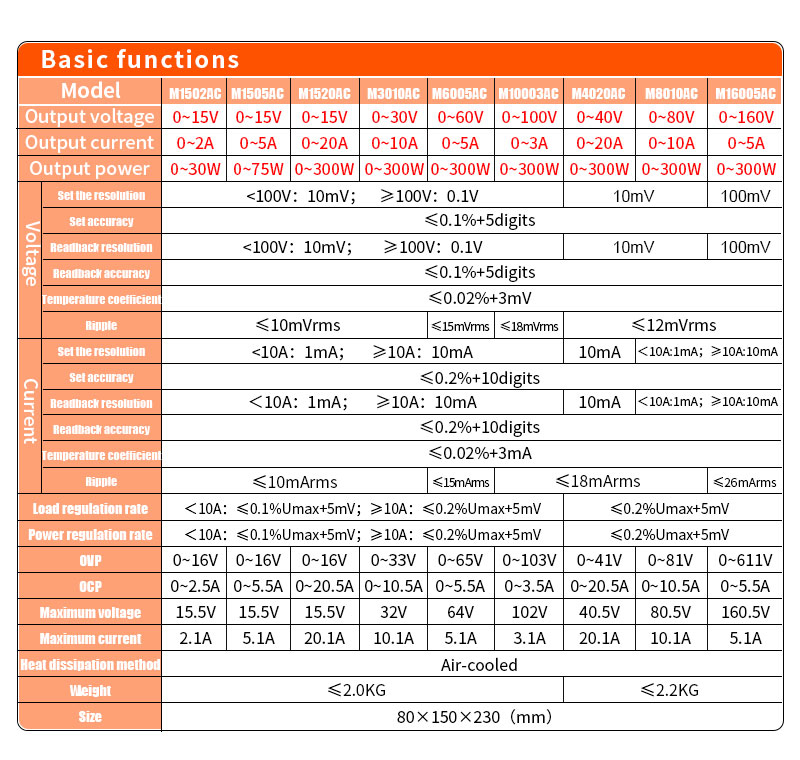

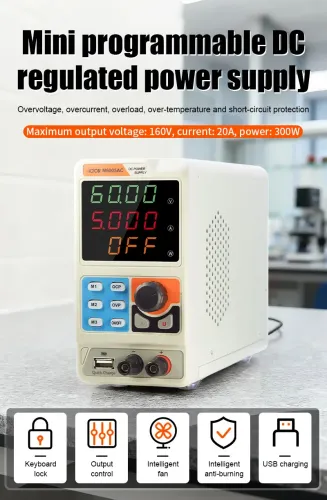

Wide model range – Nine models available: M1502AC (15V/2A/30W), M1505AC (15V/5A/75W), M1520AC (15V/20A/300W), M3010AC (30V/10A/300W), M6005AC (60V/5A/300W), M10003AC (100V/3A/300W), M4020AC (40V/20A/800W), M8010AC (80V/10A/800W), and M16005AC (160V/5A/800W)
-
High maximum specs – Maximum output voltage 160V, maximum current 20A, maximum power 800W across the series
-
High resolution – Voltage setting/readback: 10mV (<100V) / 0.1V (≥100V); Current setting: 1mA (<10A) / 10mA (≥10A)
-
High accuracy – Voltage readback accuracy: ≤0.1%+5 digits; Current readback accuracy: ≤0.2%+10 digits
-
Low ripple – Voltage ripple: ≤10-18mVrms; Current ripple: ≤10-26mArms depending on model
-
Excellent regulation – Load and power regulation rate: ≤0.1-0.2% Umax+5mV
-
Adjustable OVP & OCP – Overvoltage and overcurrent protection thresholds are programmable per model for customized safety
-
Automatic CV/CC switching – Seamless transition between constant voltage and constant current stabilization
-

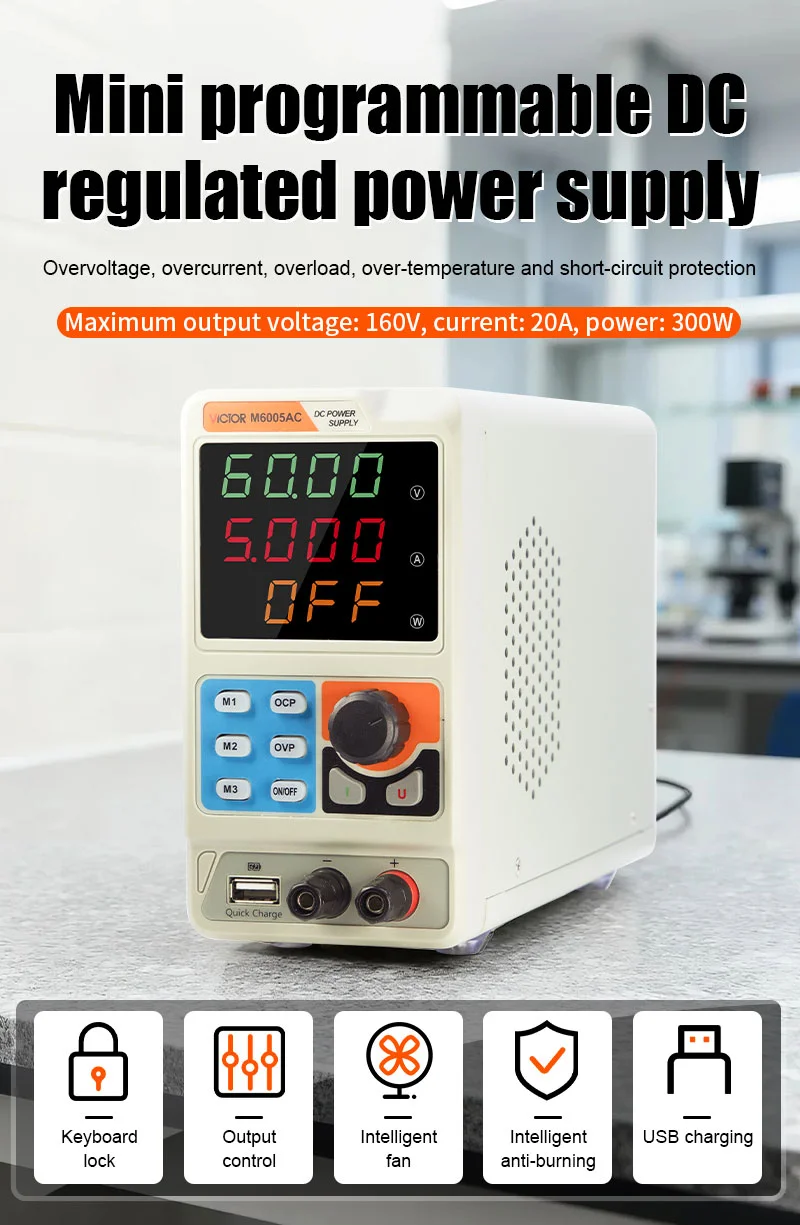

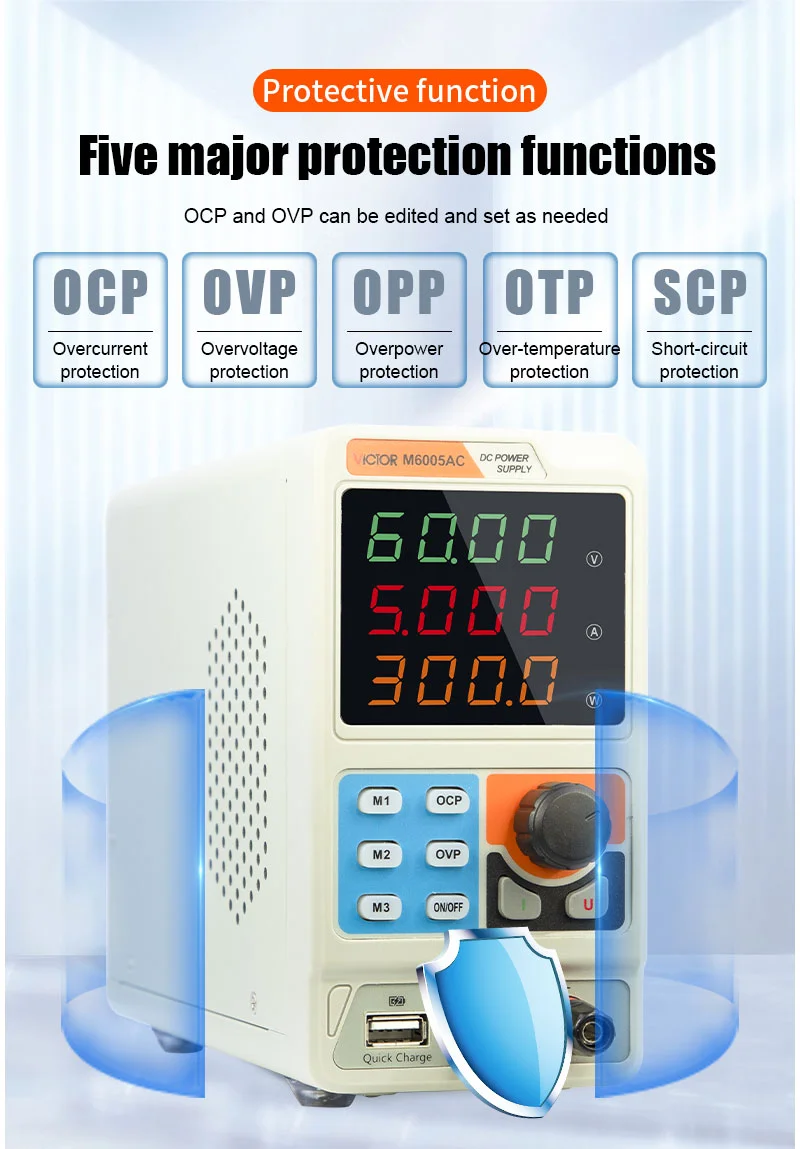

Full protection – Overvoltage, overcurrent, overload, overtemperature, and short-circuit protection
-
Output control switch – Independent ON/OFF button for flexible output management
-

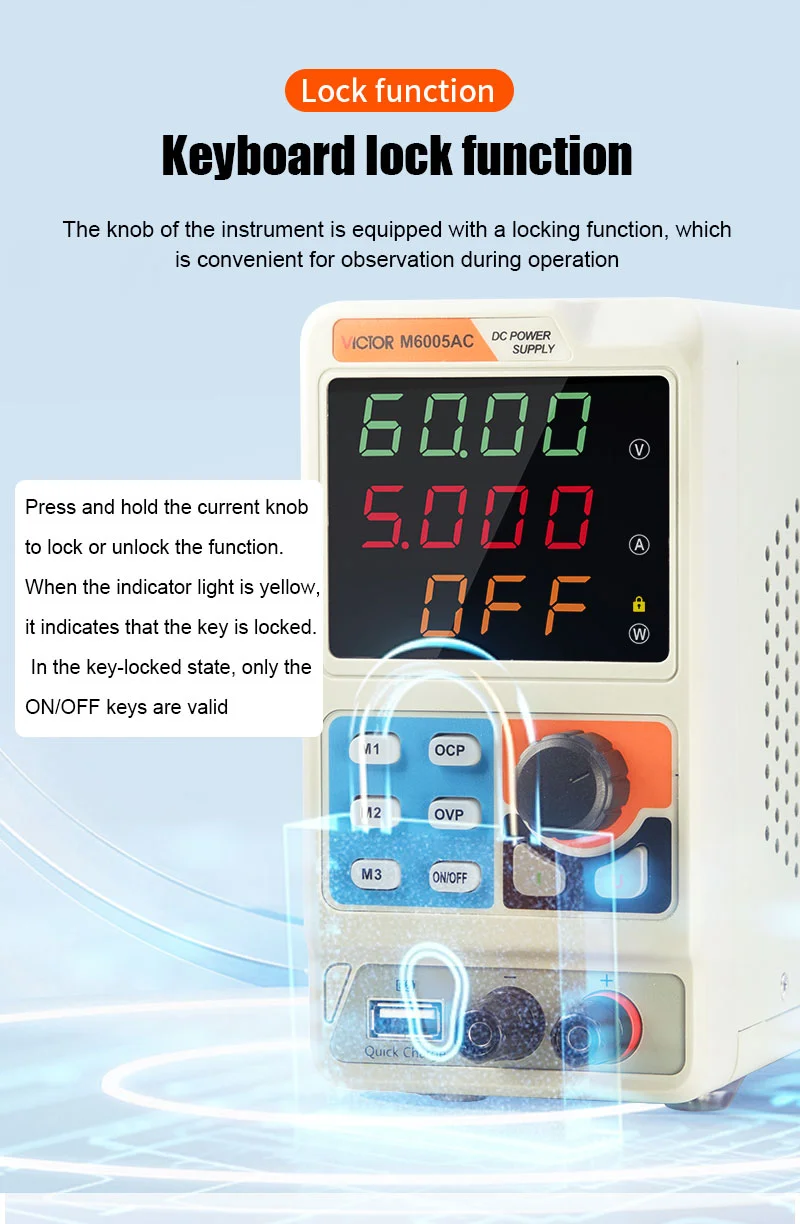

Keyboard lock – One-key lock function prevents accidental misoperation
-

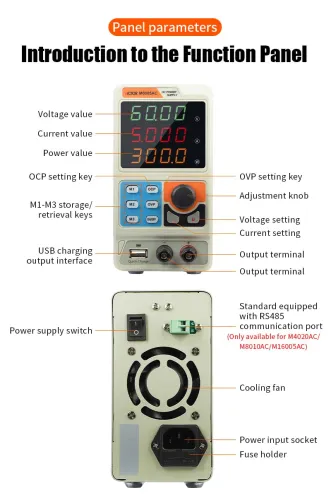

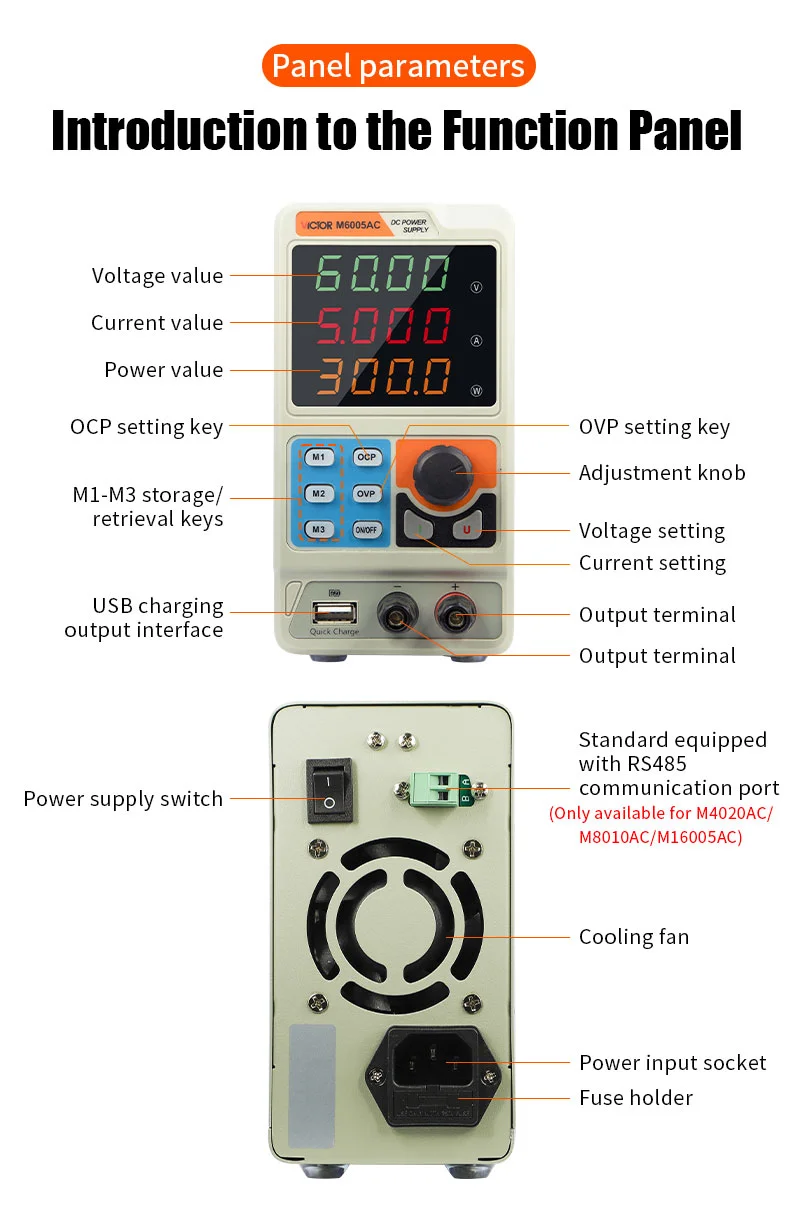

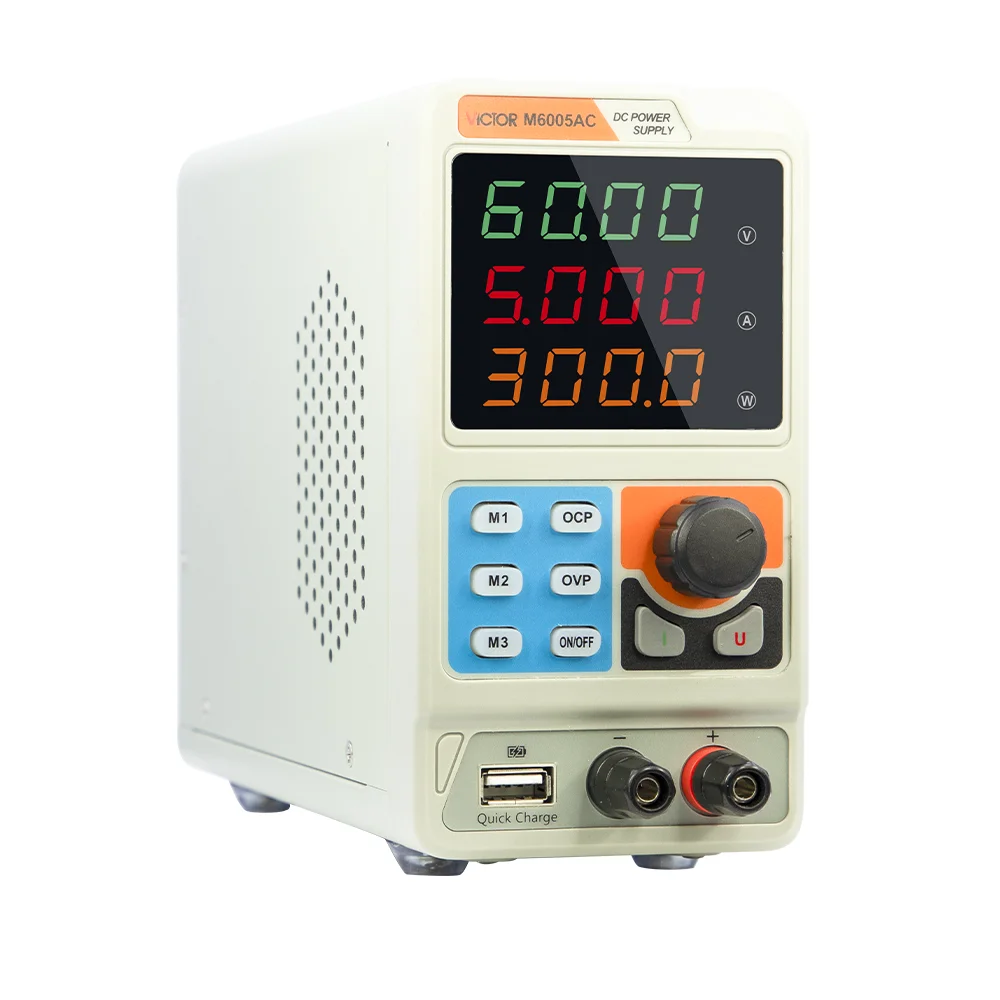

Three memory presets – M1, M2, M3 quick recall buttons for frequently used settings (shown on M6005AC front panel)
-

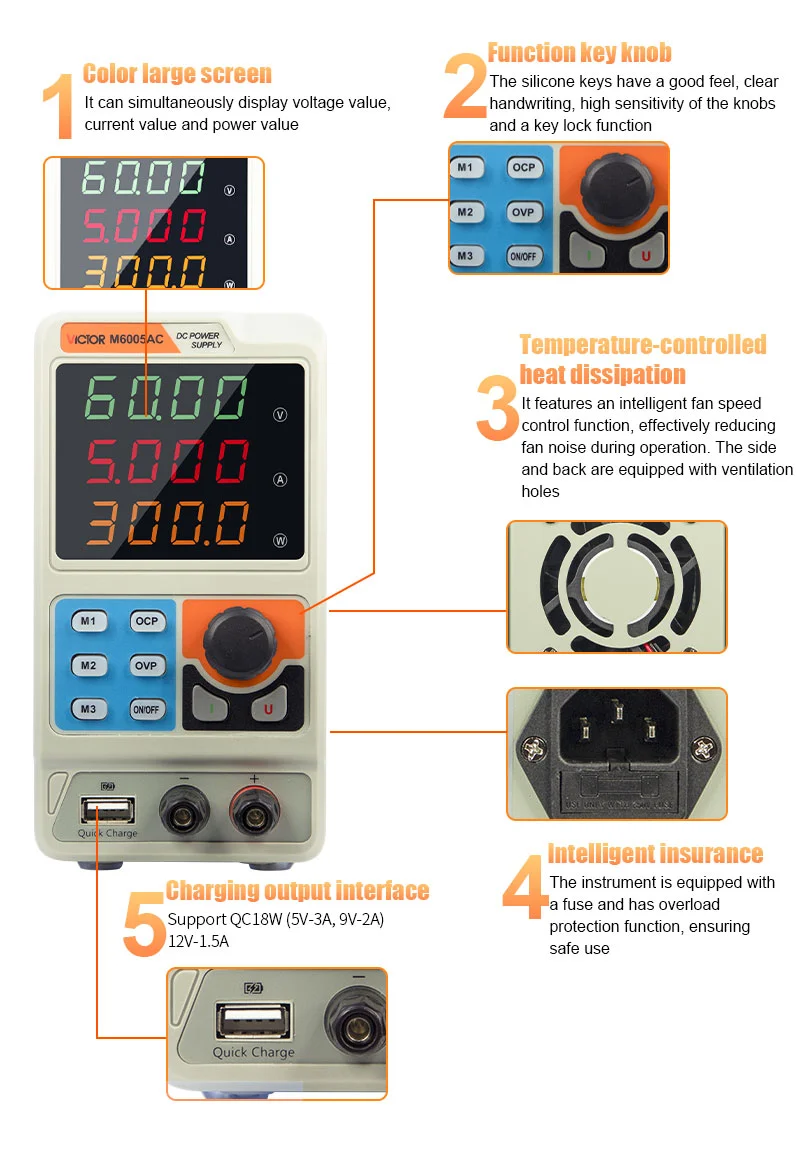

Intelligent fan – Temperature-controlled fan speed for low noise and extended fan lifespan
-
Intelligent anti-burning – Built-in protection against damage from improper use or connection errors
-
USB charging port – Convenient USB port for charging external devices directly from the power supply
-
Quick charge support – Labeled "Quick Charge" for fast charging applications
-

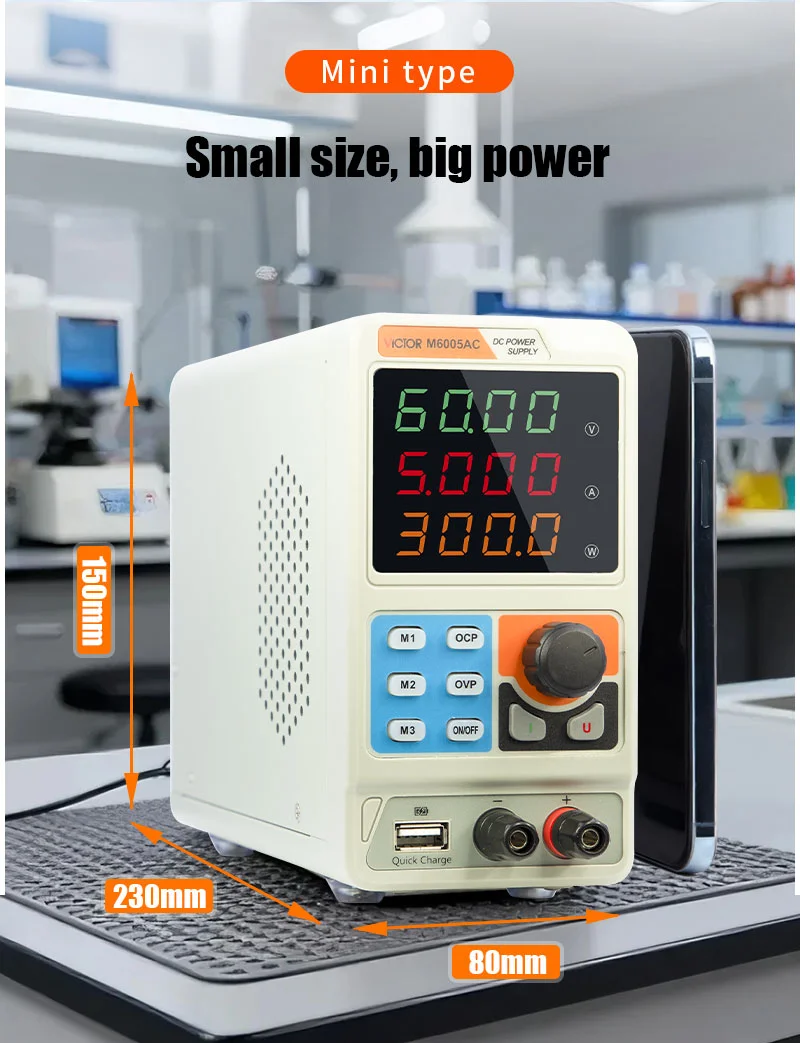

Compact and lightweight – Mini size, ideal for benchtop, portable, and educational use
-
Wide operating conditions – Working temperature: 0-40°C, humidity ≤80%RH
-
Standard AC input – AC220V±10%, 50Hz
