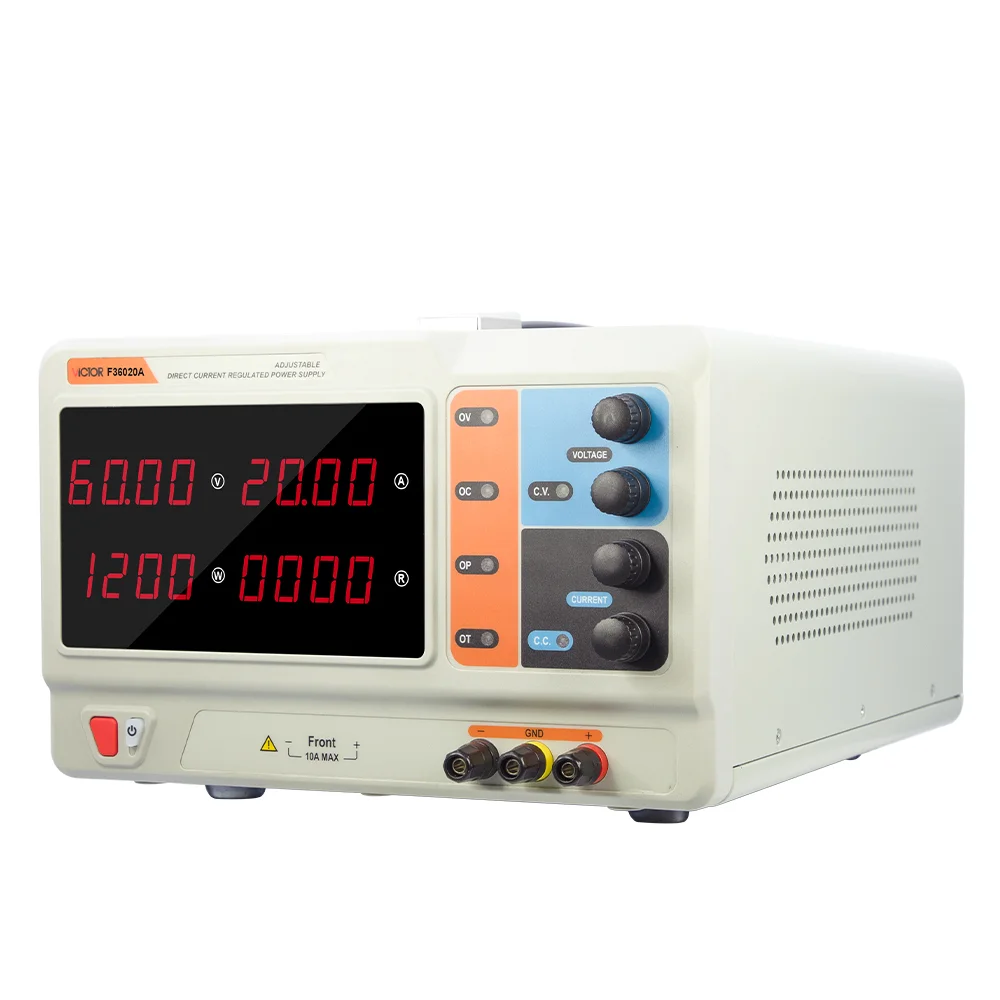

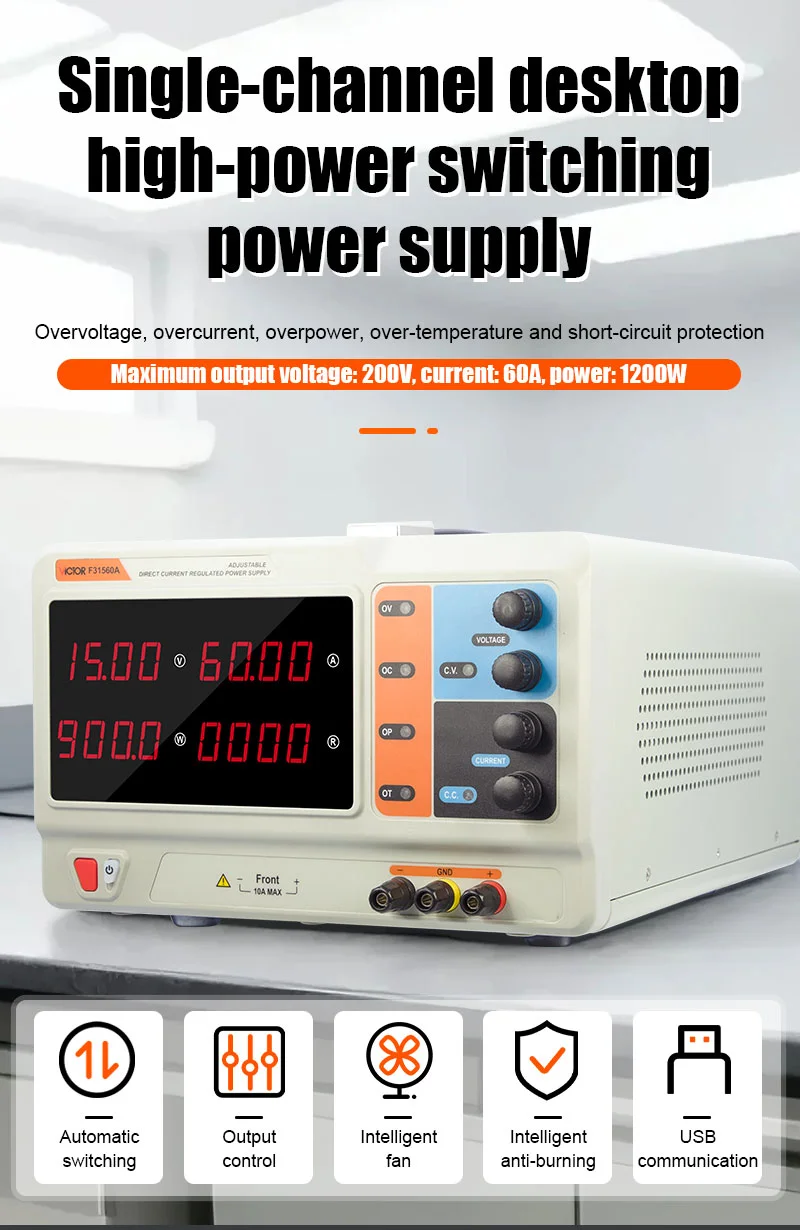

Single Channel High Power Switching Power Supply

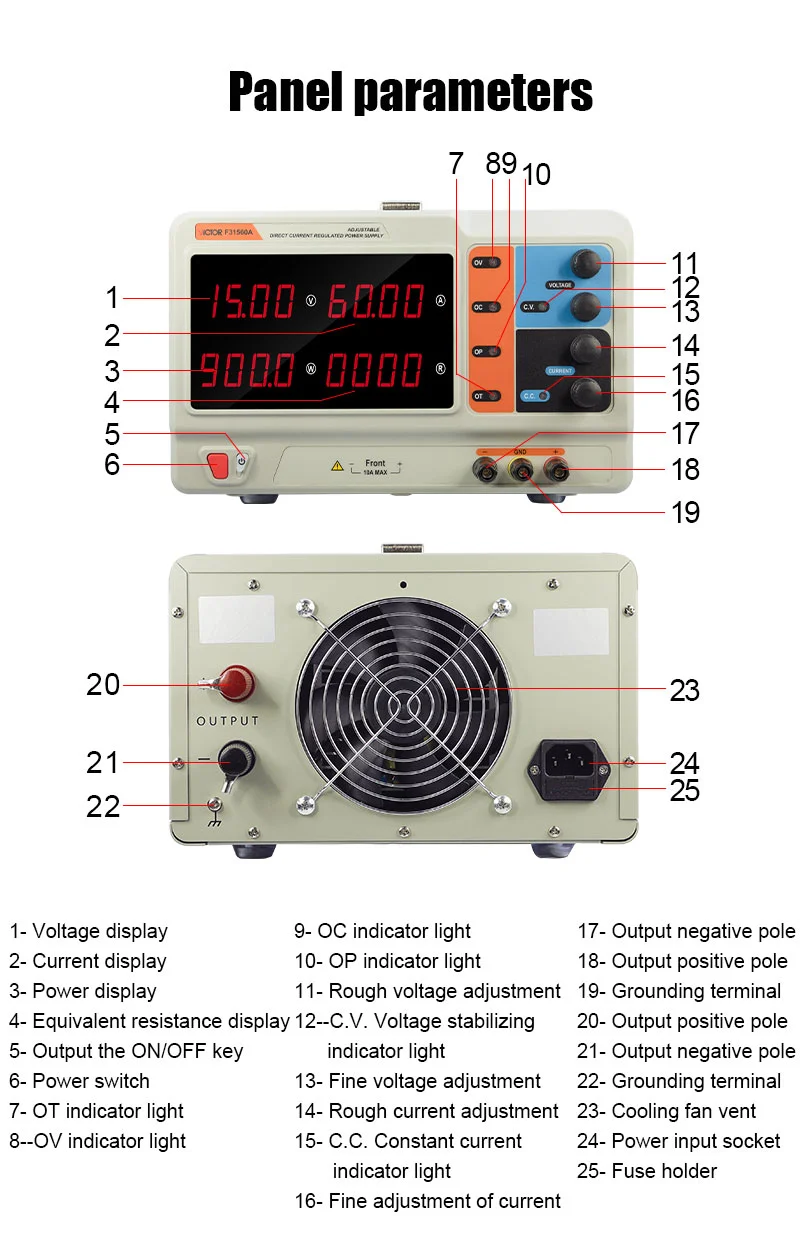

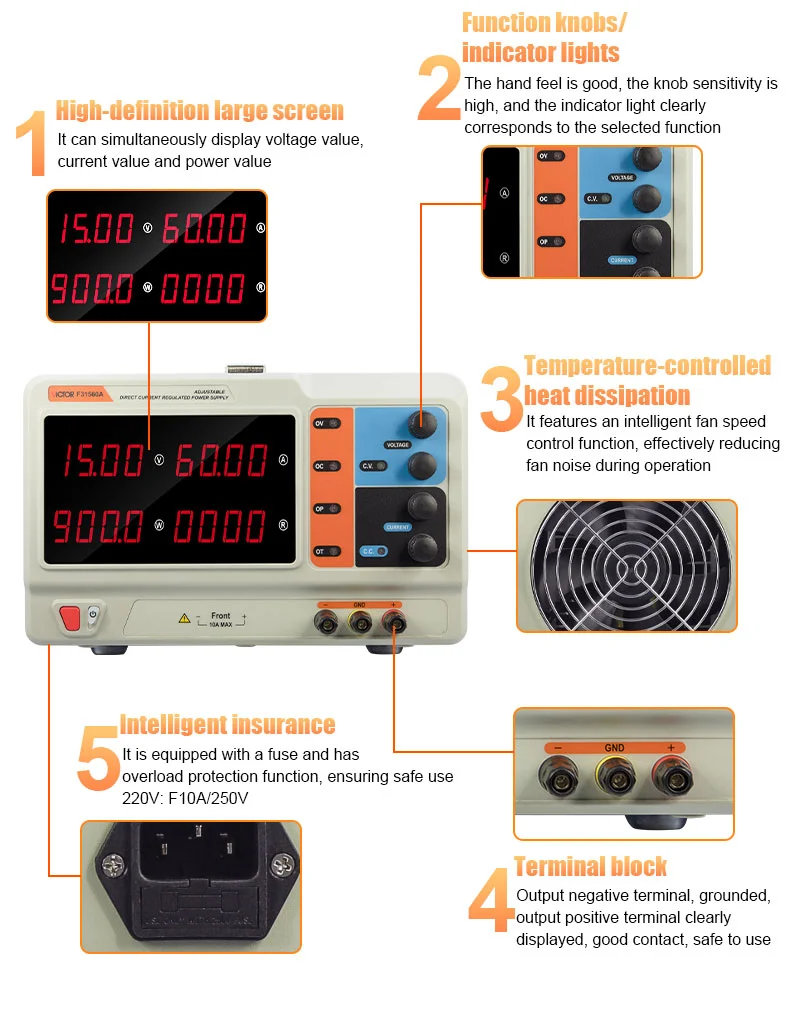

Comprehensive LED display – Simply shows voltage, current, power, and output equivalent resistance simultaneously

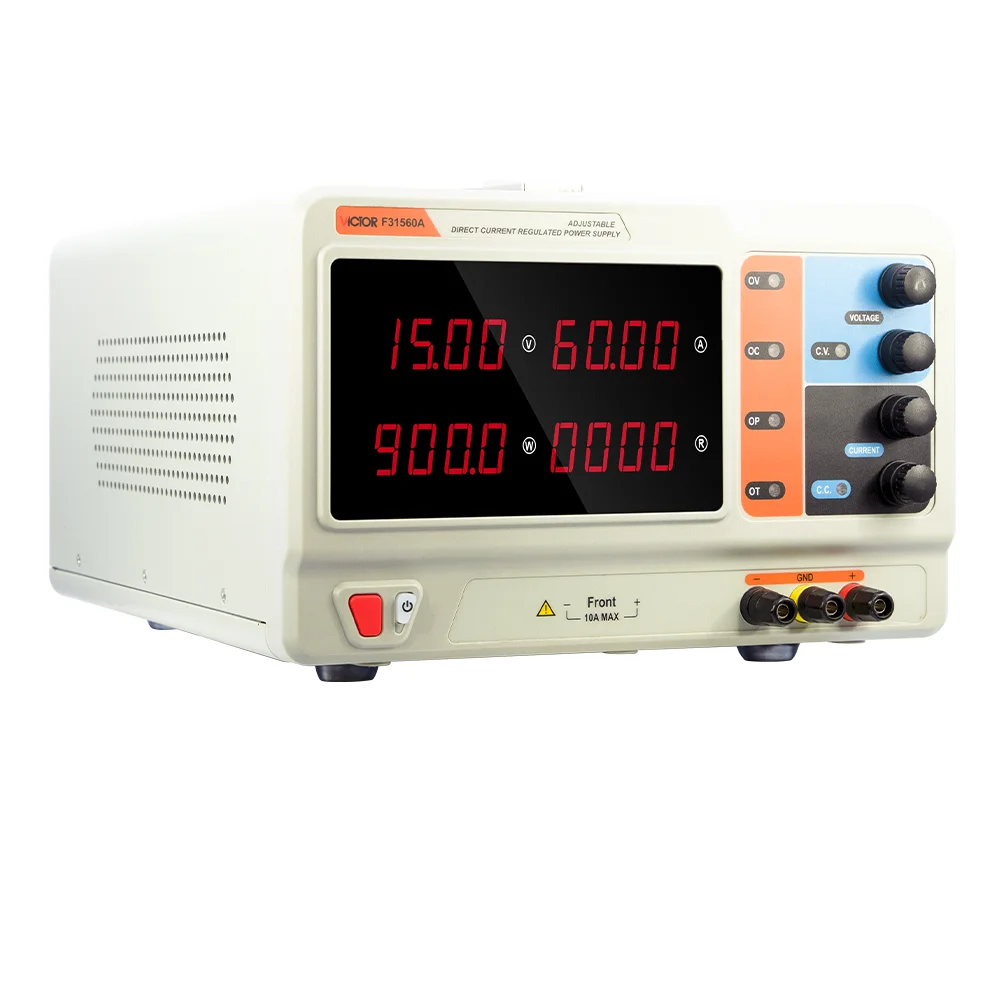

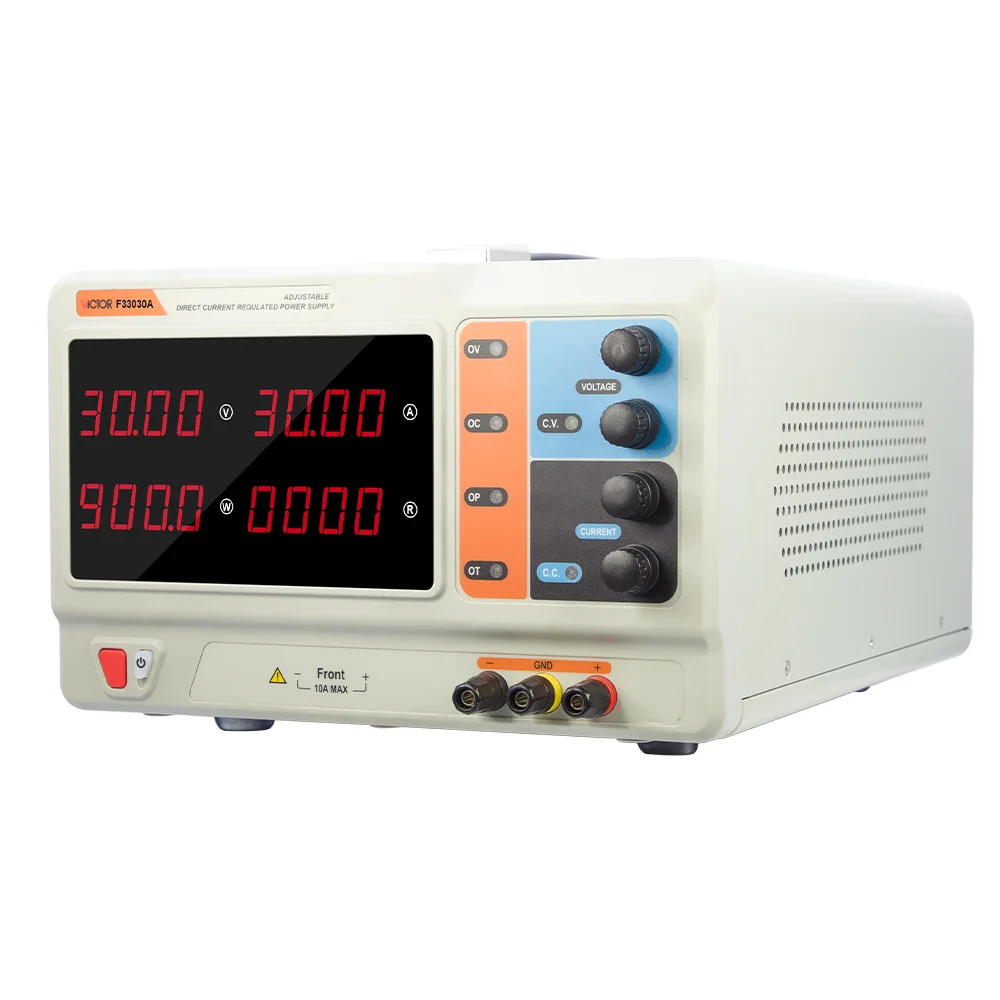

Wide model range – Available in five models: F31560A (0-15V/60A/900W), F33030A (0-30V/30A/900W), F36020A (0-60V/20A/1200W), F31005A (0-100V/5A/500W), and F32005A (0-200V/5A/1000W)

High resolution – Voltage: 10mV (<100V) / 100mV (≥100V); Current: 10mA (<100A) / 100mA (≥100A); Power: 1mW (<10W) / 10mW (≥10W) / 0.1W (≥100W) / 1W (≥1000W); Resistance: 1mR (<10R) / 10mR (≥10R) / 0.1R (≥100R) / 1R (≥1000R)

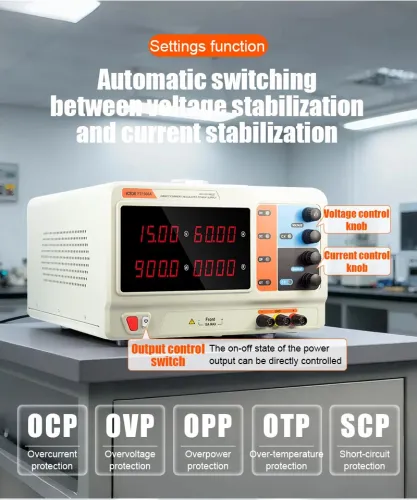

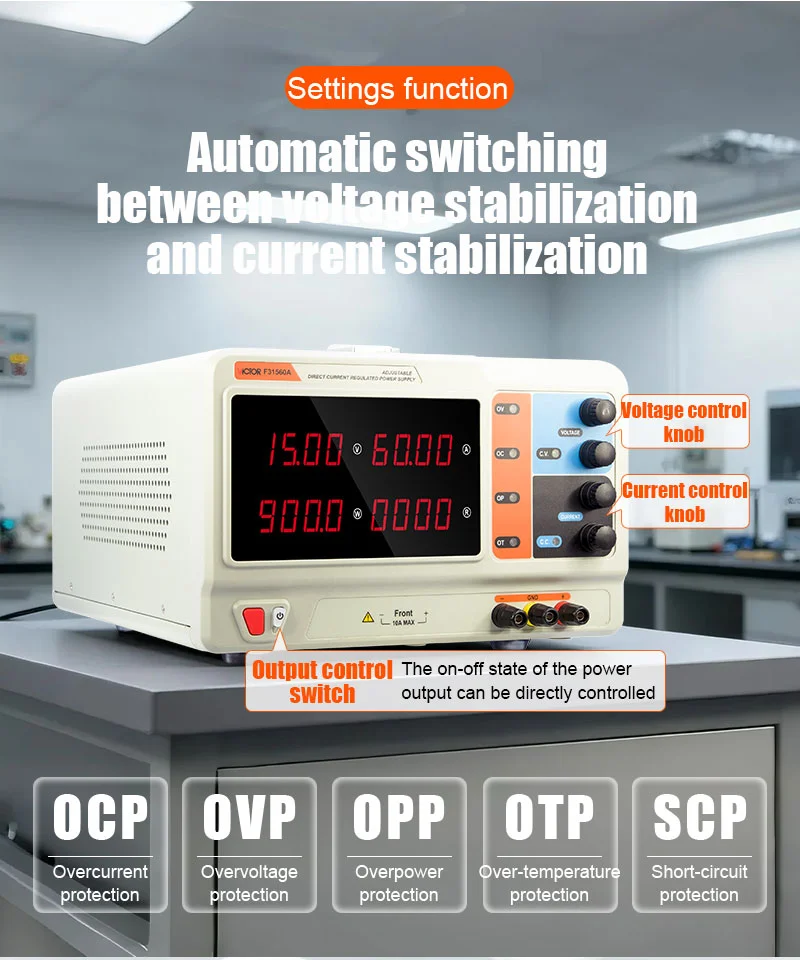

Automatic CV/CC switching – Seamless transition between constant voltage and constant current stabilization based on load conditions

Output control switch – Provides flexible on/off control without disconnecting the load

Full protection – Overvoltage, overcurrent, overpower, overtemperature, and short-circuit protection for safe operation

User-friendly interface – Convenient and fast operation interface for easy setup and adjustment

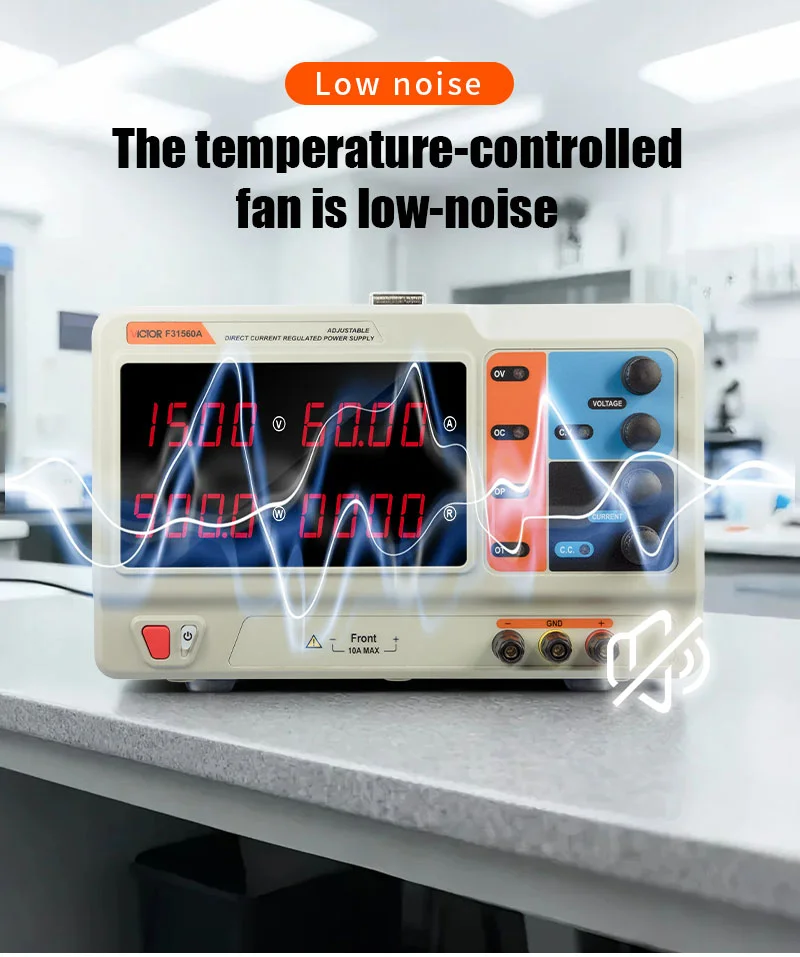

Temperature-controlled fan – Adjusts fan speed automatically for low noise operation and extended fan lifespan

Preset while off – Voltage and current can be pre-designed while output is off for safe and convenient setup

Multiple communication interfaces – Equipped with RS232, RS485, and USB for remote control and automation

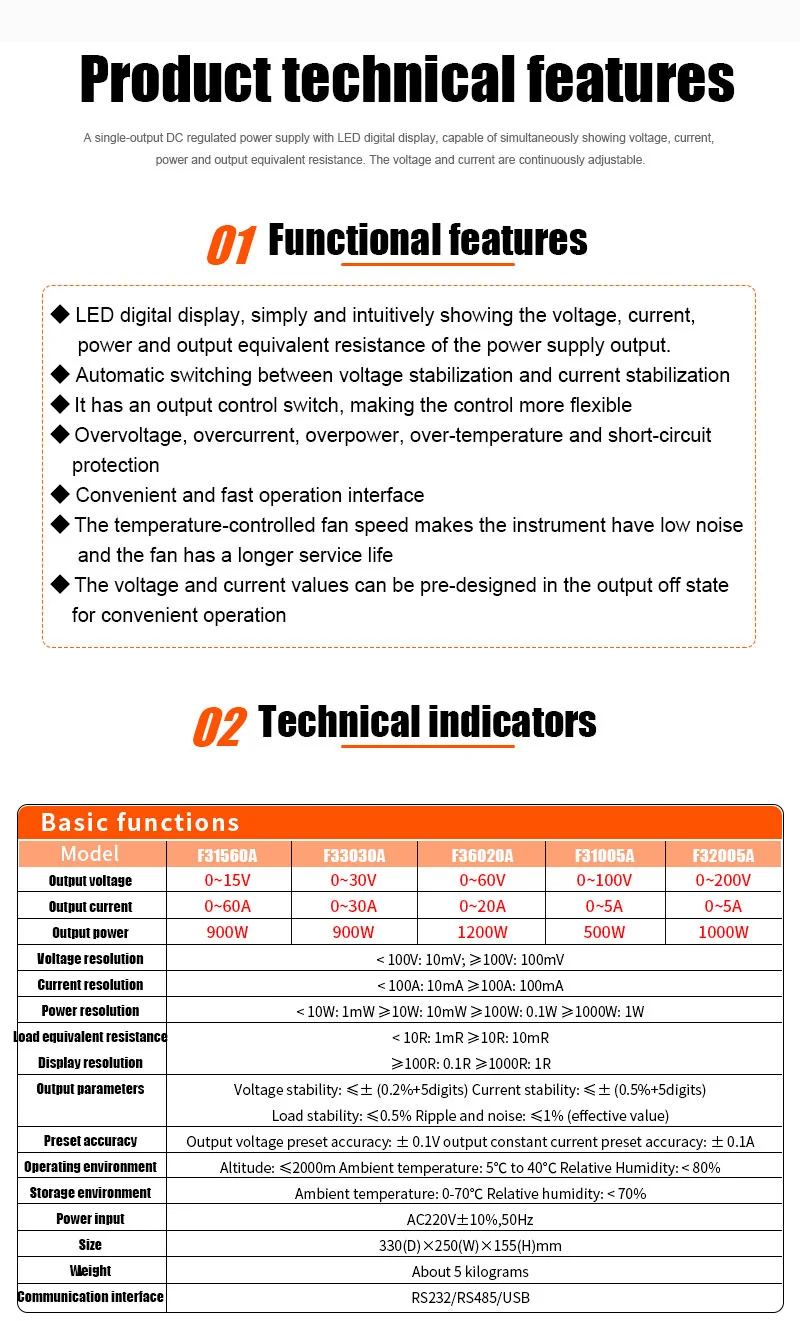

Solid specifications – Voltage stability ≤±(0.2%+5 digits), current stability ≤±(0.5%+5 digits), load stability ≤0.5%, ripple & noise ≤1% (RMS)

Preset accuracy – Output voltage preset accuracy: ±0.1V; output constant current preset accuracy: ±0.1A

Compact and portable – Dimensions: 330×250×155mm, weight only about 5kg

Wide operating environment – Altitude ≤2000m, temperature 5-40°C, humidity <80%
