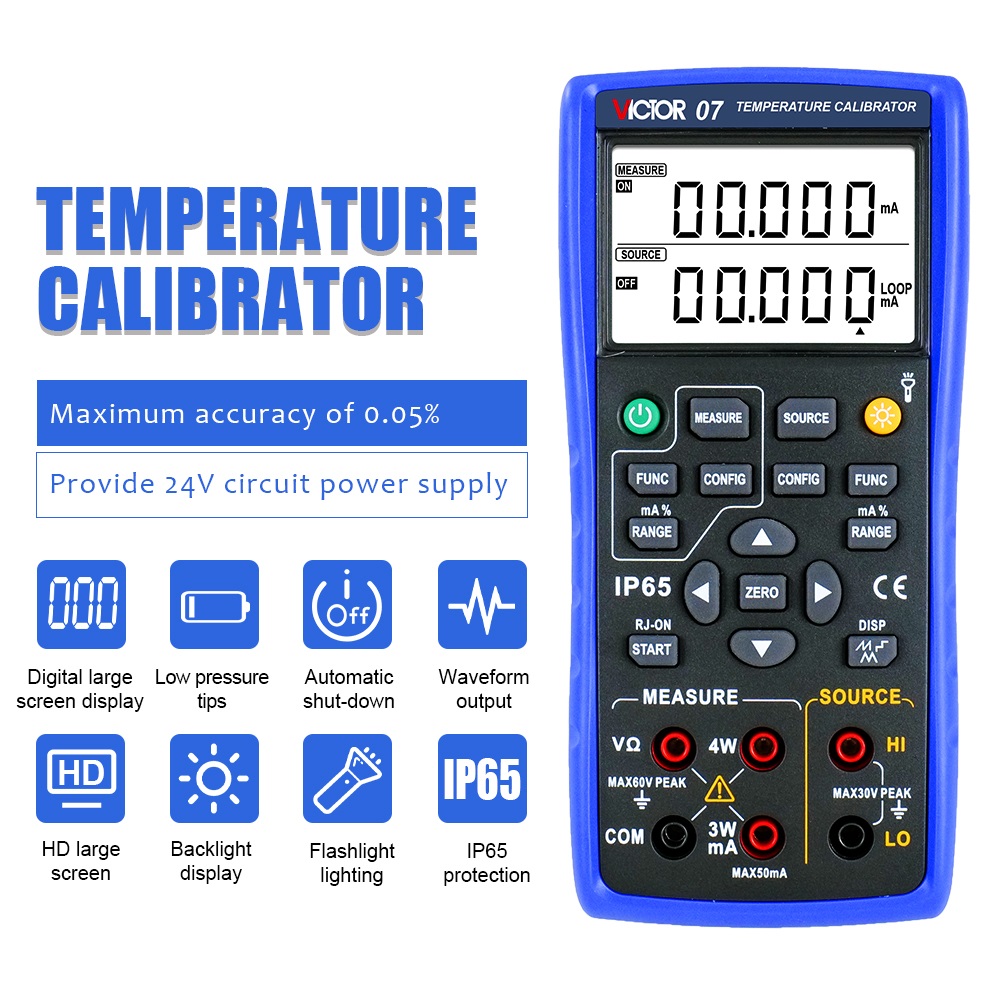

Features |
|
|
Model |
07 |
|
Simulating transmitter |
√ |
|
25%, 100% step output |
√ |
|
Automatic ramp |
√ |
|
Automatic step |
√ |
|
Display current and % of span |
√ |
|
The 24V loop power supply and measuring the current |
√ |
|
°C/ °F conversion |
√ |
|
Auto Power-off |
√ |
|
Backlight |
√ |
|
General Information |
|
| Model | 07 |
|
Power Supply |

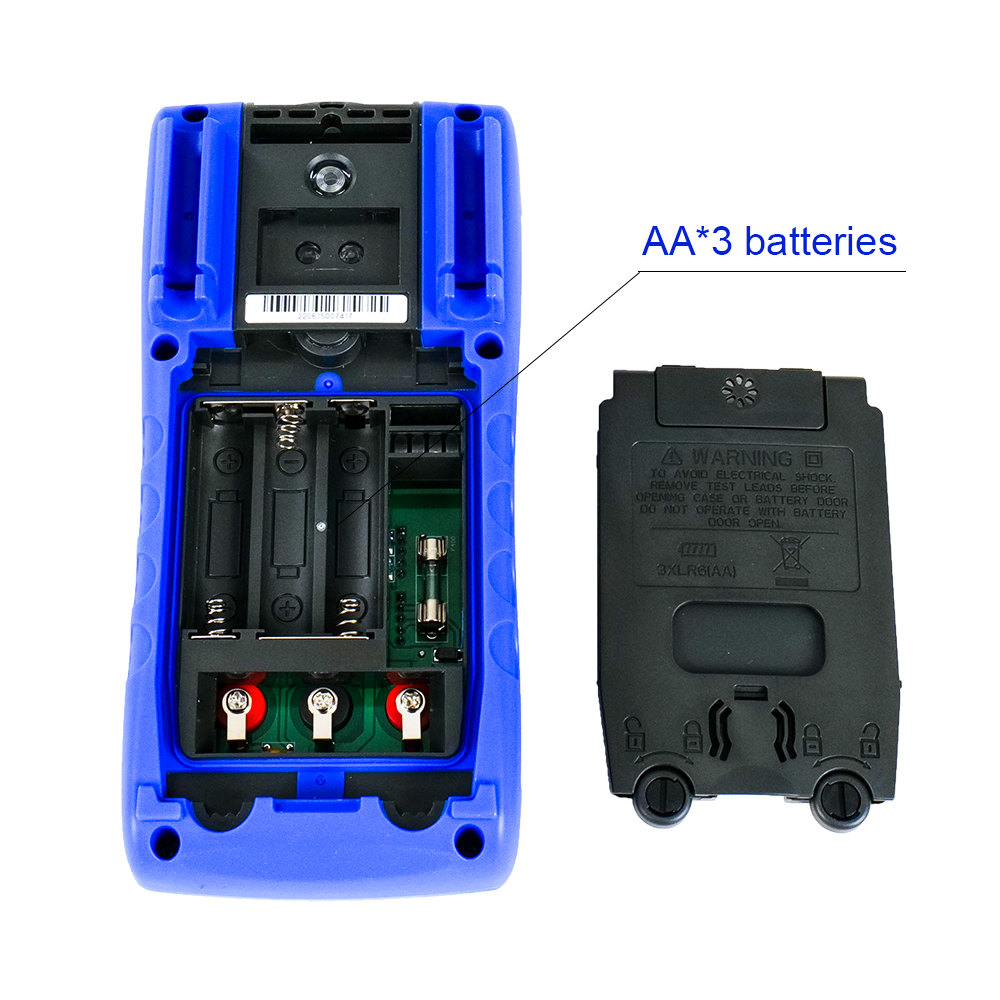

3xAA batteries |
|
Product Size |

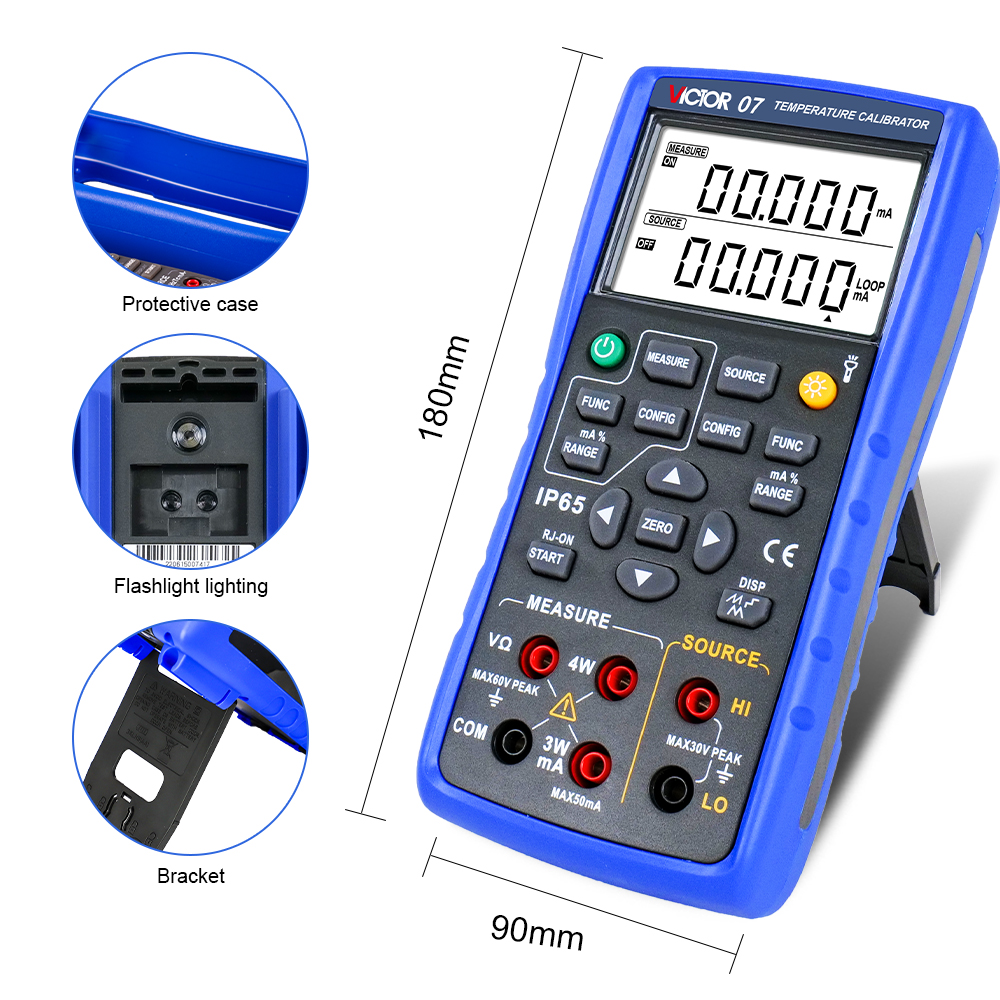

180*90*52mm |
|
Product Weight |
About 1kg |
|
Standard Accessories |

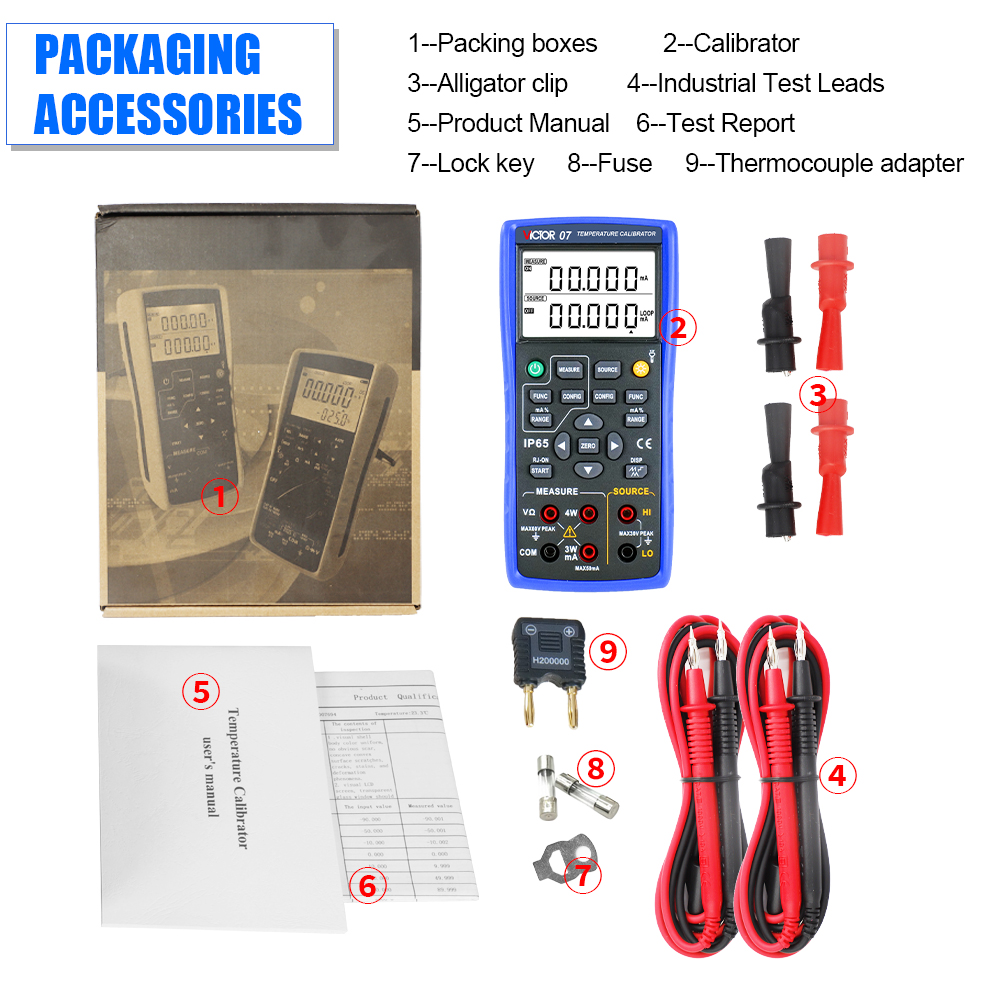

Test leads, manual, alligator clips, fuse, lock key, thermocouple adapter, test report |
|
Specifications |
|||
|
Measurement function |
Range |
Resolution |
Basic accuracy |
|
DC voltage |
100mV, 1V, 35V |
0.01mV, 0.1mV, 1mV |
0.05%+0.03mV |
|
Resistance(2W, 3W, 4W) |
500Ω, 5KΩ |
0.01Ω, 0.1Ω |
0.05%+0.2Ω |
|
DC current |
30mA |
0.001mA |
0.02%+4uA |
|
Thermocouple |
E, K, J, T, N, R, S, B, A, C, D |
0.1°C, 1°C |
0.7°C |
|
RTD(2W, 3W, 4W) |
Cu50, Pt100, Pt200, Pt500, Pt1000 |
0.1°C |
0.3°C |
|
Output (source) function |
|||
|
DC voltage |
100mV, 1V, 10V |
0.01mV, 0.1mV, 1mV |
0.05%+0.03mV |
|
Resistance |
400Ω, 4000Ω |
0.1Ω, 1Ω |
0.05%+0.2Ω |
|
DC current |
20mA |
0.001mA |
0.05%+4uA |
|
Thermocouple |
E, K, J, T, N, R, S, B, A, C, D |
0.1°C, 1°C |
0.7°C |
|
RTD |
Pt100, Pt200, Pt500, Pt1000, Cu50 |
0.1°C |
0.3°C |
