Specifications |
||
|
Model |
328D |
328E |
|

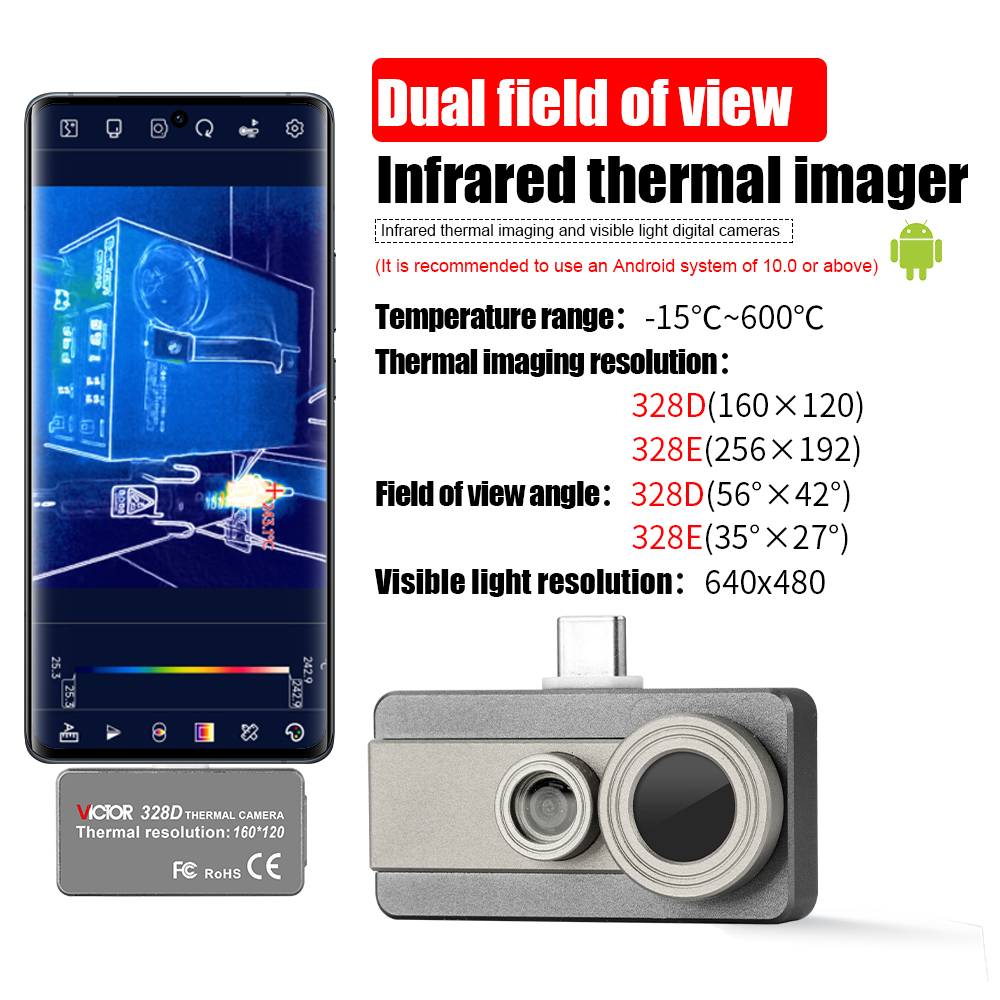

Resolution |
160x120 |
256x192 |
|
FOV |
56°X42° |
35° x 27° |
|
Temperature range |
-15℃～600℃ |
|
|
Accuracy |
± 2 ° C or ± 2% |
|
|
Wavelength |
8-14μm |
|
|
Frame rate |
25Hz |
|
|
NETD |
＜50mK @25℃ |
|
|
Lens |
3.2mm |
|
|
Visible light resolution
|
640x480
|
|
|
Visible light frame rate
|
25Hz
|
|
|
Features |
|
|
Model |
328D 328E |
|
Temperature mode |
Highest, lowest, center and regional temperature measurement are supported
|
|
6 Color palettes |
Iron, white hot, black hot, rainbow, red hot, cold blue |
|
Temperature unit |
Celsius (°C), Fahrenheit (°F), Kelvin (K) |
|
Temperature alarm |
√ |
|
Infrared camera and visible light camera image fusion |
√ |
|
Photos and videos recording |
√ |
|

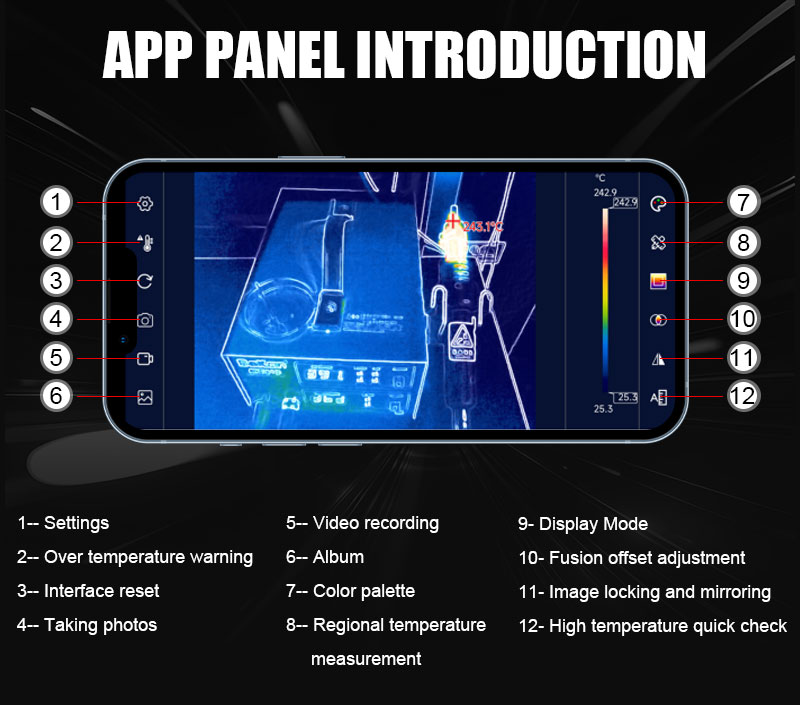

With APP for data analysis and control |
√ |
|
Settable alarm |
√ |
|
Language |
English |
|
Working temperature |
-10°C - 75°C |
|
Storage temperature |
-45°C - 85°C |
|
IP rating |
IP54 |
|
General Information |
|
|
Model |
328D 328E |
|
Power supply |
USB-type C |
|
Product color |
Black + silver |
|
Product size |
51.6mm x 34mm x 13.2mm |
|
Product weight |
22g |
|

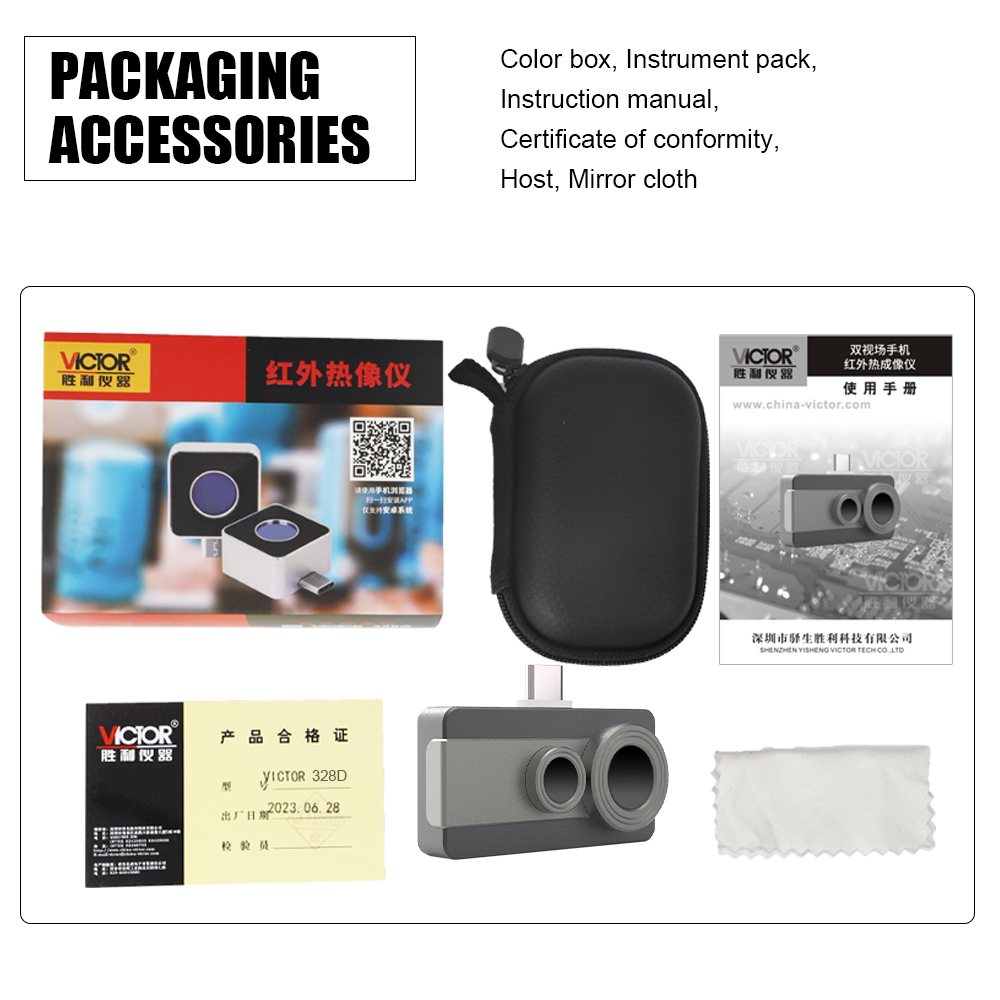

Standard accessories |
Manual, cleaning cloth, pouch |
